Engine Block: Components

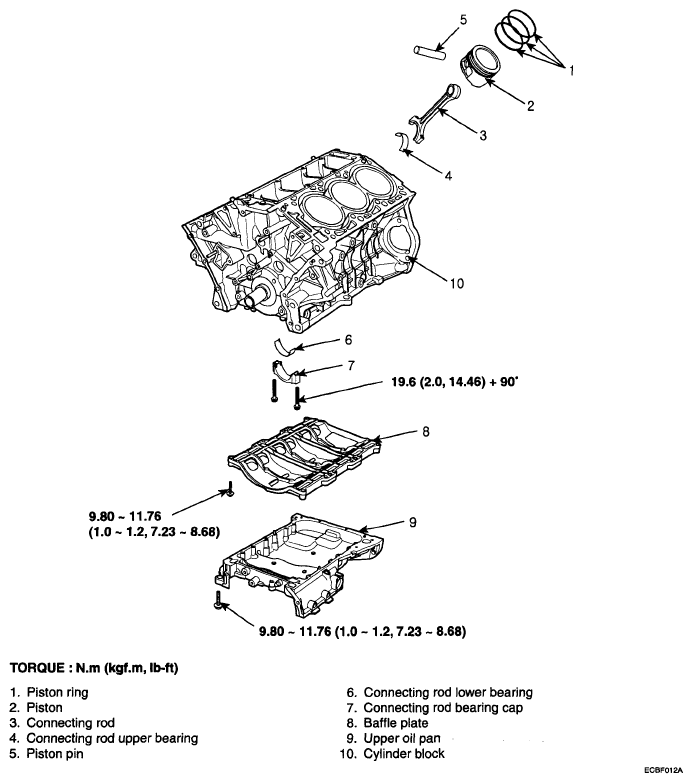

Fig 1: Exploded View Of Engine Block Components With Torque Specification (1 Of 2)
G04879573Courtesy of HYUNDAI MOTOR CO.

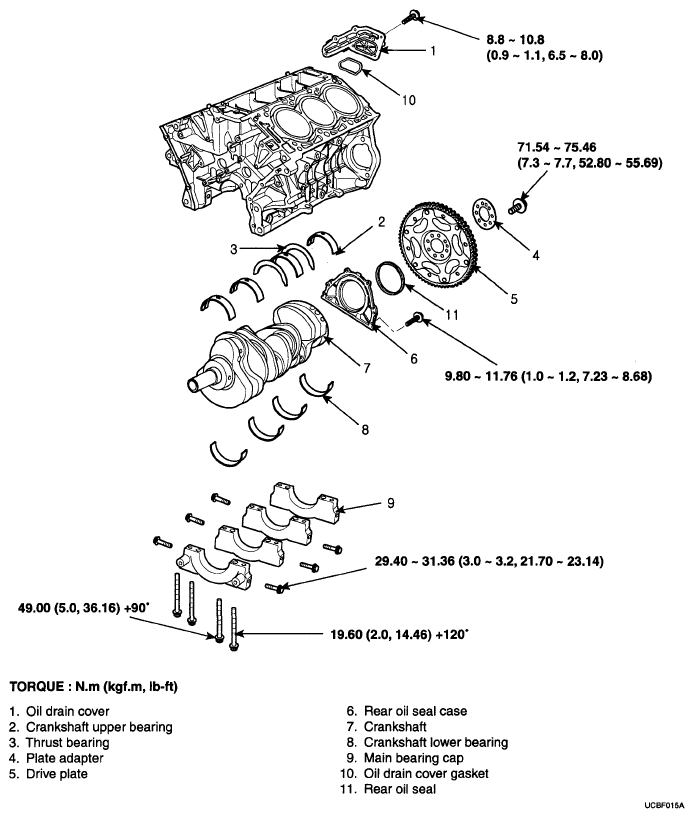

Fig 2: Exploded View Of Engine Block Components With Torque Specification (2 Of 2)
G04879574Courtesy of HYUNDAI MOTOR CO.
