Fuel Pressure Sensor: Specifications

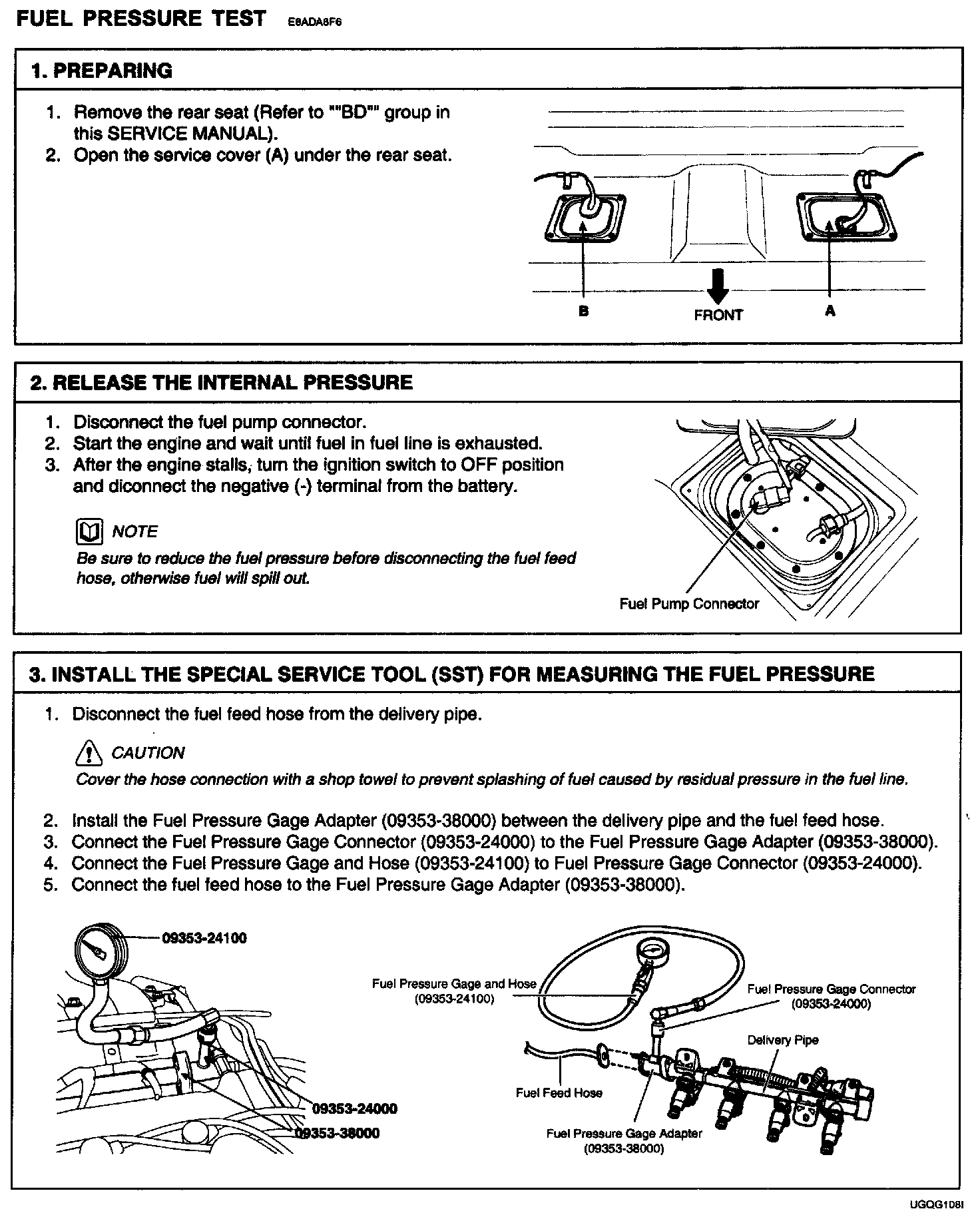

Fuel Pressure Test (Steps 1 - 3):

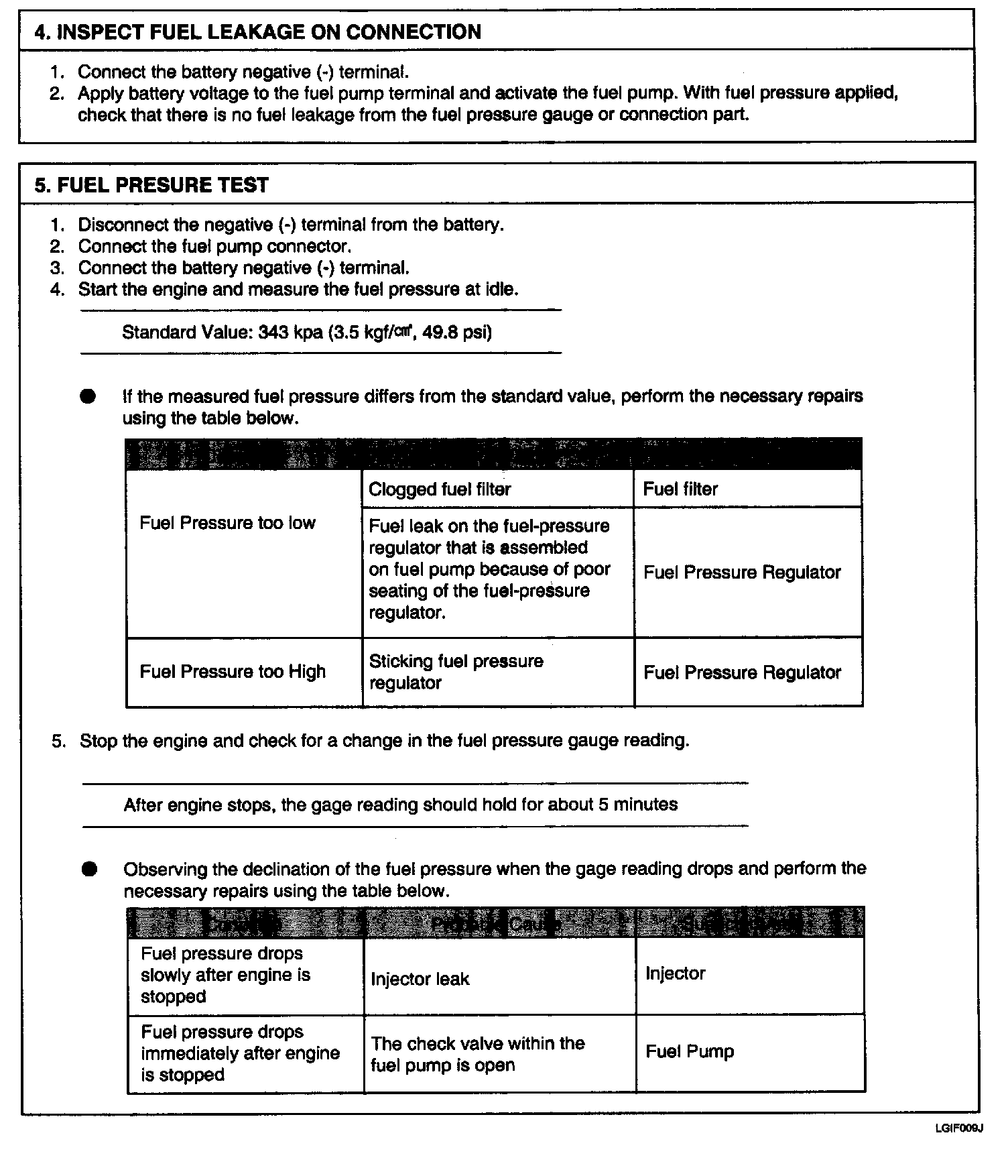

Fuel Pressure Test (Steps 4 - 5):

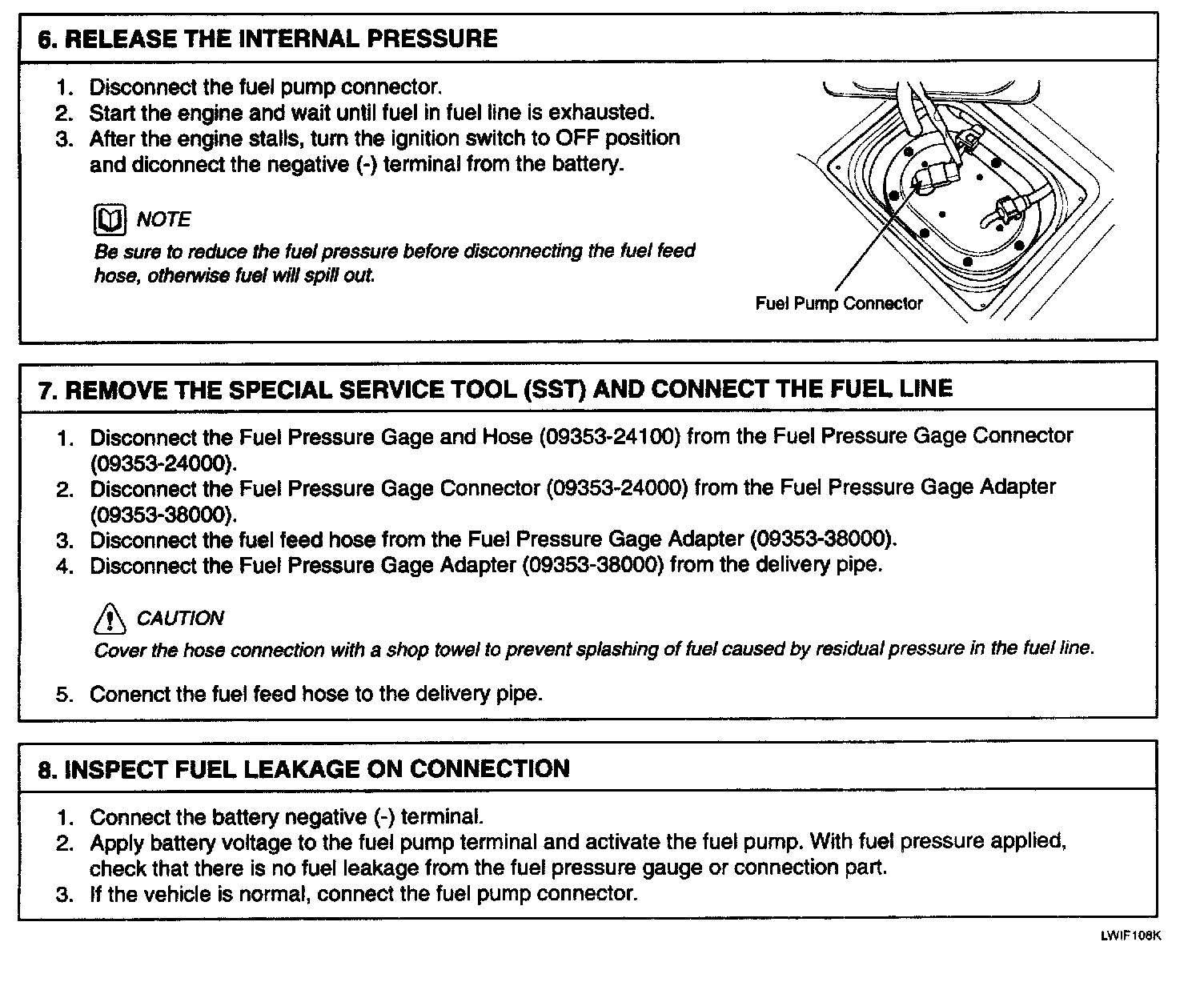

Fuel Pressure Test (Steps 6 - 8):
