Hyundai
>>
2006
>>
Tucson Limited, 4WD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System (G6BA - GSL 2.7)
>>
Fuel Delivery System
>>
Fuel Pressure Test
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Fuel Pressure Test

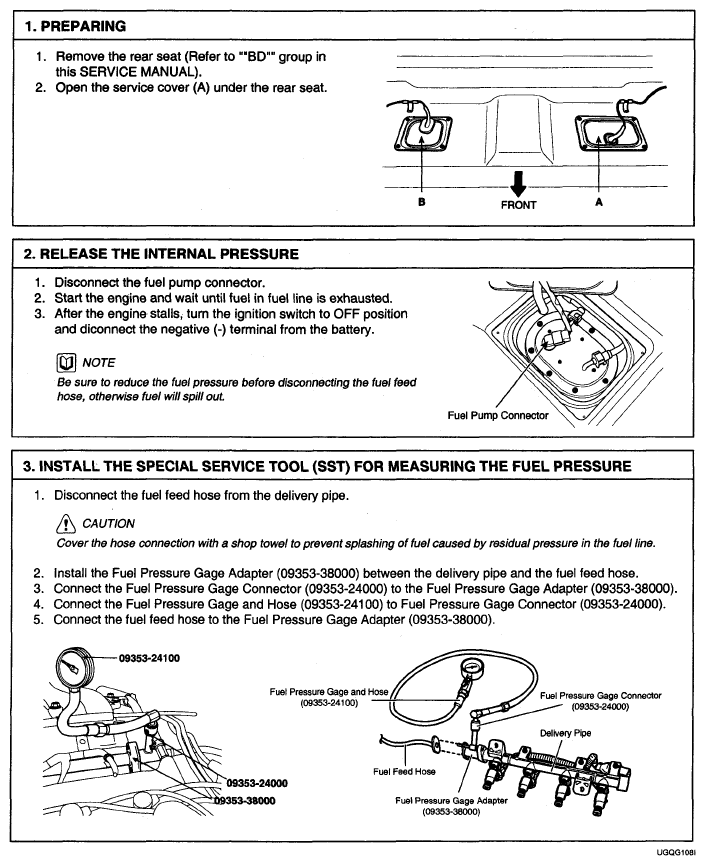

Fig 1: Fuel Pressure Test System Diagram
Courtesy of HYUNDAI MOTOR CO.
Fig 2: Fuel Leakage Test System Diagram
Courtesy of HYUNDAI MOTOR CO.
Fig 3: Identifying Fuel Pump Connector System Diagram
Courtesy of HYUNDAI MOTOR CO.
