Signal Circuit Inspection

  1. With sensor connector still disconnected, measure voltage between terminal 3 of the sensor harness connector and chassis ground.

    Specification: Approx. 5V

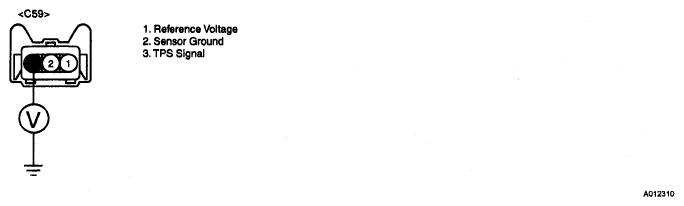

    Fig 1: Measuring Voltage Between Sensor Harness Connector And Chassis Ground
    G04810300Courtesy of HYUNDAI MOTOR CO.
  2. Is voltage within the specification?

    YES  : --> Go to "COMPONENT INSPECTION " procedure.

    NO  : --> Possibility of open or short to power in signal circuit.

    Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
