July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Engine Control Module

ECM Harness Connector:

ECM Harness Connector

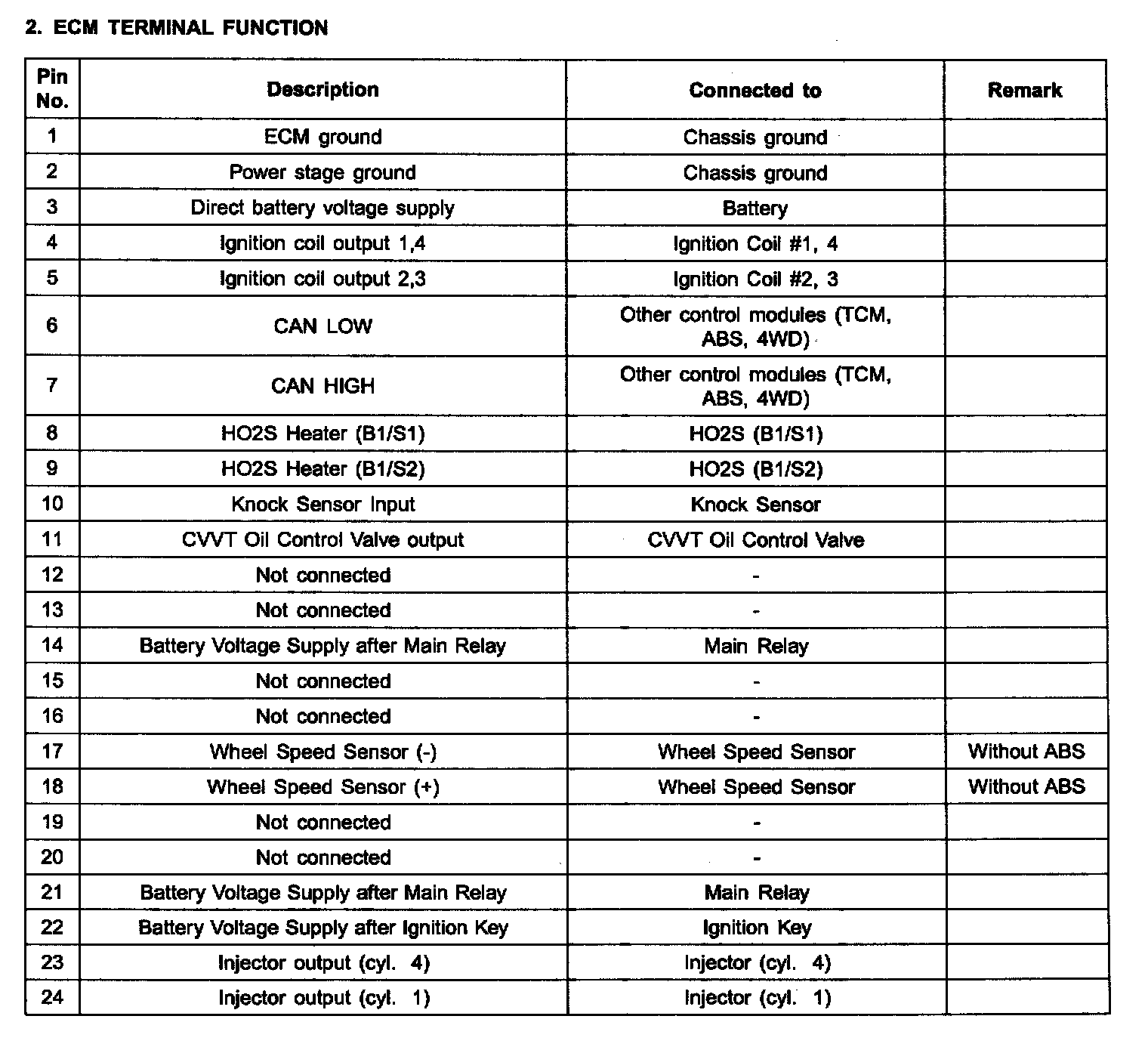

ECM Terminal Function Part 1:

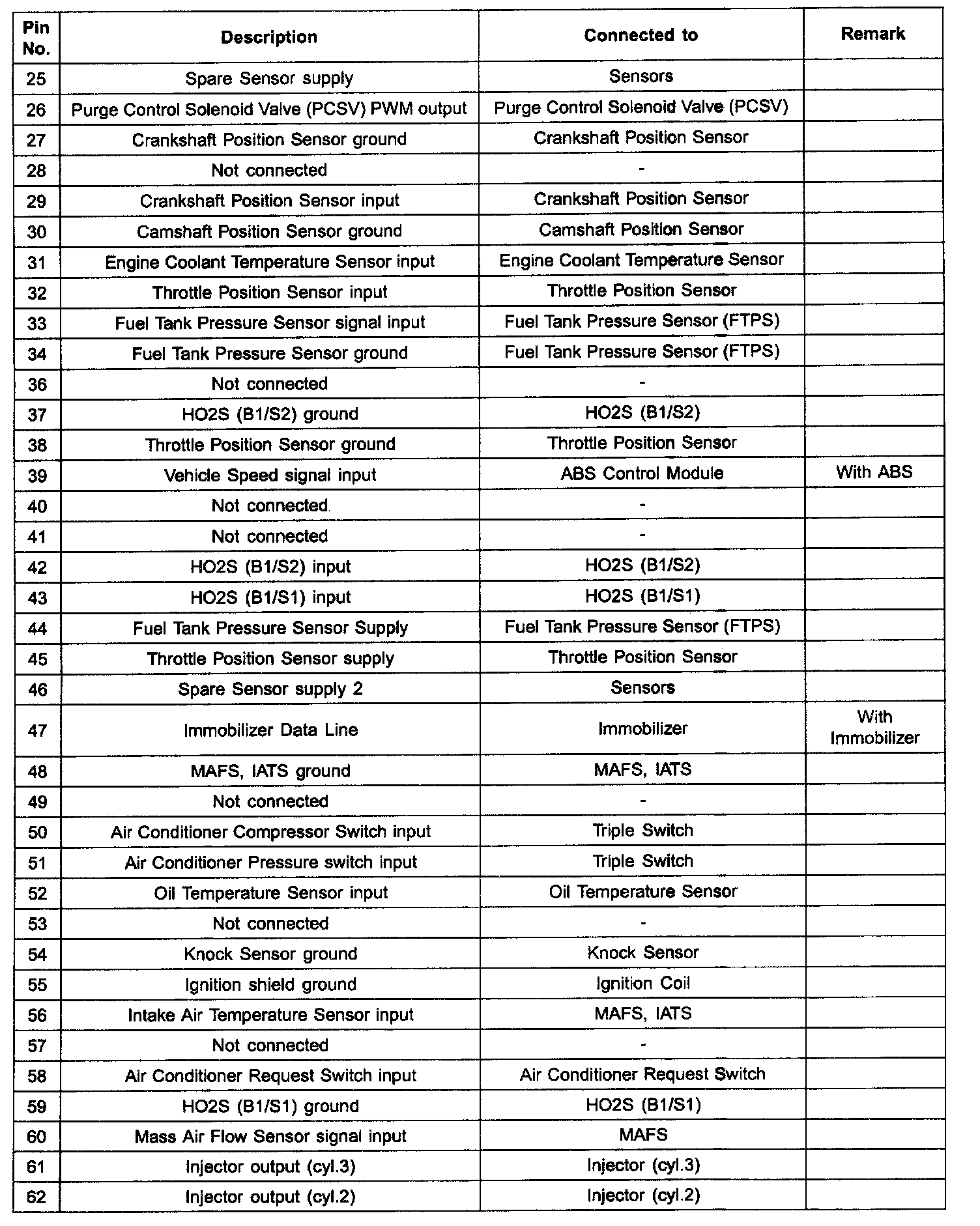

ECM Terminal Function Part 2:

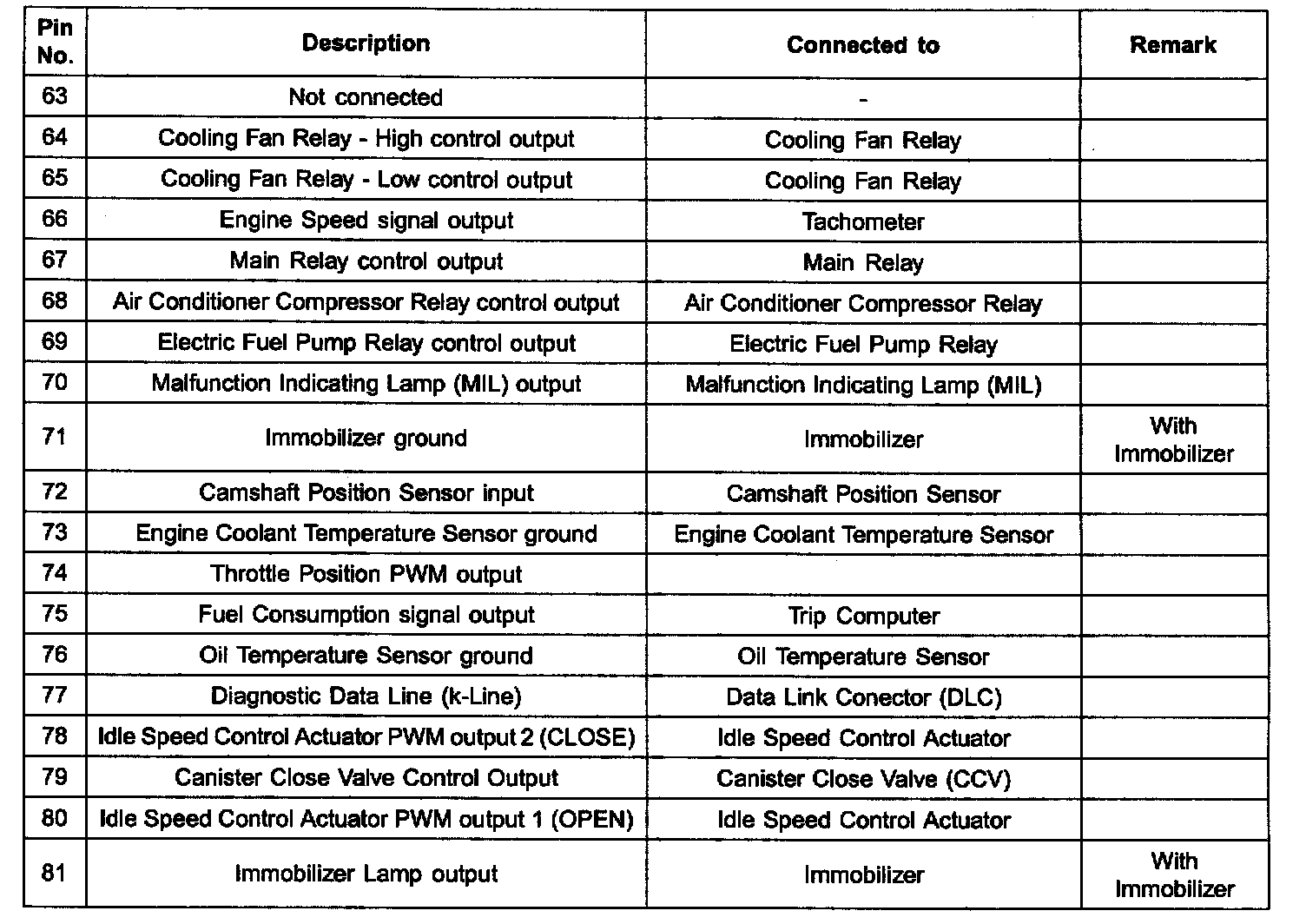

ECM Terminal Function Part 3:

ECM Terminal Function

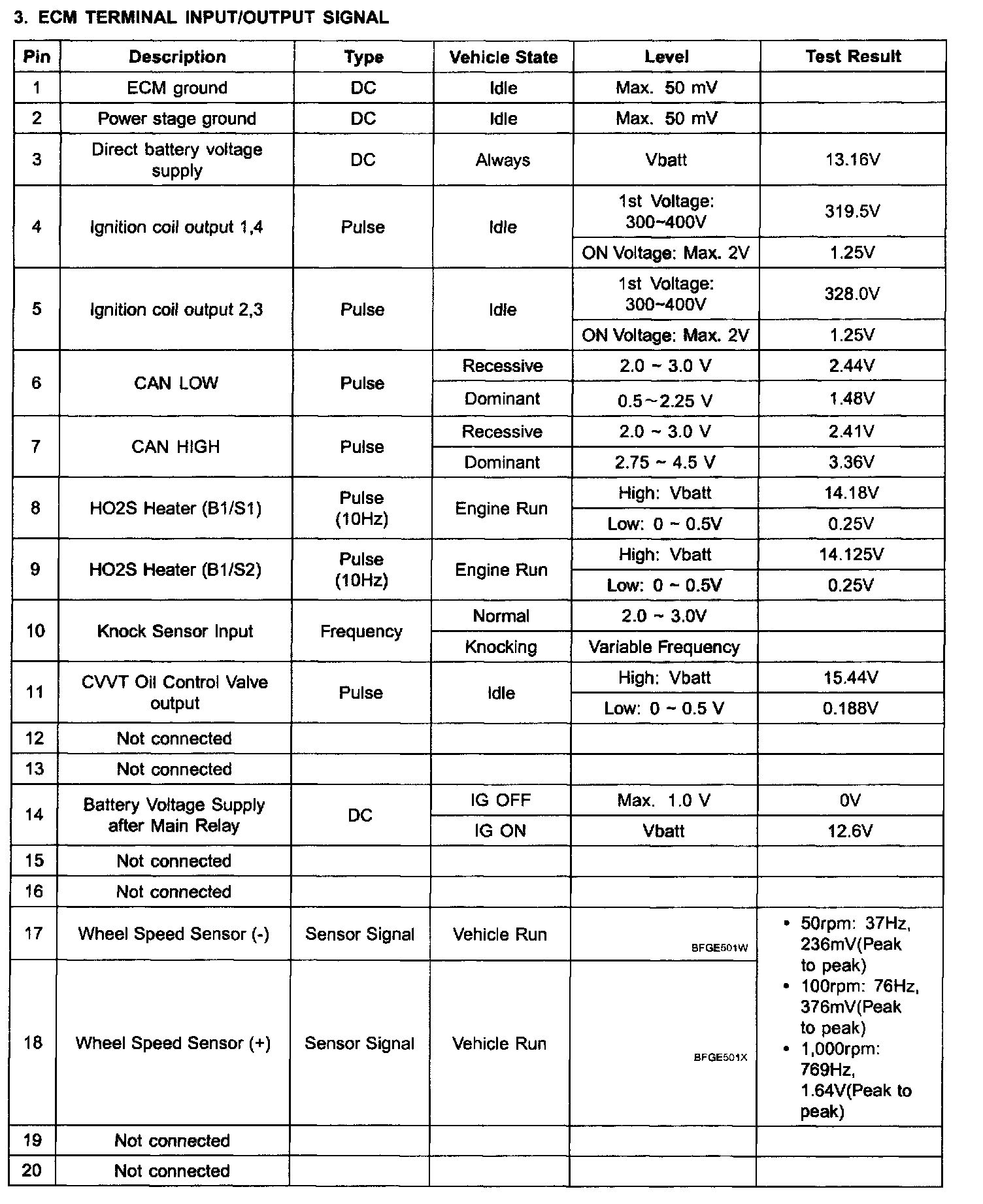

ECM Terminal Input/Output Signal Part 1:

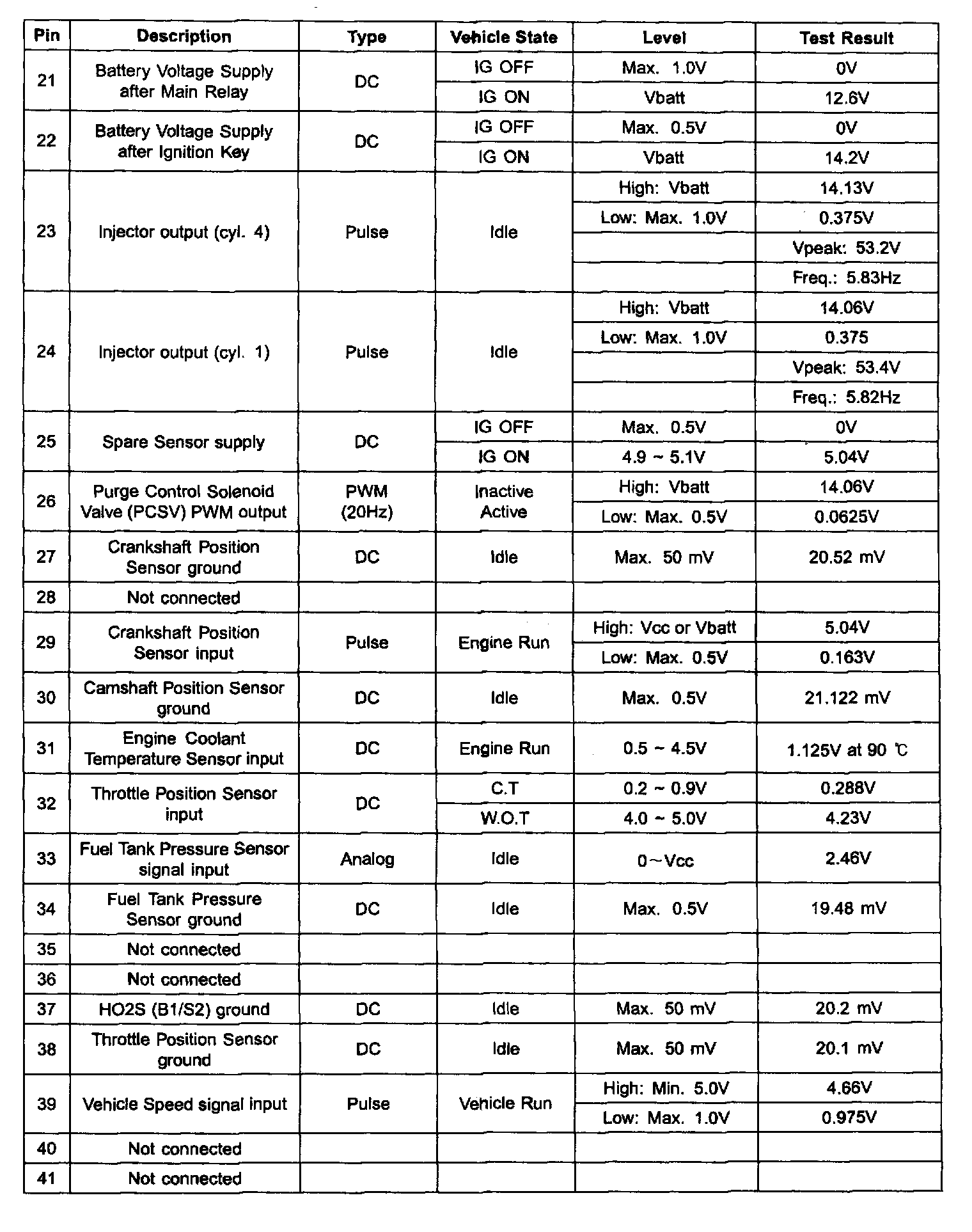

ECM Terminal Input/Output Signal Part 2:

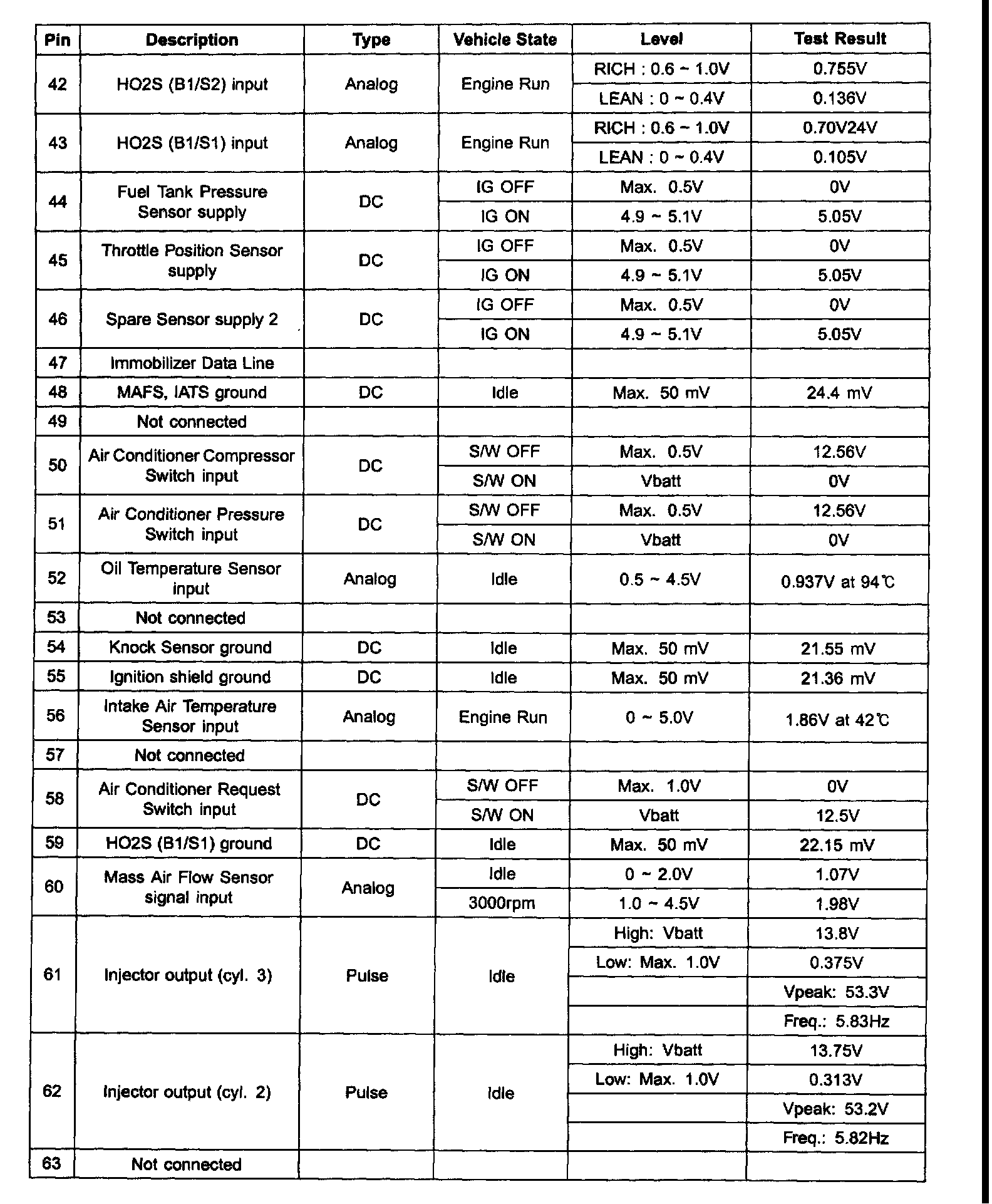

ECM Terminal Input/Output Signal Part 3:

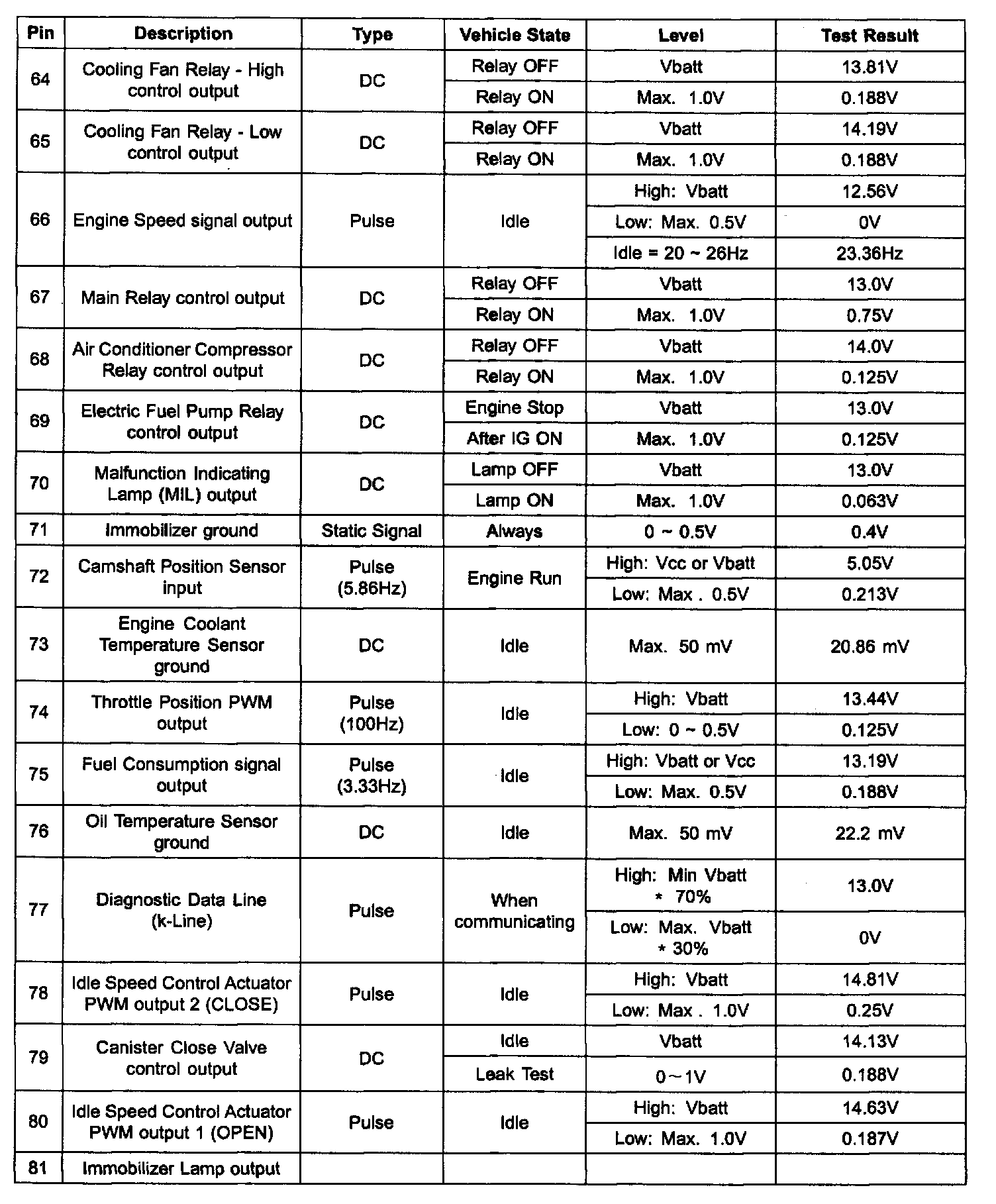

ECM Terminal Input/Output Signal Part 4:

ECM Terminal Input/Output Signal
