Components Location

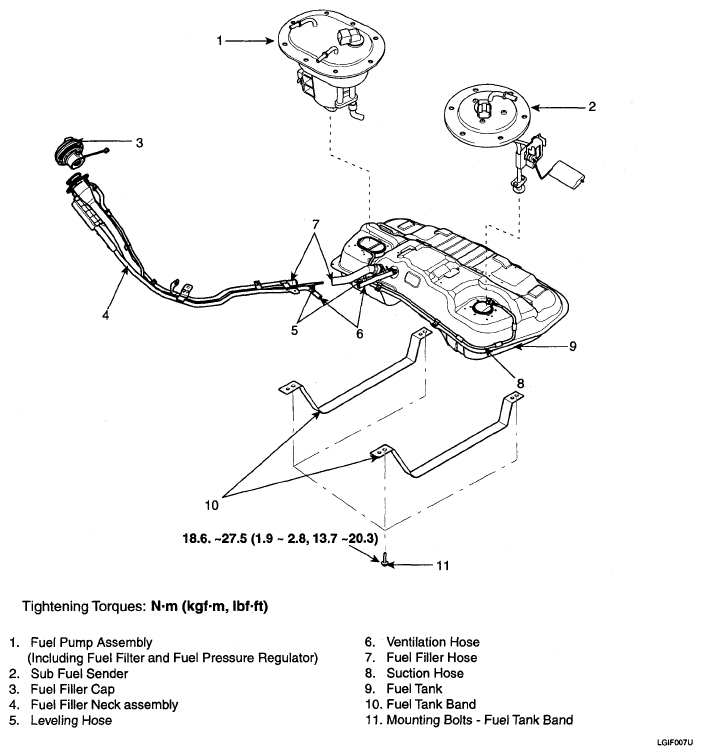

Fig 1: Identifying Fuel Delivery System Components Location
Courtesy of HYUNDAI MOTOR CO.
