DTC P0506 Idle Air Control System-Rpm Lower Than Expected
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

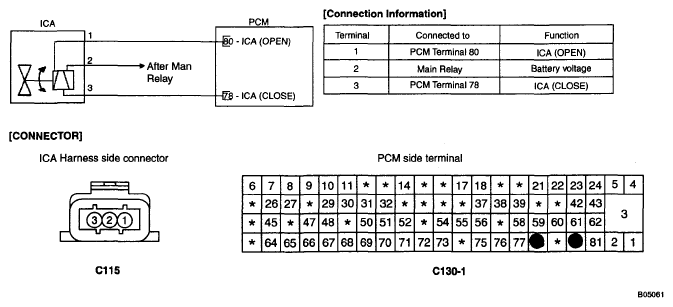

Fig 1: Idle Air Control System-RPM Lower Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
