Tailgate Glass: Components

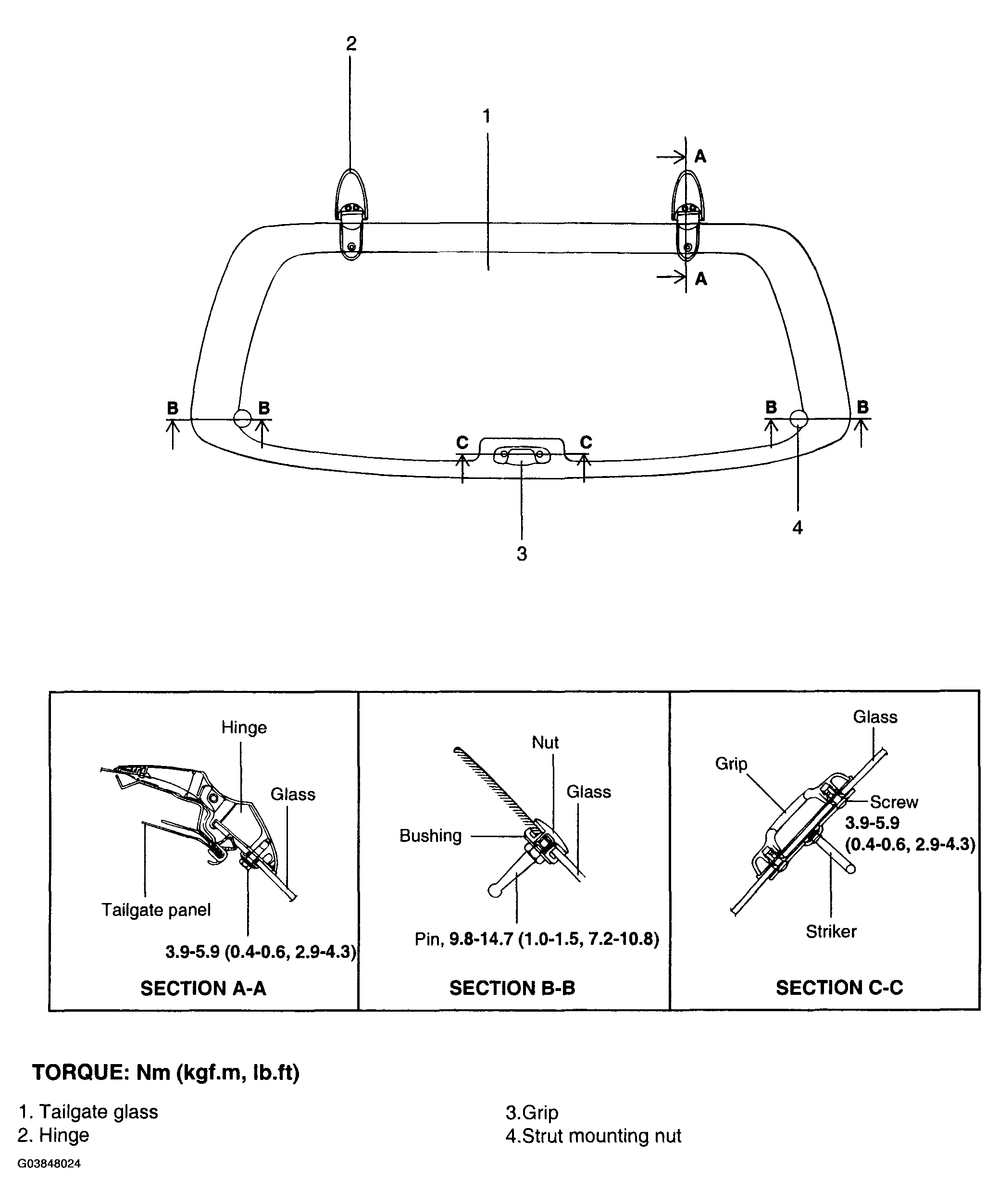

Fig 1: Tailgate Glass Replacement Components With Torque Specifications
G03848024Courtesy of HYUNDAI MOTOR CO.
