DTC P0506 Idle Air Control System-Rpm Lower Than Expected
>>
Schematic Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Schematic Diagram

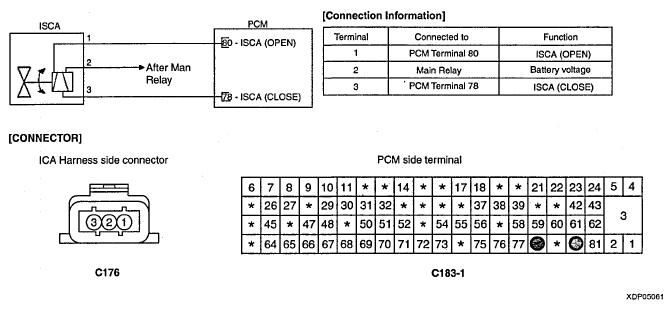

Fig 1: Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
