Ignition Switch: Inspection

  1. Disconnect the ignition switch connector and the door warning switch connector under the steering column.

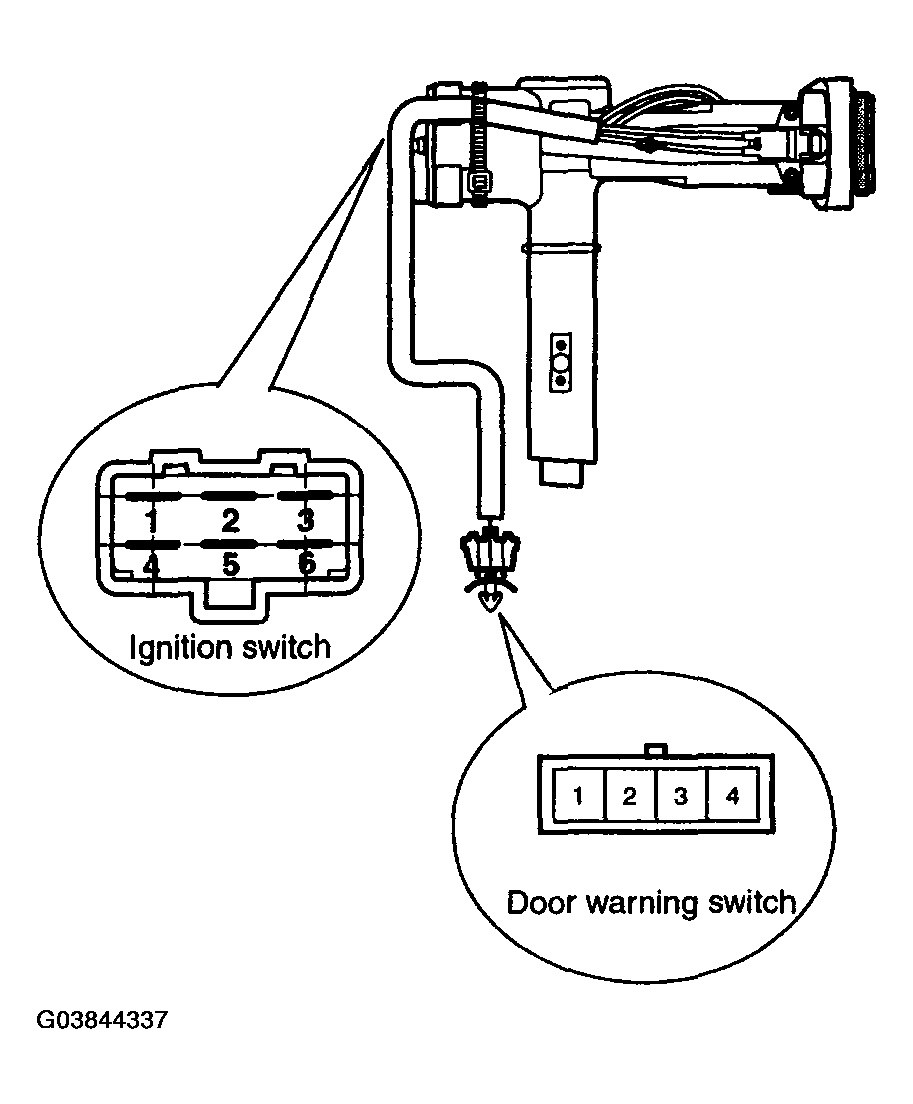

    2. Fig 1: Identifying Ignition Switch & Door Warning Switch
    G03844337Courtesy of HYUNDAI MOTOR CO.
  2. Check for continuity between the terminals.
  3. If continuity is not as specified, replace the switch.

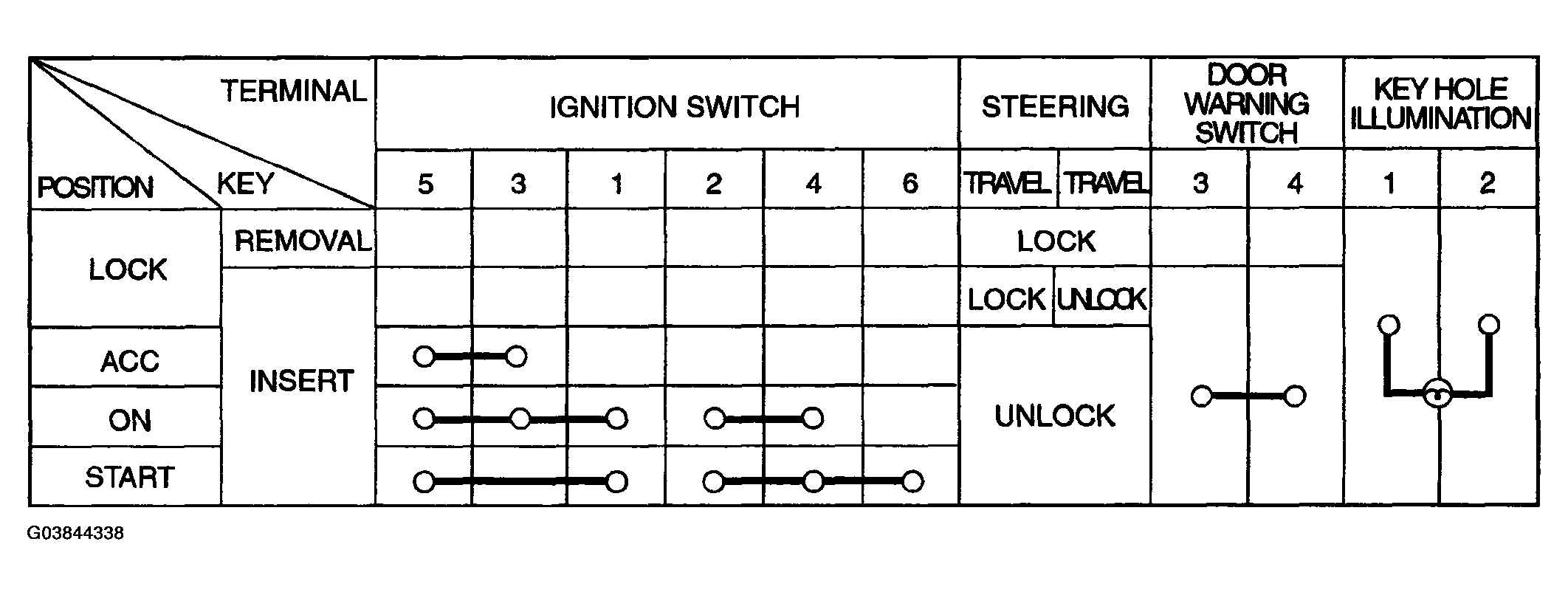

    Fig 2: Checking Ignition Switch & Door Warning Switch Continuity
    G03844338Courtesy of HYUNDAI MOTOR CO.
