DTC P0030 Ho2S Heater Control Circuit (Bank 1/Sensor 1)
>>
Schematic Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Schematic Diagram

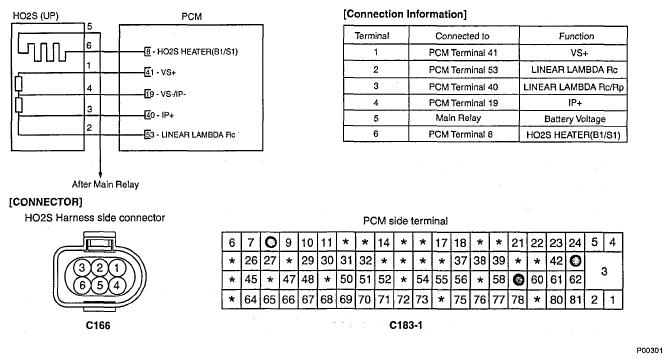

Fig 1: HO2S Heater Control Circuit Diagram (Bank 1/Sensor 1)
Courtesy of HYUNDAI MOTOR CO.
