Relay Box (Engine Compartment)

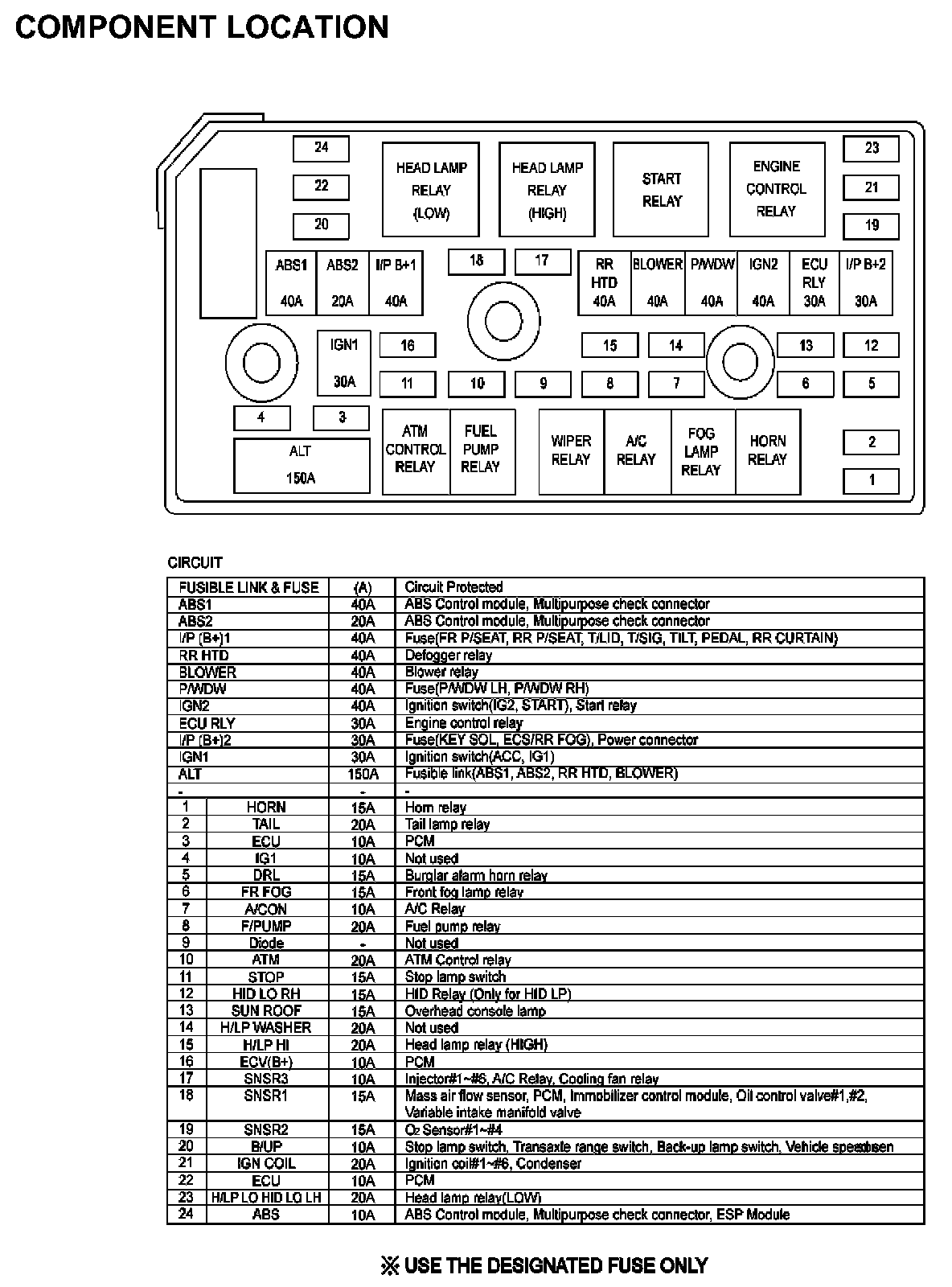

Relay Box (Engine Compartment) Component Location:



Relay Box (Engine Compartment) Component Location:



Engine Room Relay Component Location:
