Relay Box: Description and Operation

ICM (Integrated Circuit Module) Relay Box

DESCRIPTION

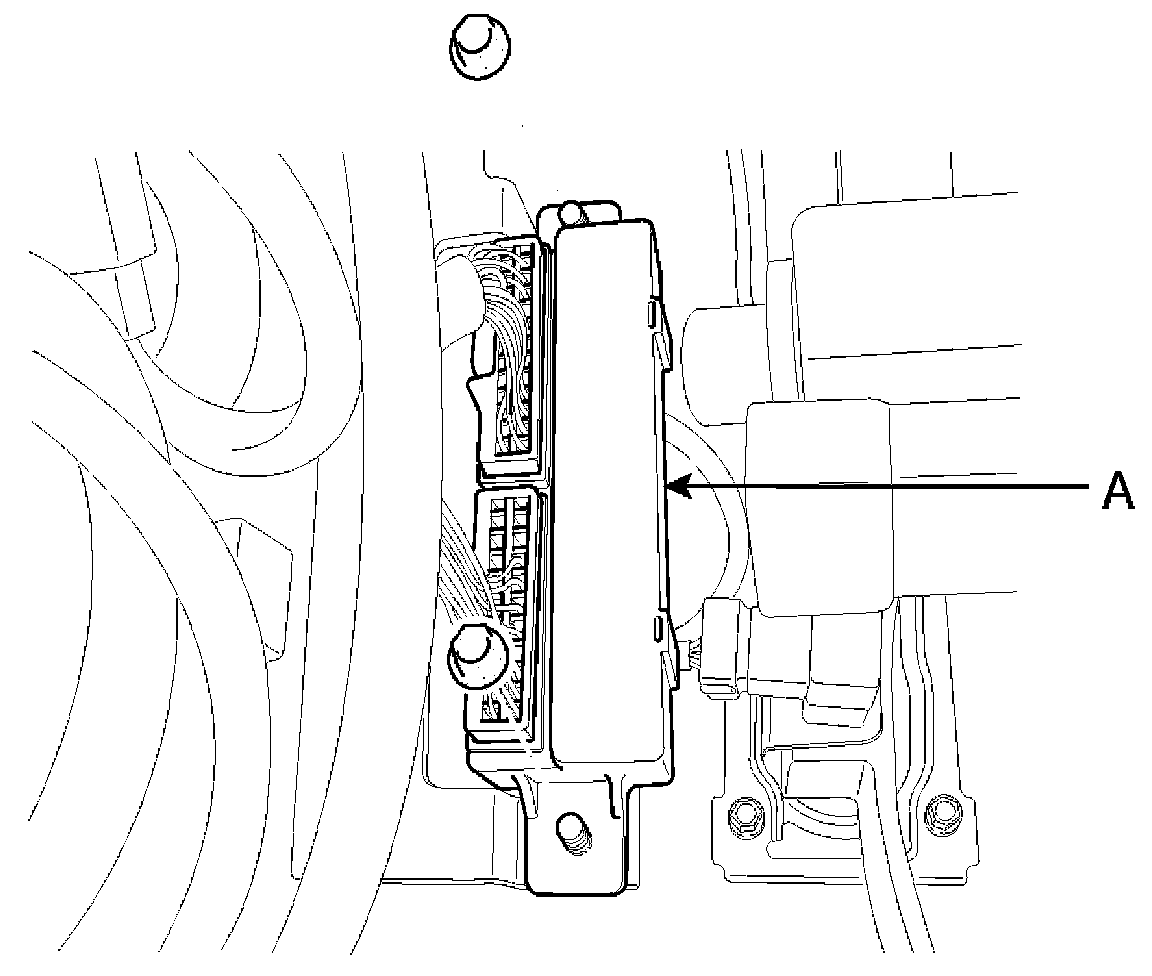

The ICM is united with many kinds of relays and installed below the body control module.relay box (Assist compartment).
