Schematic Diagram: Notes

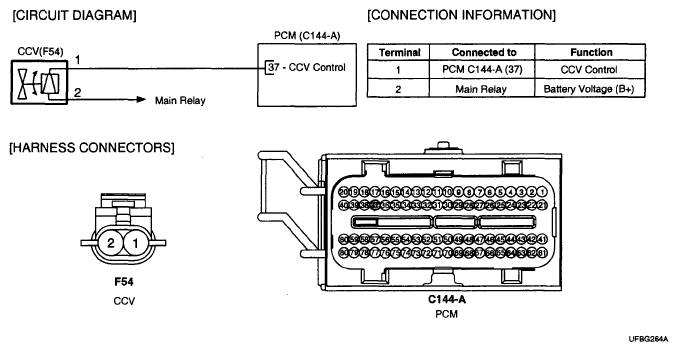

Fig 1: Canister Close Valve - Schematic Diagram

G04879876

Courtesy of HYUNDAI MOTOR CO.
