Abs Circuit Diagram

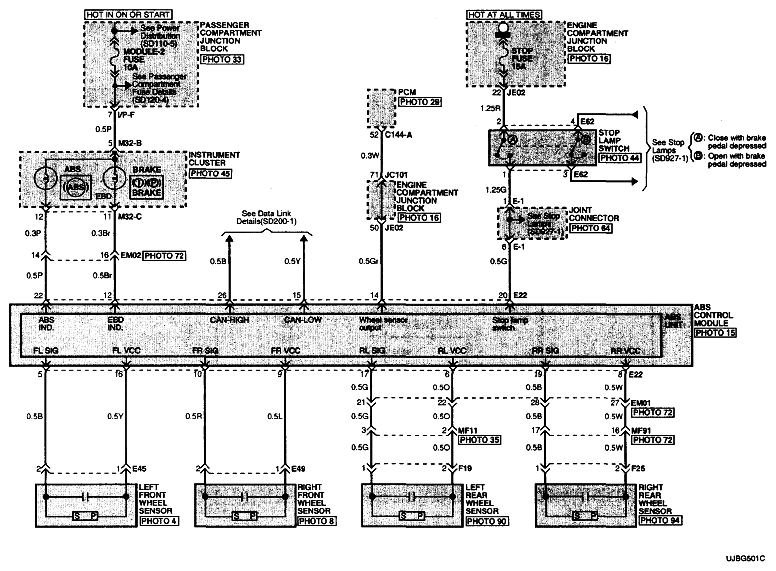

Fig 1: ABS - Circuit Diagram (1 Of 2)
G04880920Courtesy of HYUNDAI MOTOR CO.
Fig 2: ABS - Circuit Diagram (2 Of 2)
G04880921Courtesy of HYUNDAI MOTOR CO.
