Hyundai
>>
2006
>>
Azera Limited
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio System
>>
Audio Remote Control
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

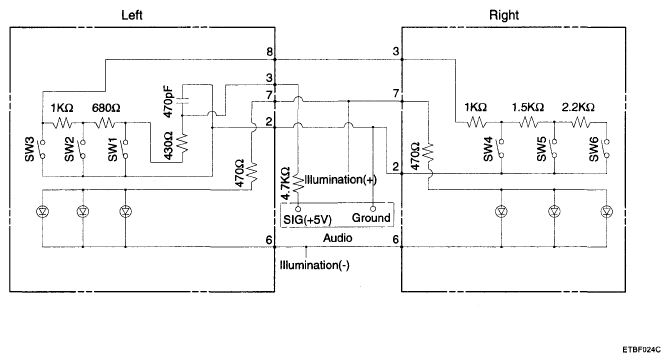

Fig 1: Audio Remote Control Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
