Spark Test

  1. Remove the ignition coil.
    Fig 1: Identifying Ignition Coil With Bolt
    G04801400Courtesy of HYUNDAI MOTOR CO.
  2. Using a spark plug socket, remove the spark plug.
  3. Install the spark plug to the ignition coil.
  4. Ground the spark plug to the engine.
    Fig 2: Installing Spark Plug To Ignition Coil
    G04801401Courtesy of HYUNDAI MOTOR CO.
  5. Check if spark occurs while engine is being cranked.
    NOTE: To prevent fuel being injected from injectors while the engine is being cranked, remove the fuel pump relay(A) from the fuse box.
    Crank the engine for no more than 5 ~ 10 seconds.
    Fig 3: Identifying Fuel Pump Relay
    G04801402Courtesy of HYUNDAI MOTOR CO.
  6. Inspect all the spark plugs.
  7. Using a spark plug socket, install the spark plug.
  8. Install the ignition coil.

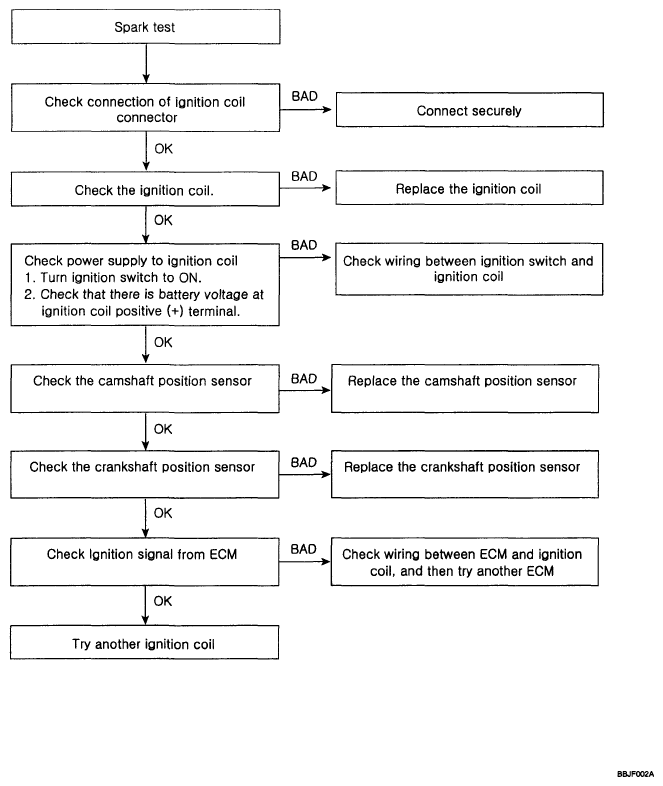

    Fig 4: Ignition Coil Flow Chart
    G04801403Courtesy of HYUNDAI MOTOR CO.
