System Specifications

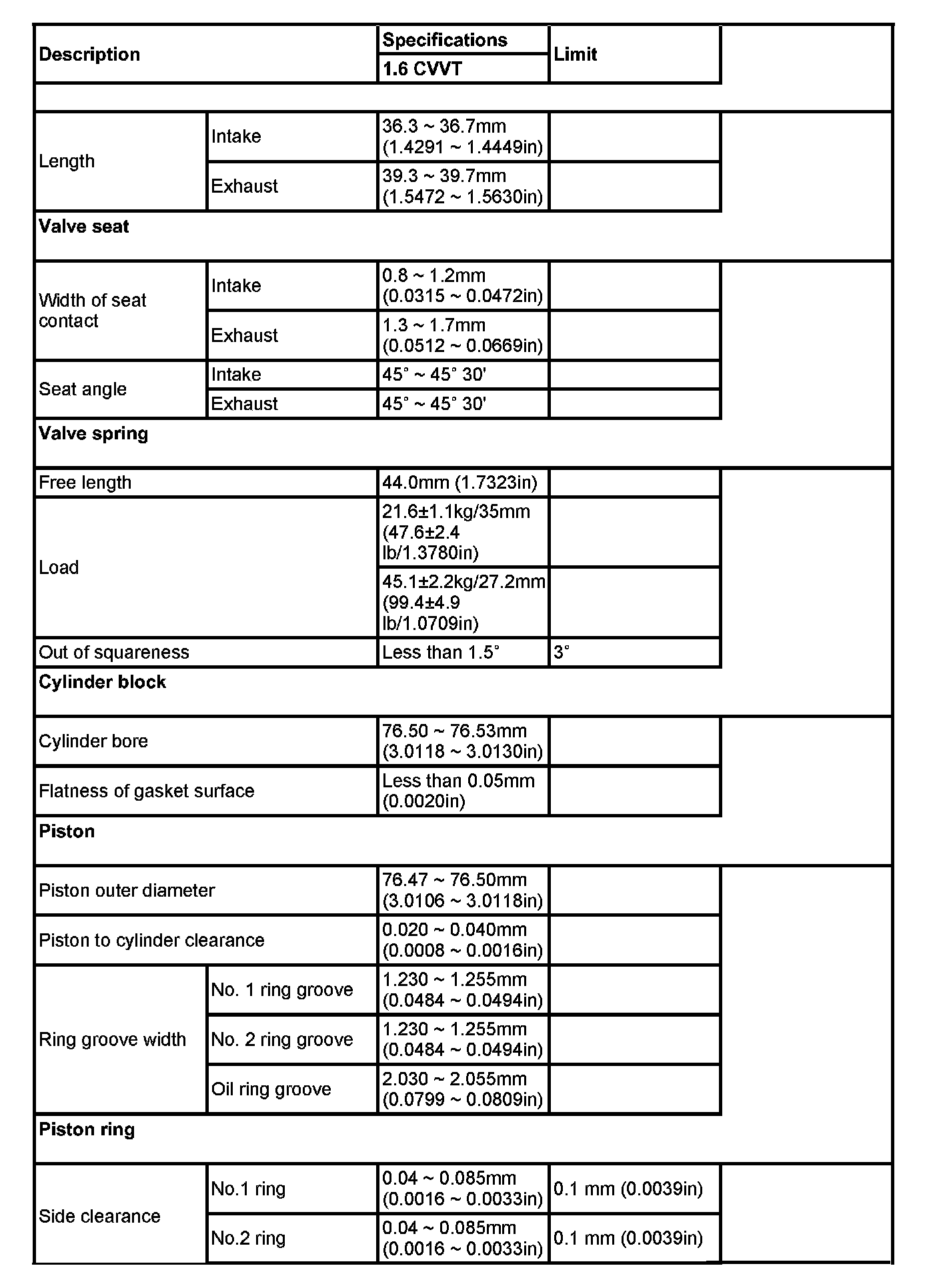

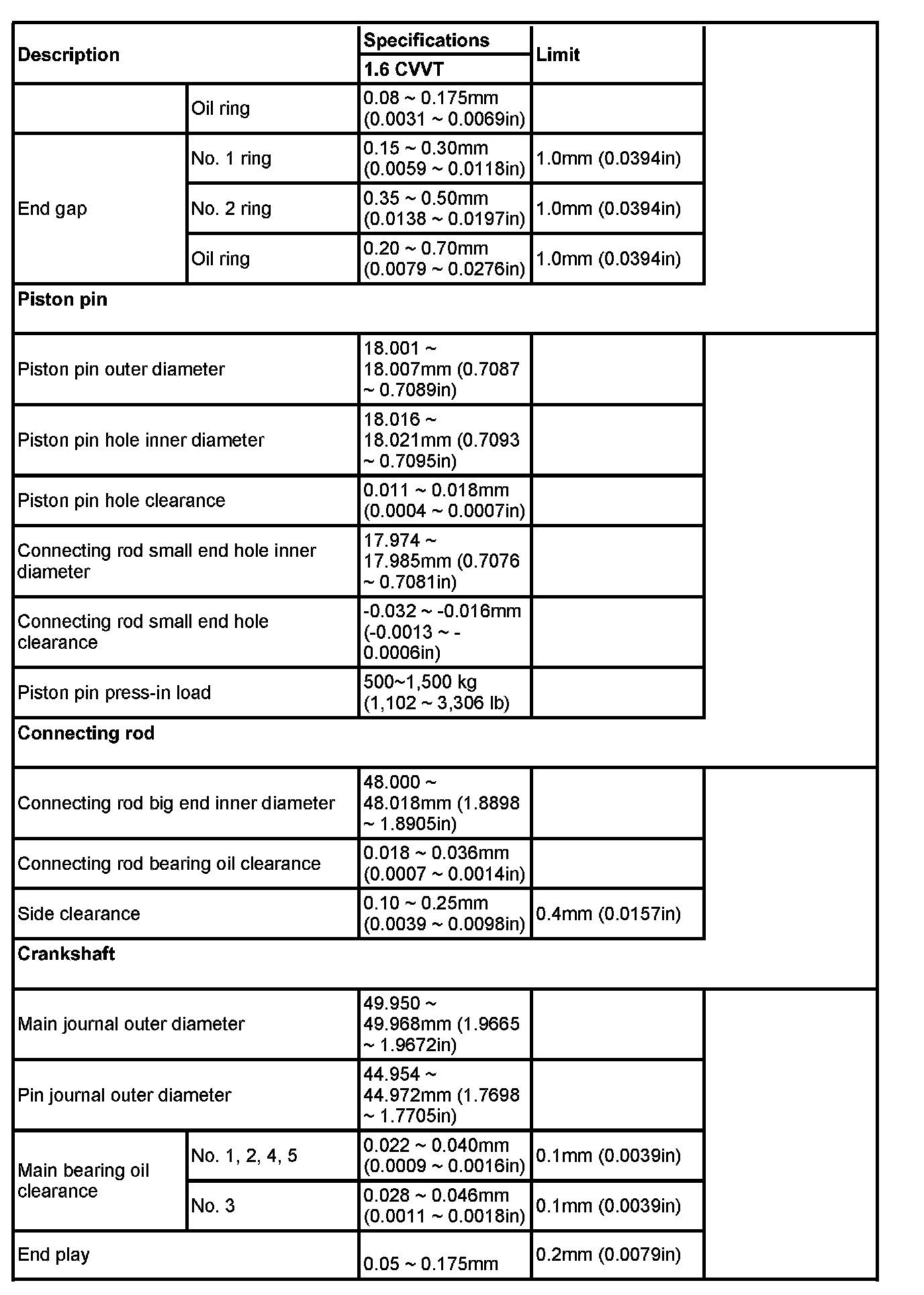

SPECIFICATIONS:

Crankshaft main bearing selection table:

Crankshaft pulley bolt 137.3 - 147.1 Nm (14.0 - 15.0 kgf.m, 101.3 - 108.5 ft. lbs.)

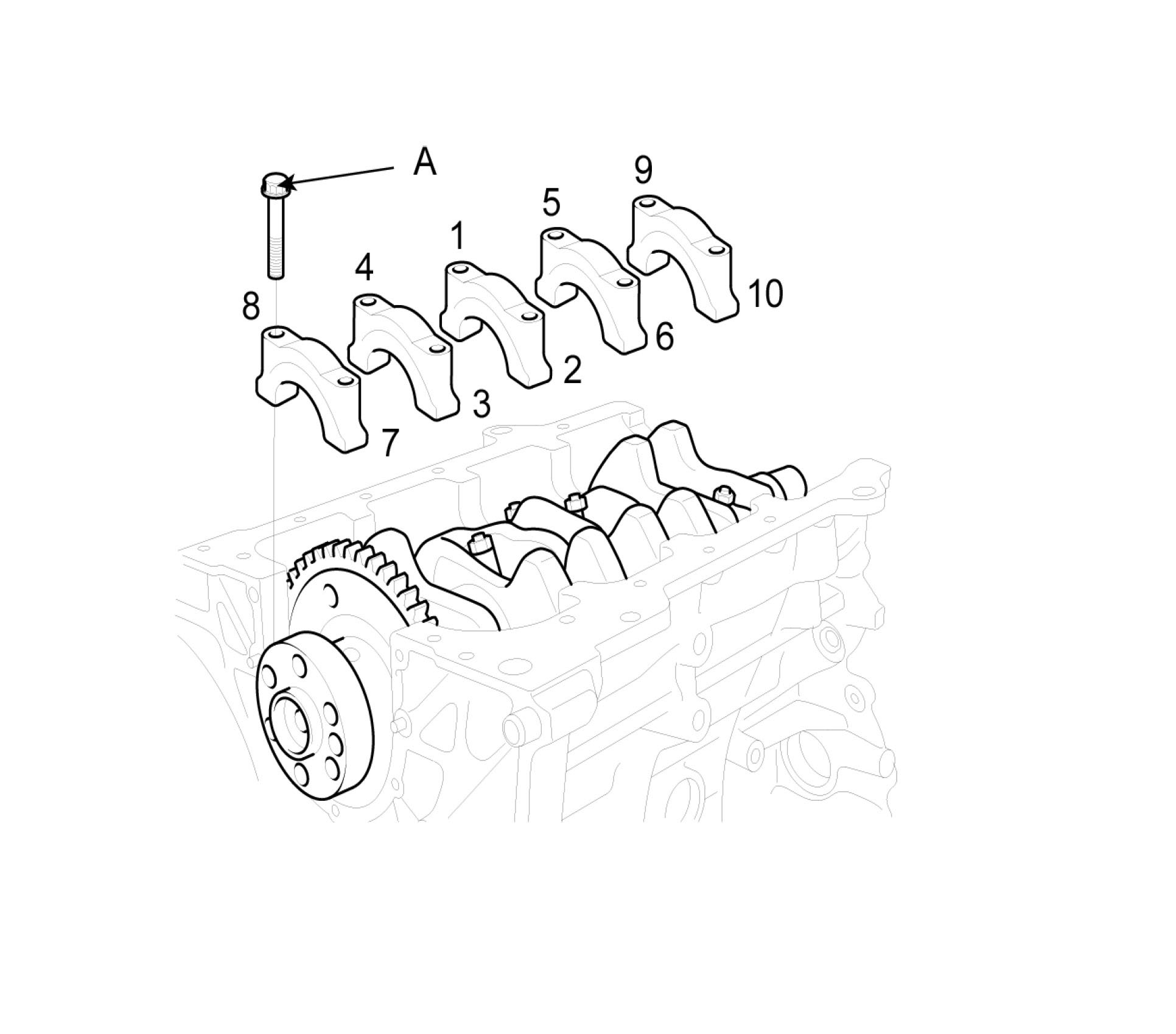

Crankshaft main bearing cap bolt 53.9 - 58.8 Nm (5.5 - 6.0 kgf.m, 39.8 - 43.4 ft. lbs.)

Connecting rod cap nut 31.4 - 34.3 Nm (3.2 - 3.5 kgf.m, 23.1 - 25.3 ft. lbs.)
