Cabin Temperature Sensor / Switch: Service and Repair

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

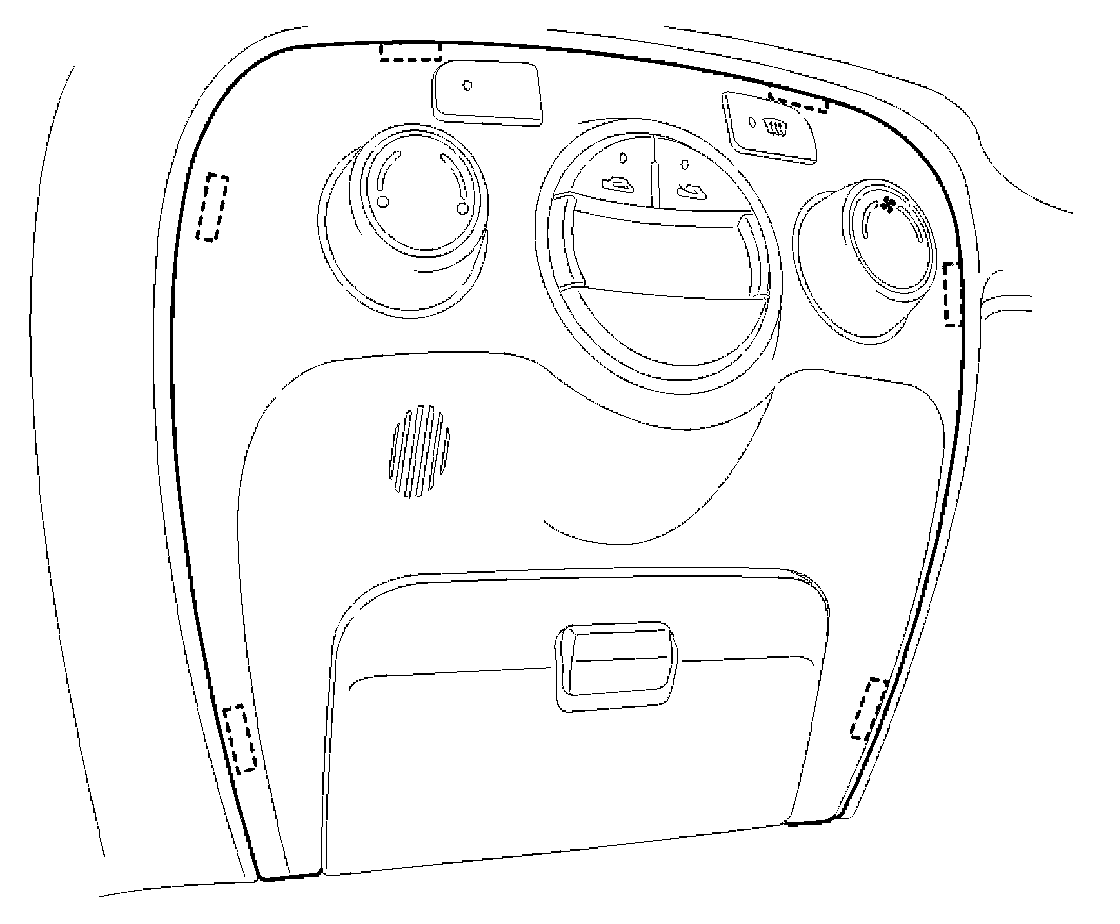

2. Remove the center facia lower panel.

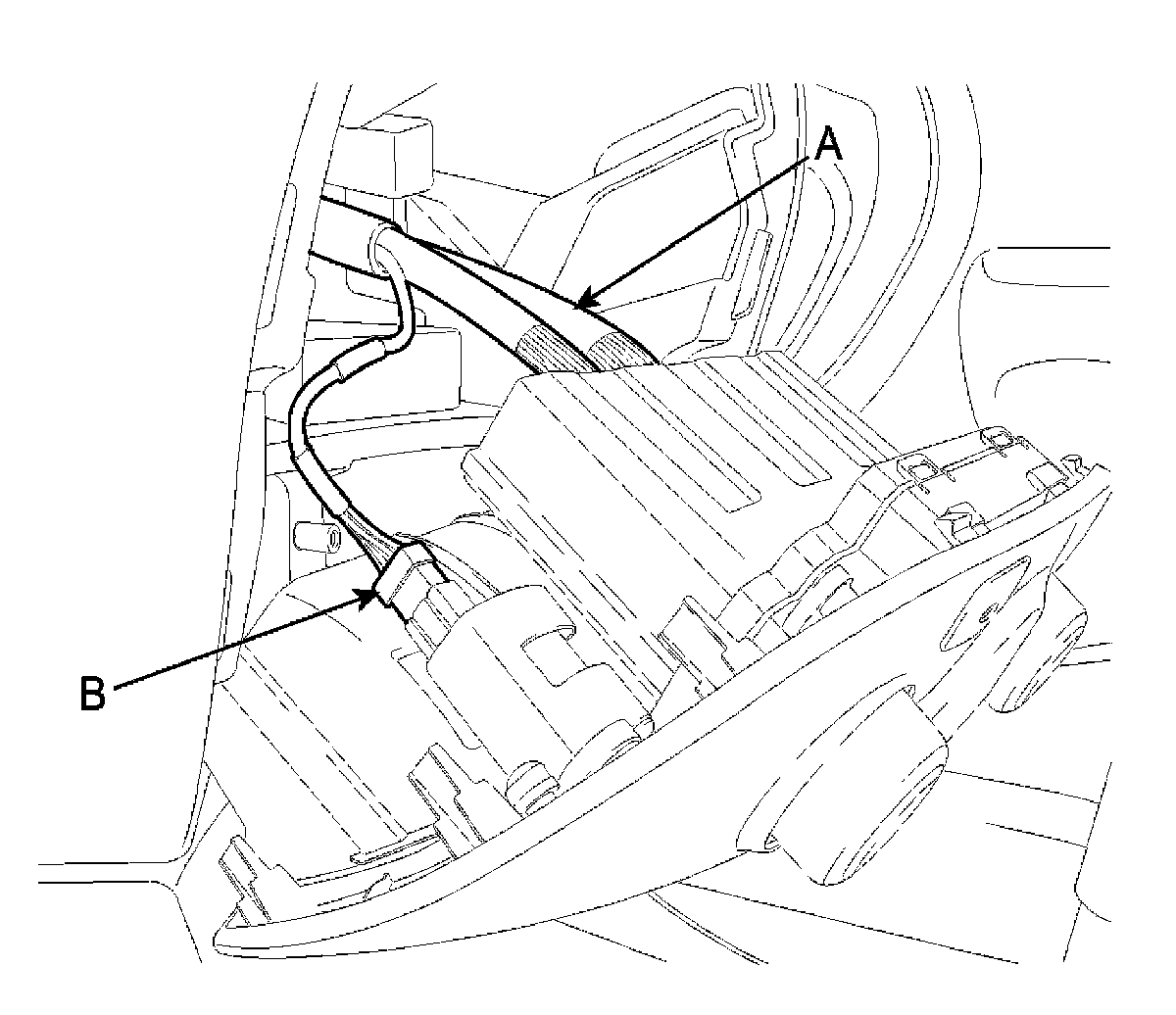

3. Remove the controller connector (A), in-car sensor connector (B).

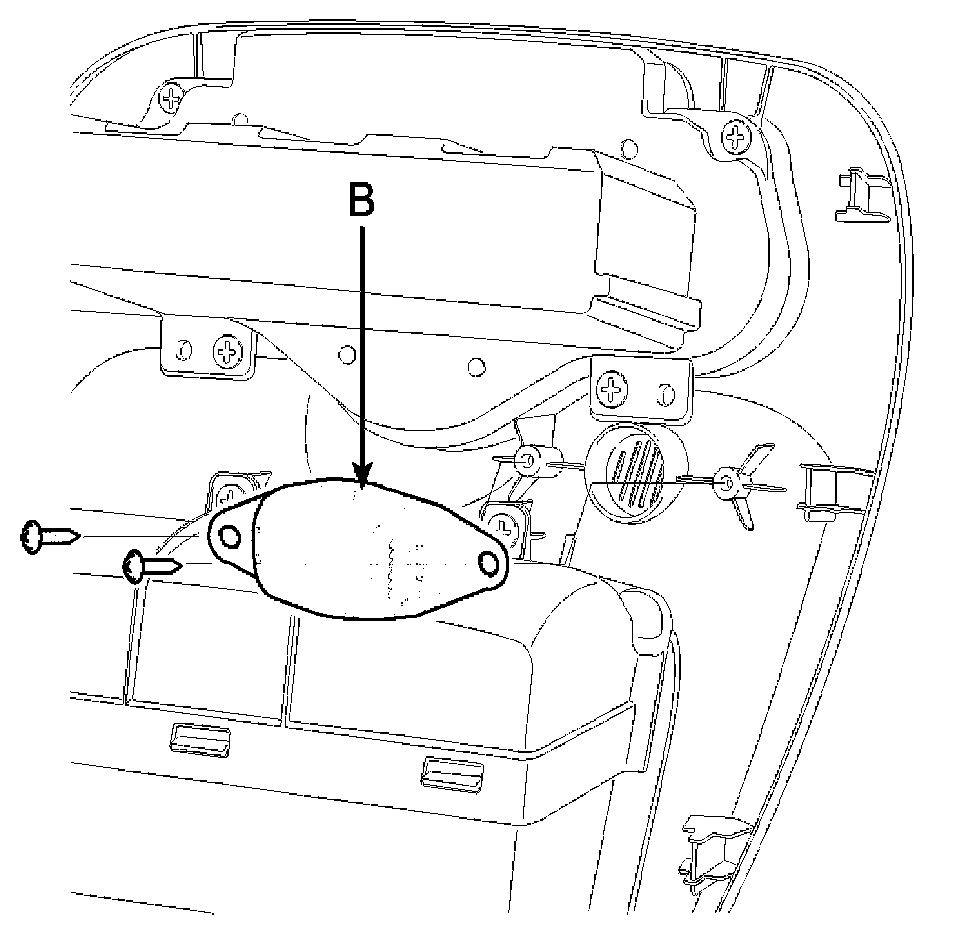

4. Loosen the mounting 2 screws and then remove the in-car sensor (B).
5. Installation is the reverse order of removal.
