Accent L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Automatic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Automatic

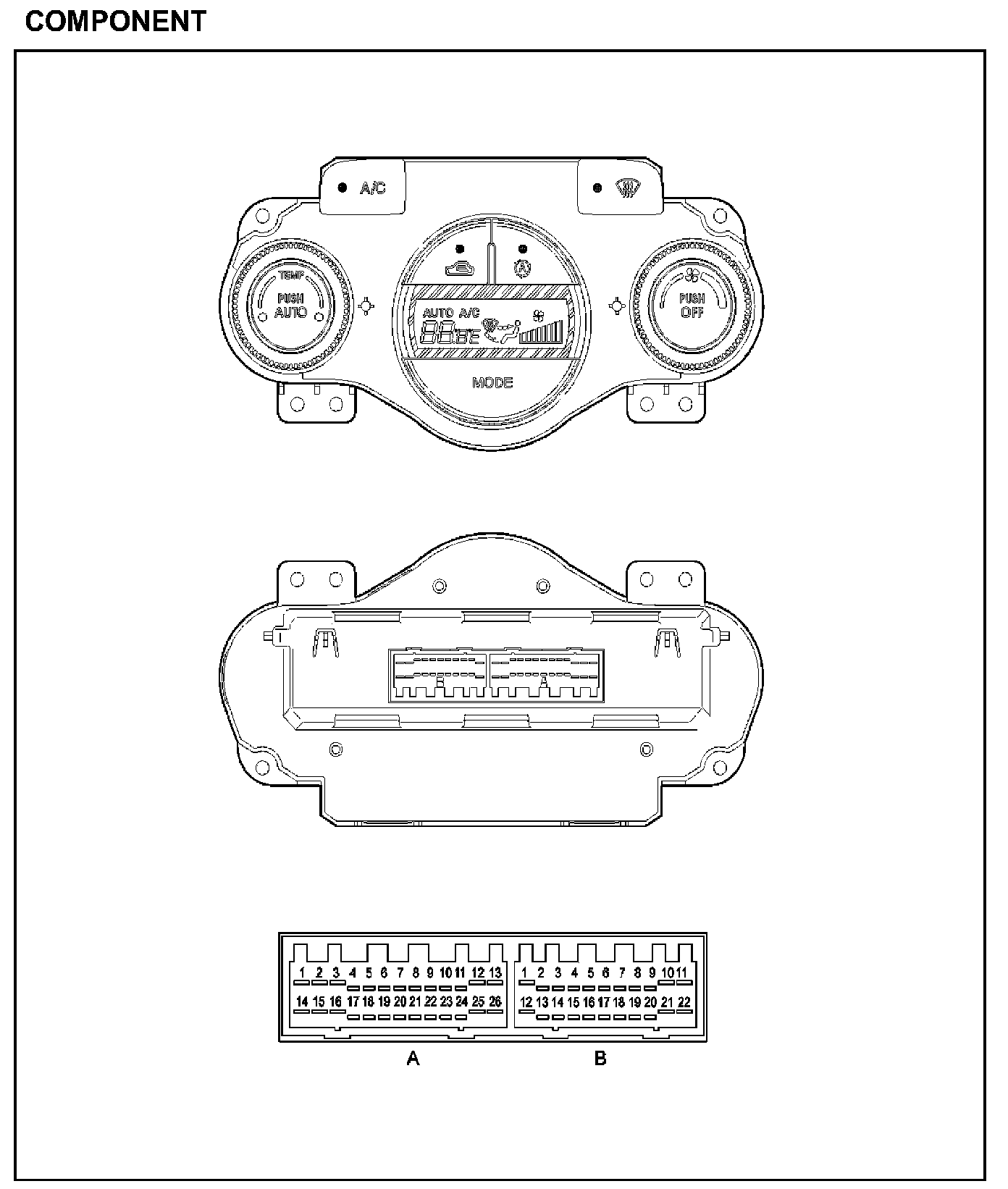

Component:

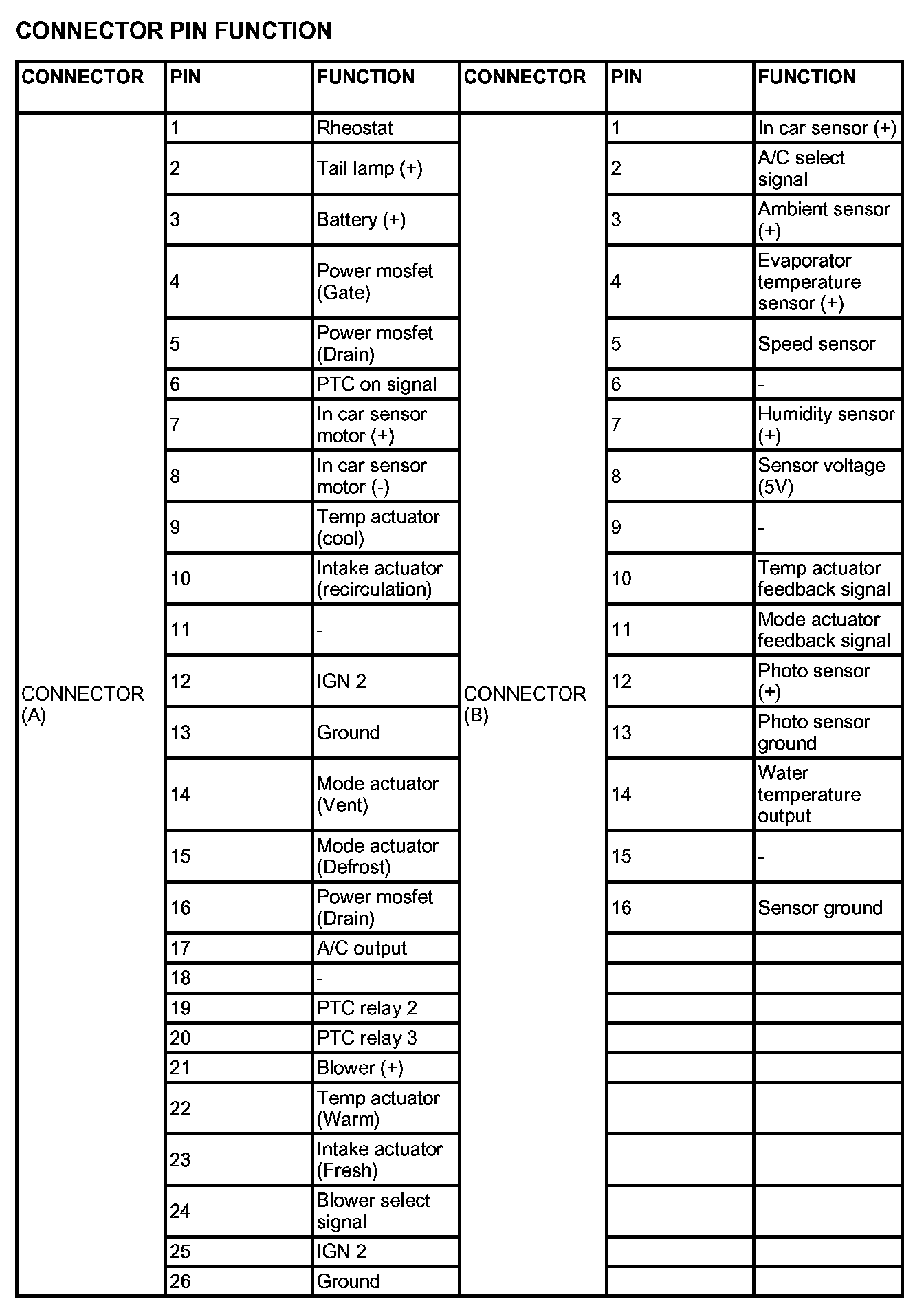

Connector Pin Function:
