Automatic Transaxle System: Troubleshooting: Notes

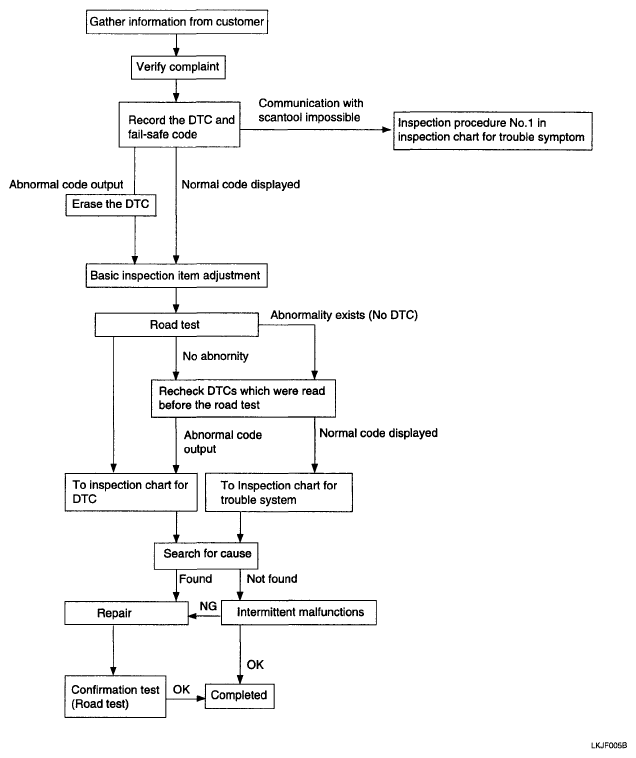

Fig 1: Flow Chart - Troubleshooting
Courtesy of HYUNDAI MOTOR CO.
