"R" Range

Operating elements: Front Clutch, Low & Reverse Brake

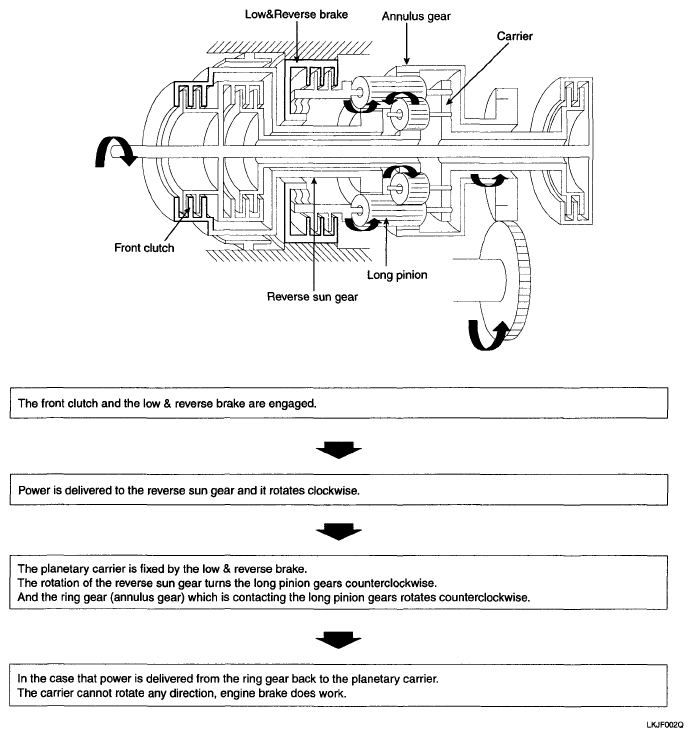

Fig 1: Operation Diagram - "R" Range
G04802031Courtesy of HYUNDAI MOTOR CO.
