Mechanical System: Components

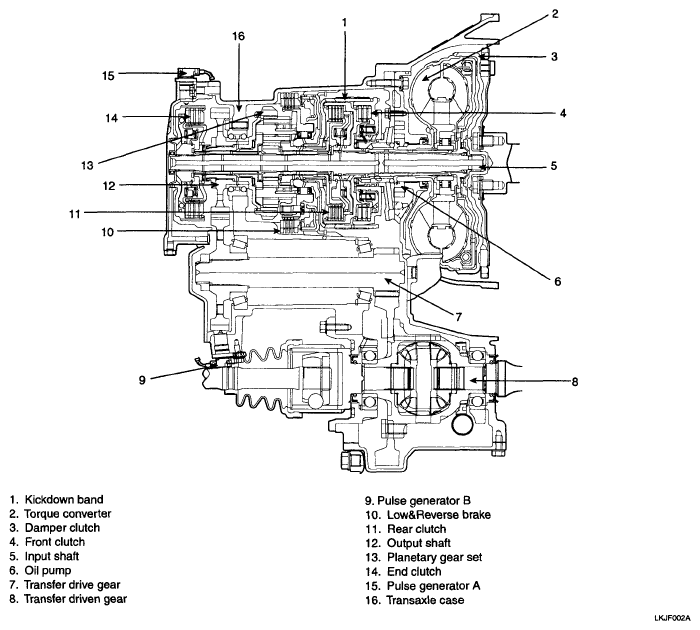

Fig 1: Identifying Mechanical System Components
Courtesy of HYUNDAI MOTOR CO.
