Automatic Transaxle System: Description: Components(2)

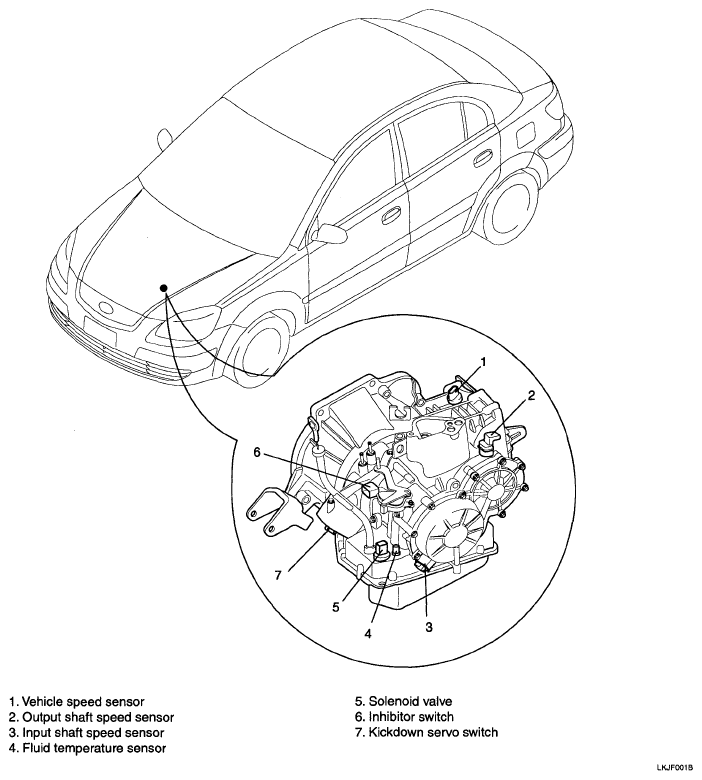

Fig 1: Identifying Automatic Transaxle System Components
G04802014Courtesy of HYUNDAI MOTOR CO.
