Automatic Transaxle: Component(1): Component(5)

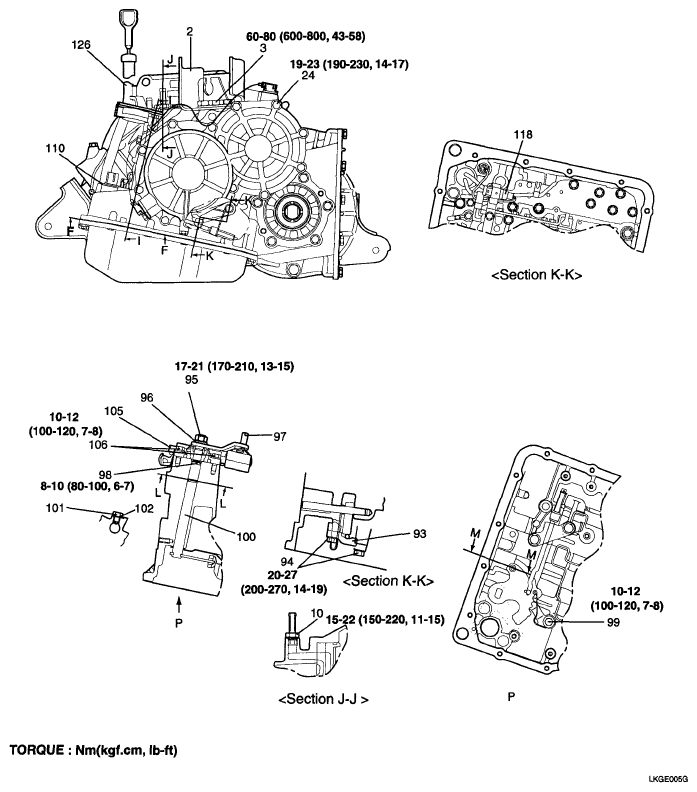

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications (5 Of 6)
G04802151Courtesy of HYUNDAI MOTOR CO.
