Connector (C133-4)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Connector (C133-4)

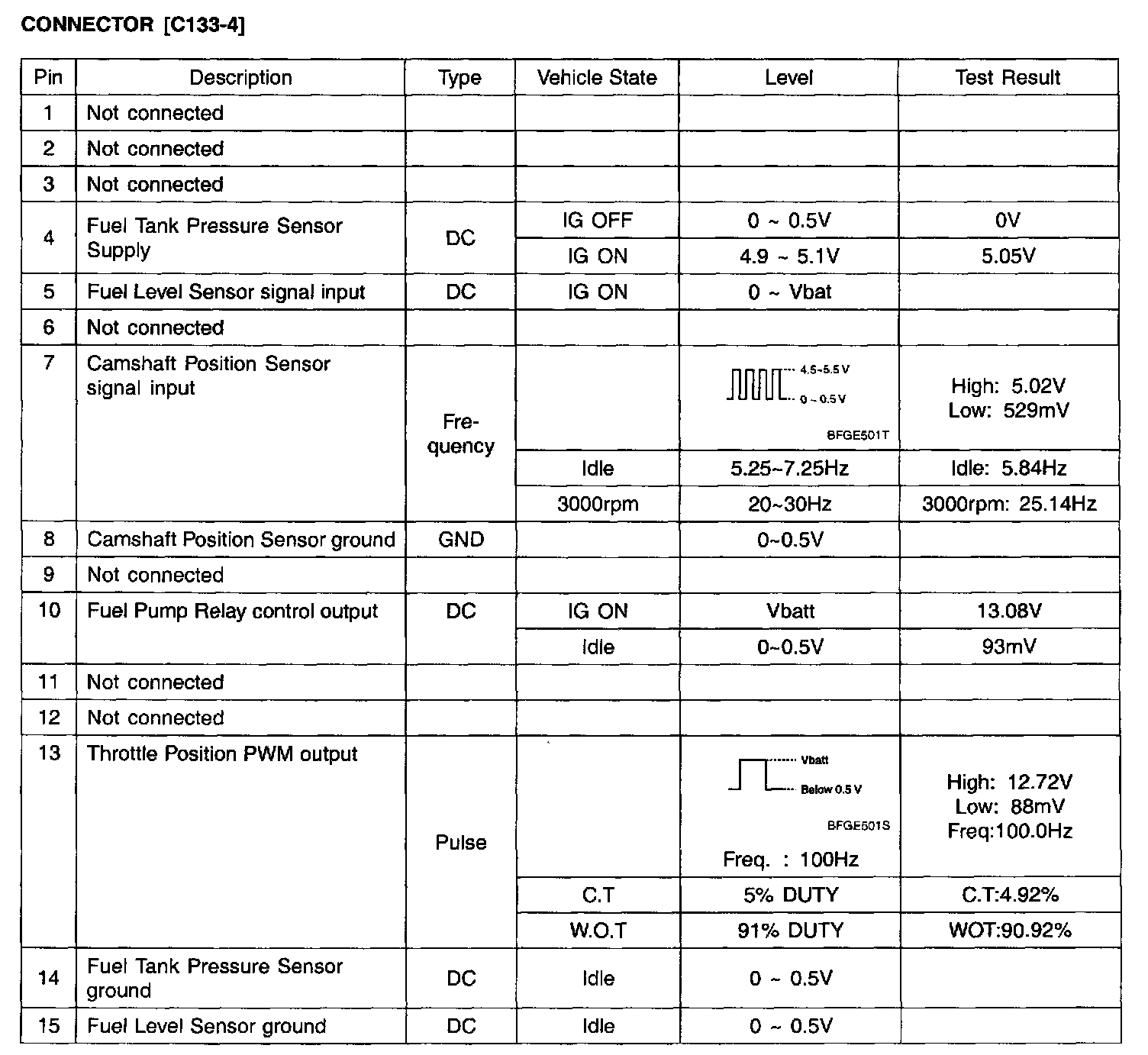

Pin No:1-15:

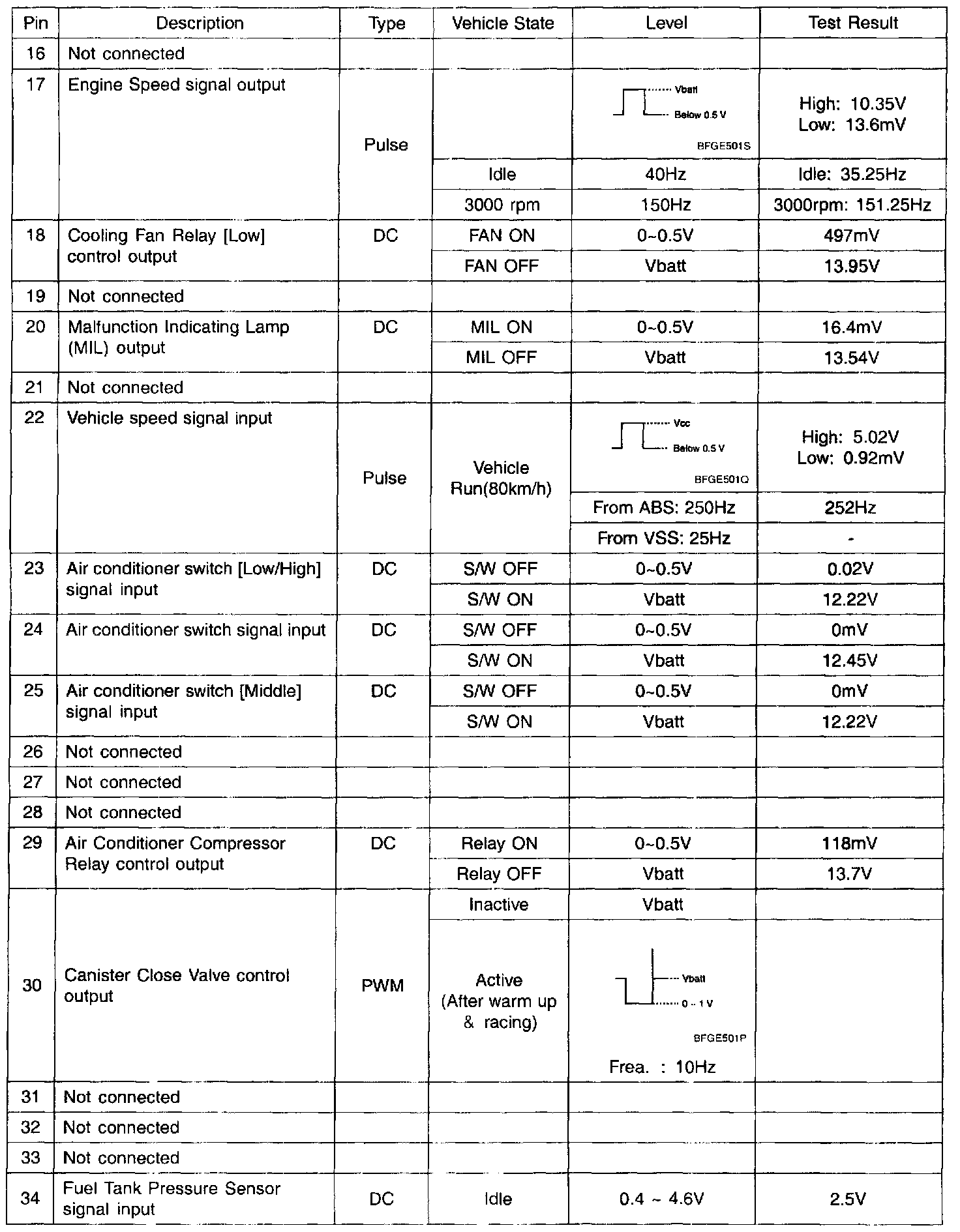

Pin No: 16-34:

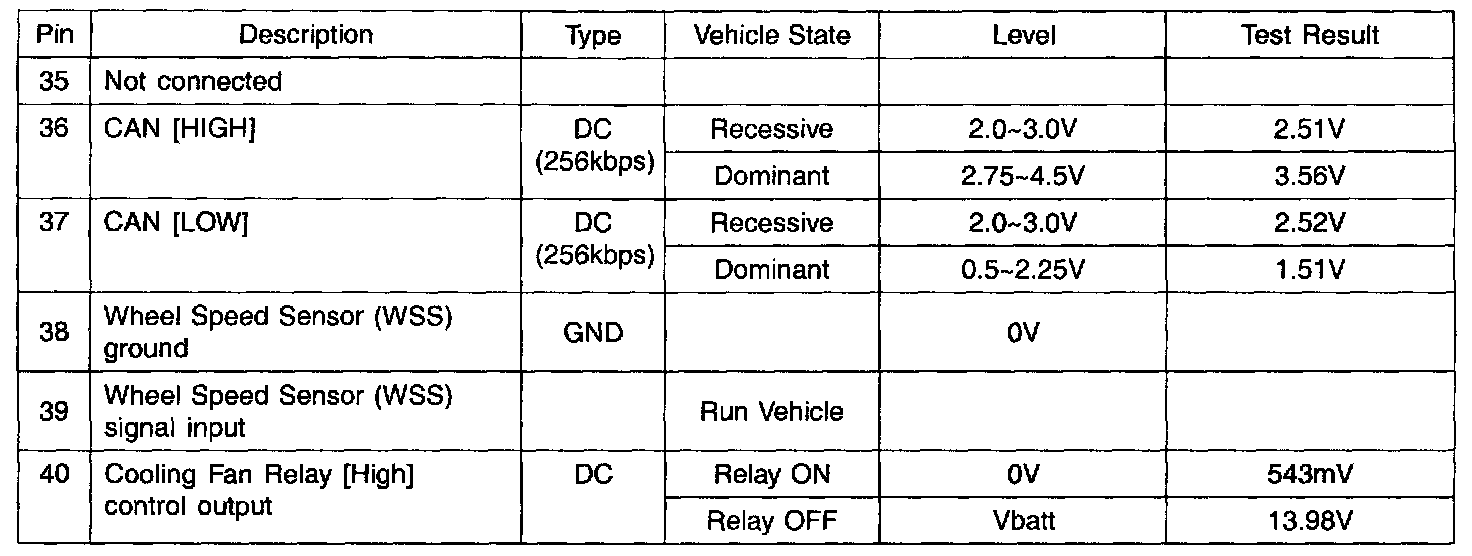

Pin No: 35-40:
