Tightening Torque

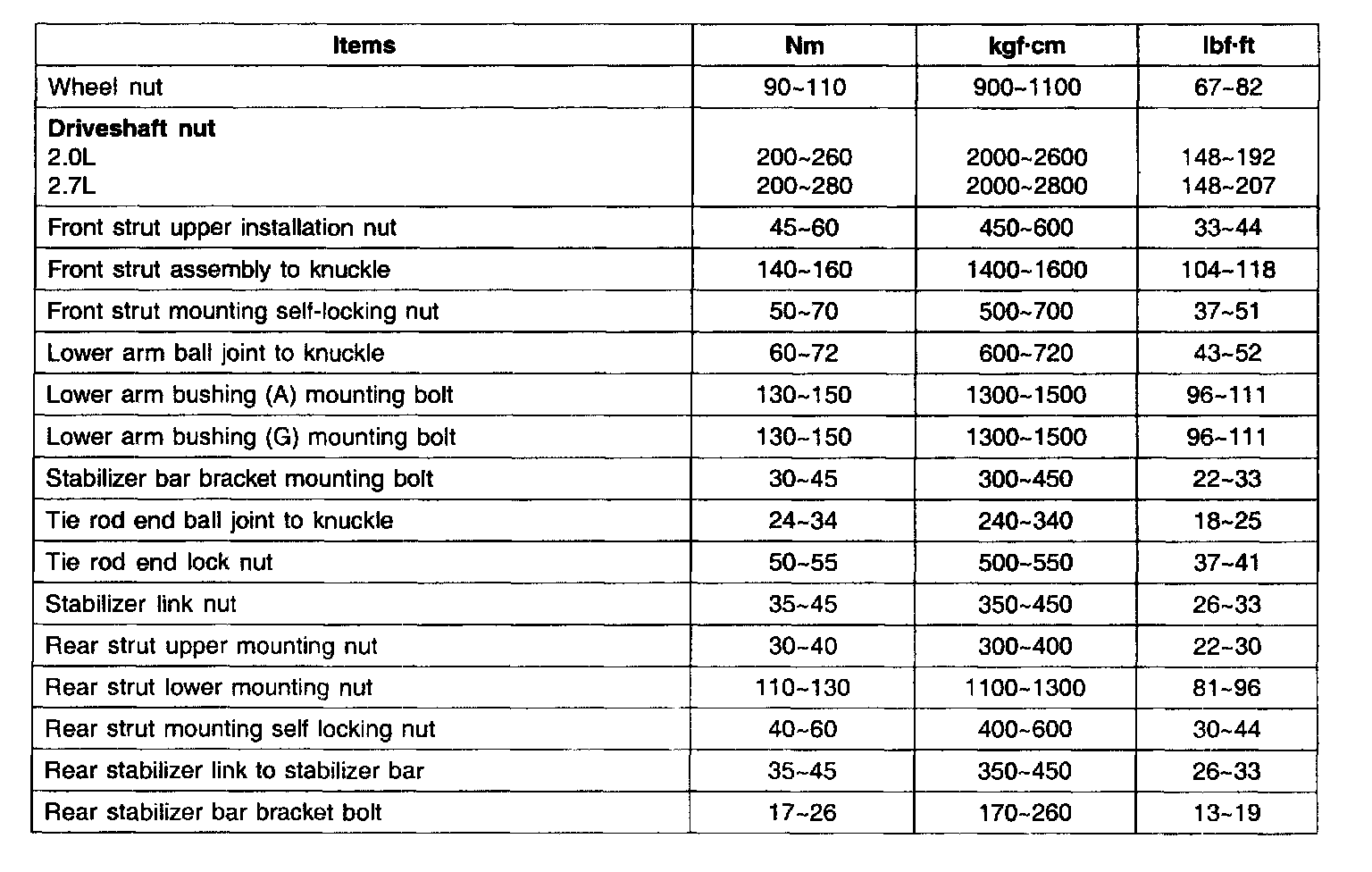

TIGHTENING TORQUE

Part 1:




Part 2:





CAUTION: Replace the self-locking nuts with new ones after removal
