Oil Pan, Engine

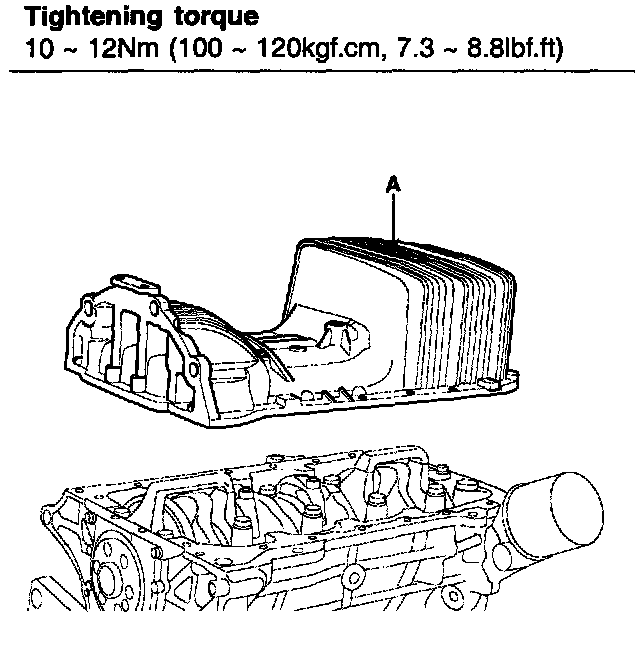

Install the oil pan (A) with the 19 bolts.
Uniformly tighten the bolts in several passes.
Tightening torque 10 - 12 Nm (100 - 120 kgf-cm, 7.3 - 8.8 ft. lbs.)
