Engine Control Module

ECM HARNESS CONNECTOR

Connector View:






ECM TERMINAL FUNCTION

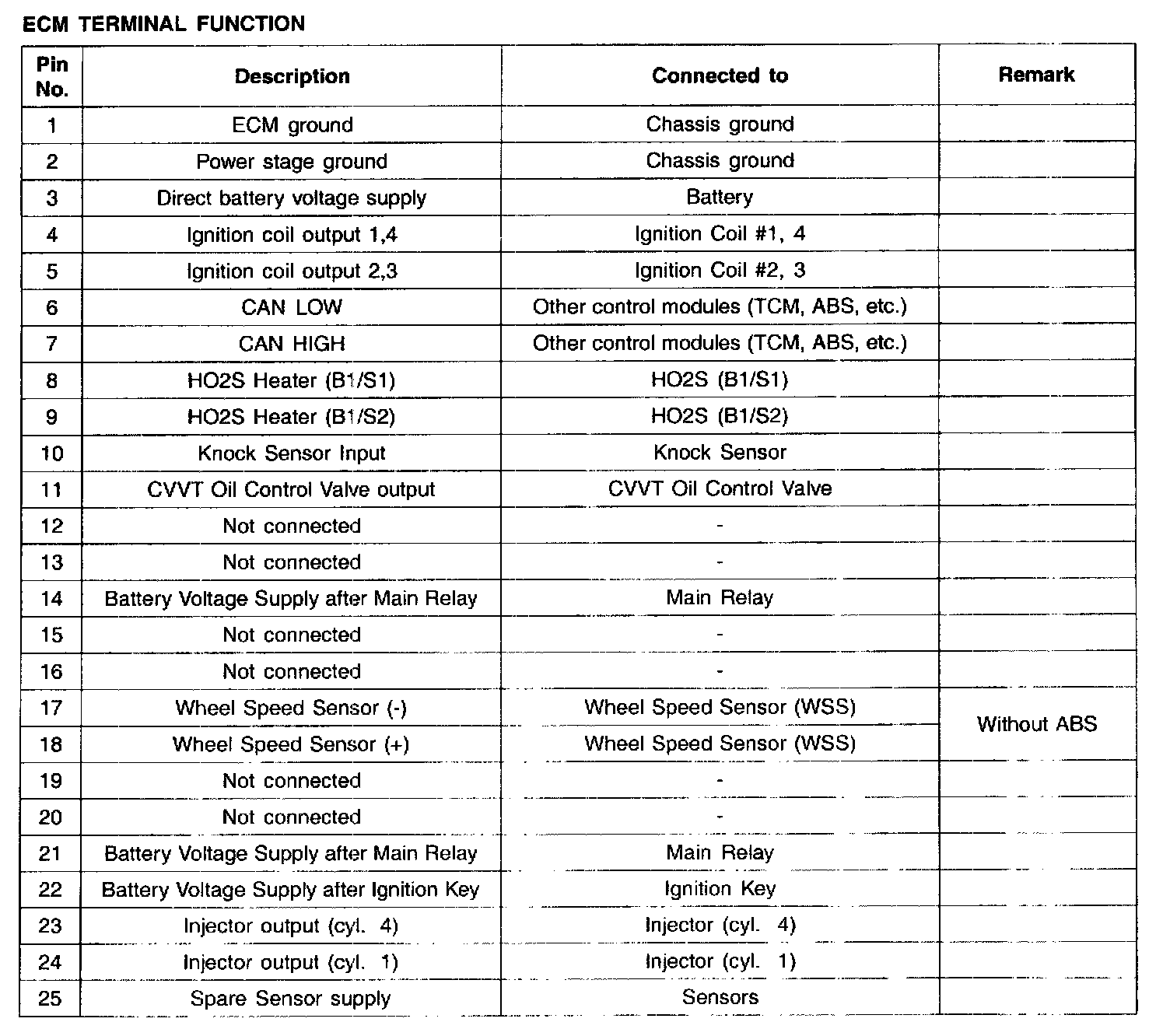

Pin No. 1-25:

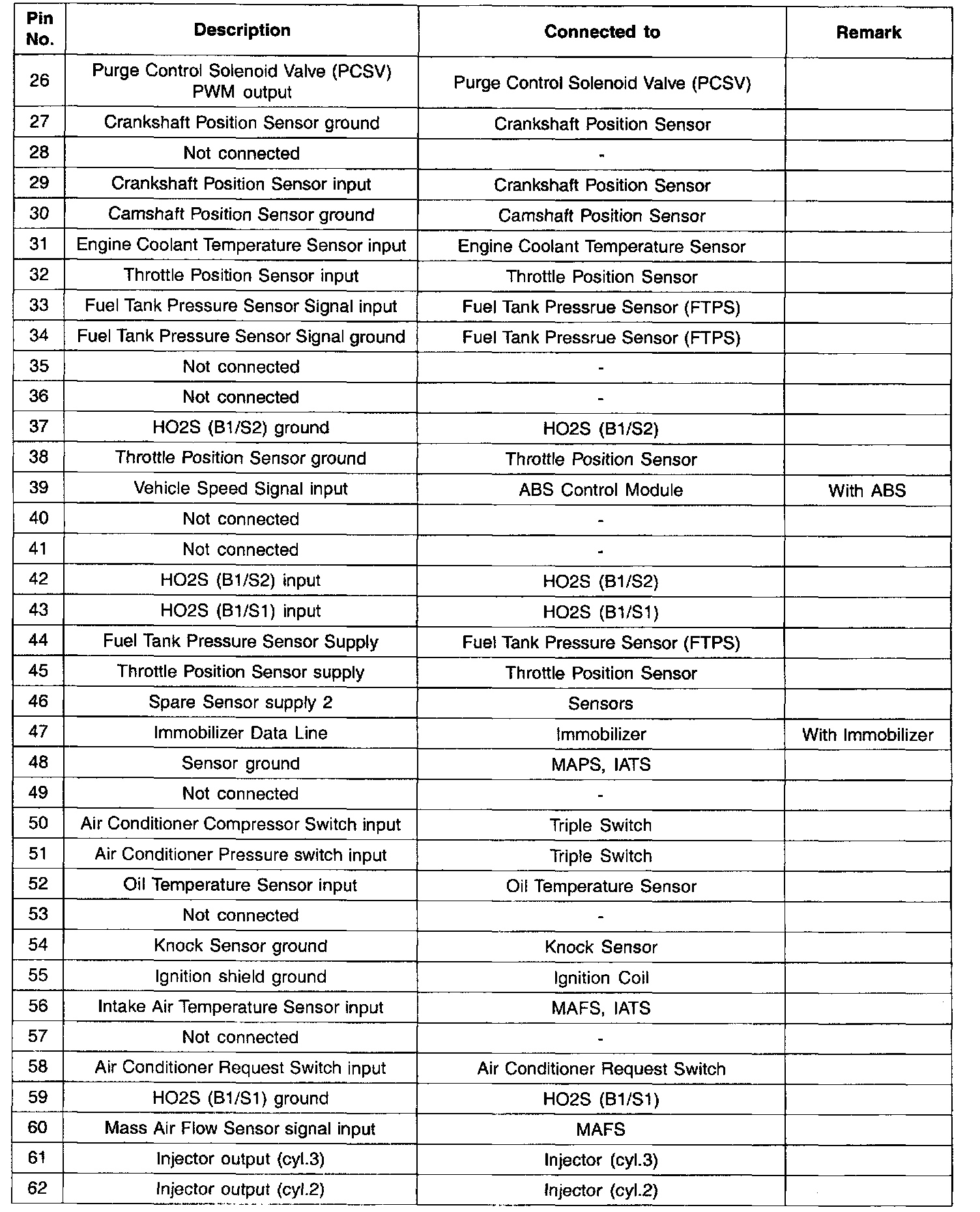

Pin No. 26-62:

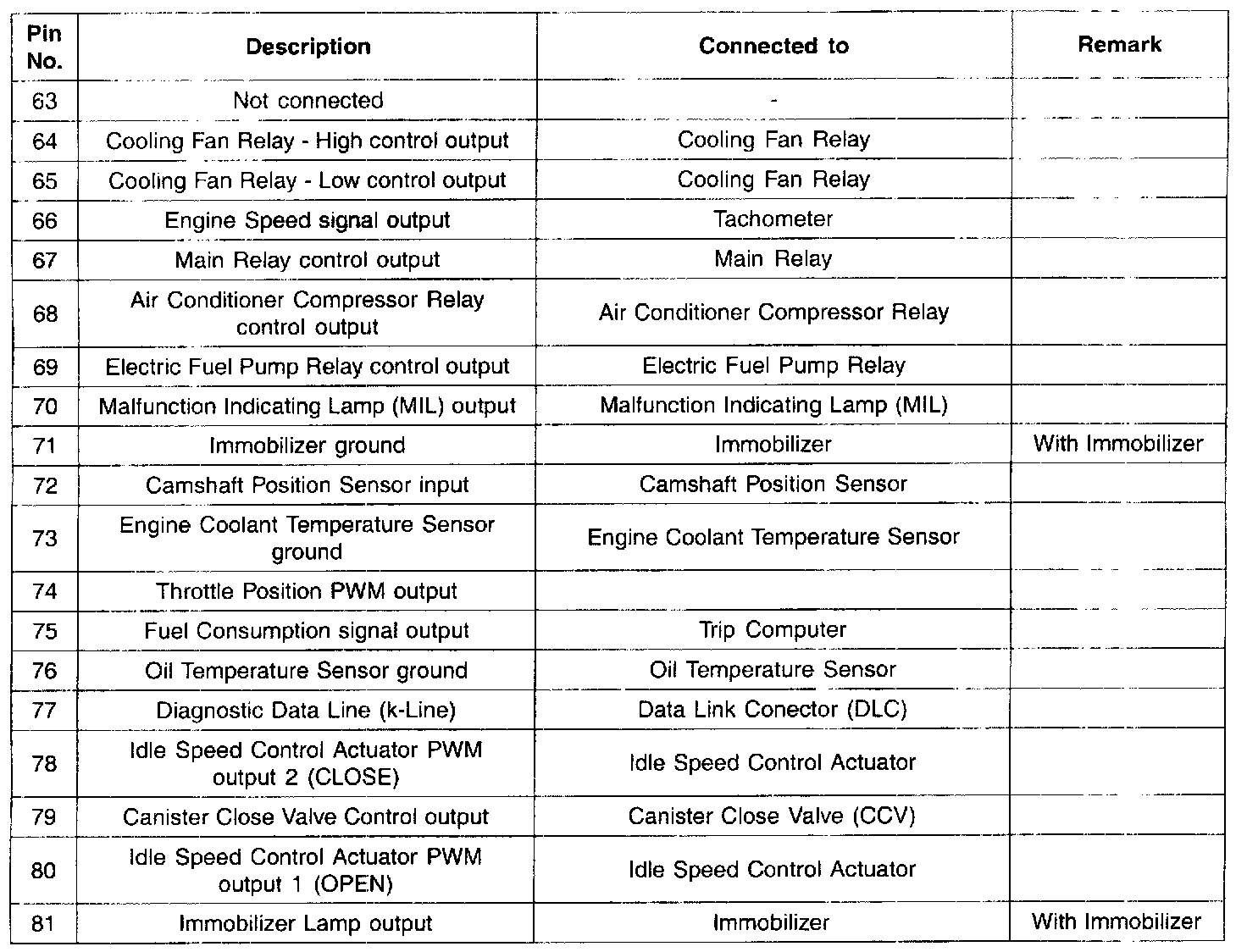

Pin No. 63-81:
