Sonata V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Alarm Module, (Vehicle Antitheft)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Alarm Module, (Vehicle Antitheft)

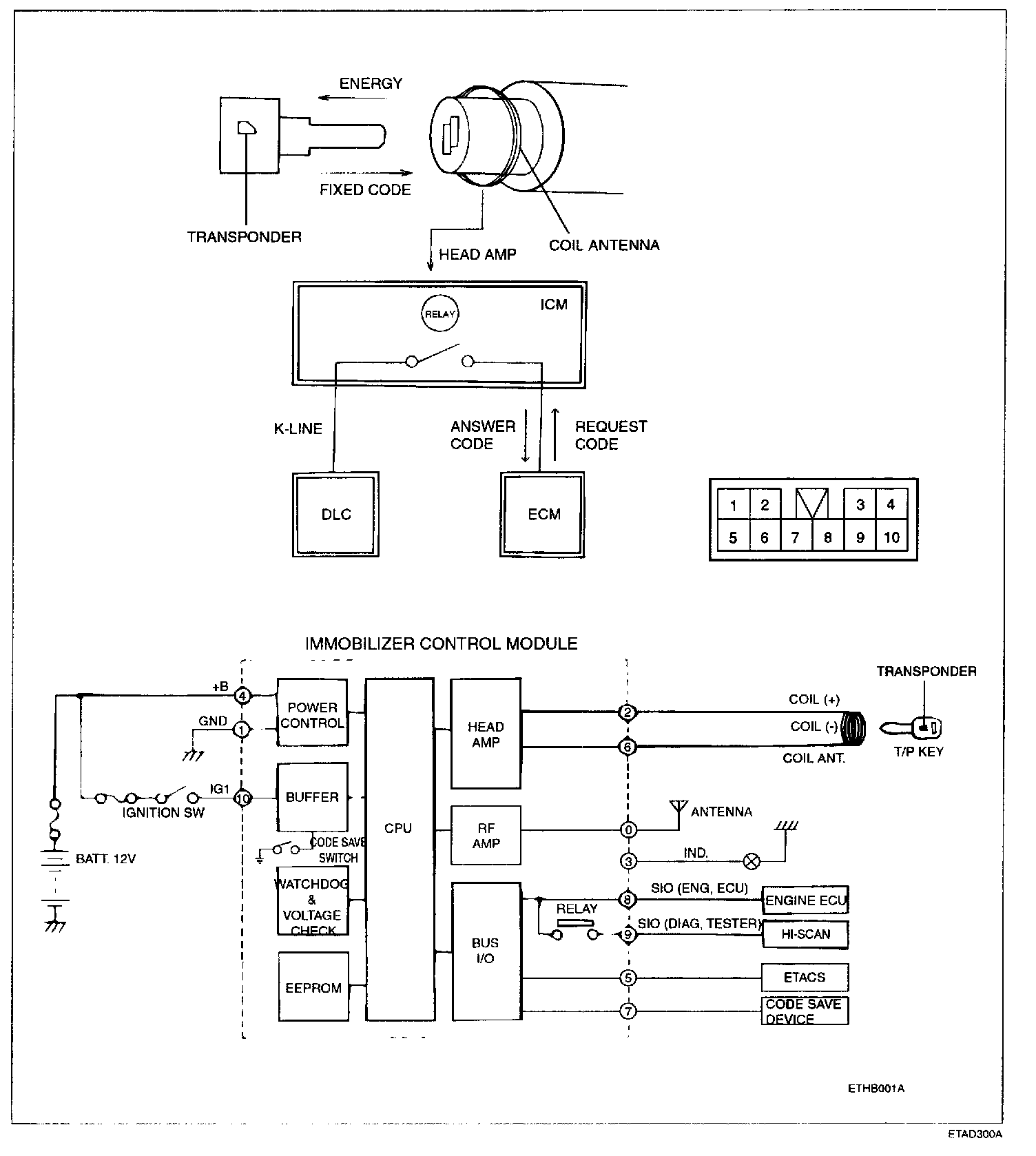

Immobilizer Control Module - System Block Diagram:
Pin Connection:
