Inspection Procedure 14

INSPECTION PROCEDURE 14 - TROUBLESHOOTING SYMPTOM

Poor acceleration Probable cause
If acceleration is poor even if downshifting occurs while driving, the cause is probably a malfunction of the engine system, brake or clutch.
  • Malfunction of the engine system
  • Malfunction of brake or clutch

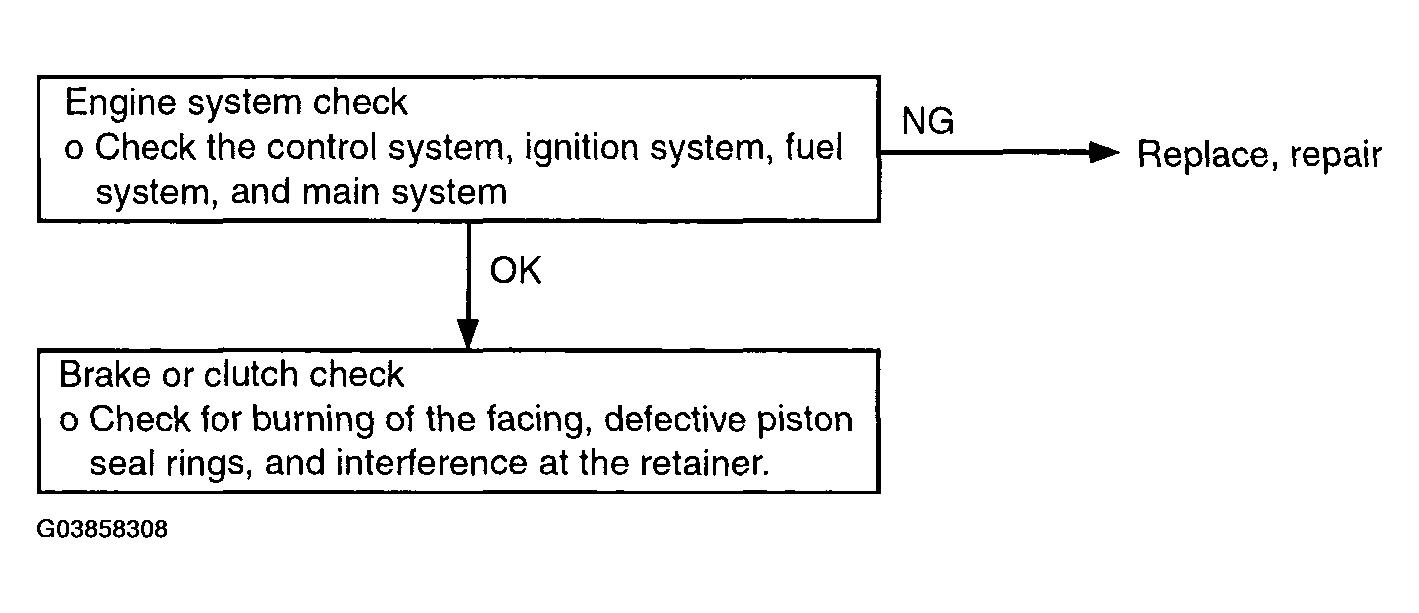

Fig 1: Poor Acceleration - Troubleshooting Flow Chart
G03858308Courtesy of HYUNDAI MOTOR CO.
