Code No. P0885 A/T Control relay system

CODE NO. P0885 A/T CONTROL RELAY SYSTEM - TROUBLESHOOTING SYMPTOM

Code No. P0885 A/T Control relay system	Probable cause
If the relay voltage is less than 7 V after the ignition switch has been turned to ON, it is judged that there is an open circuit or a short circuit in the A/T control relay ground and diagnostic trouble code P0885 is set. The transaxle is locked into 3rd gear as a fail-safe measure.	Malfunction of the A/T control relay Malfunction of connector Malfunction of the TCM

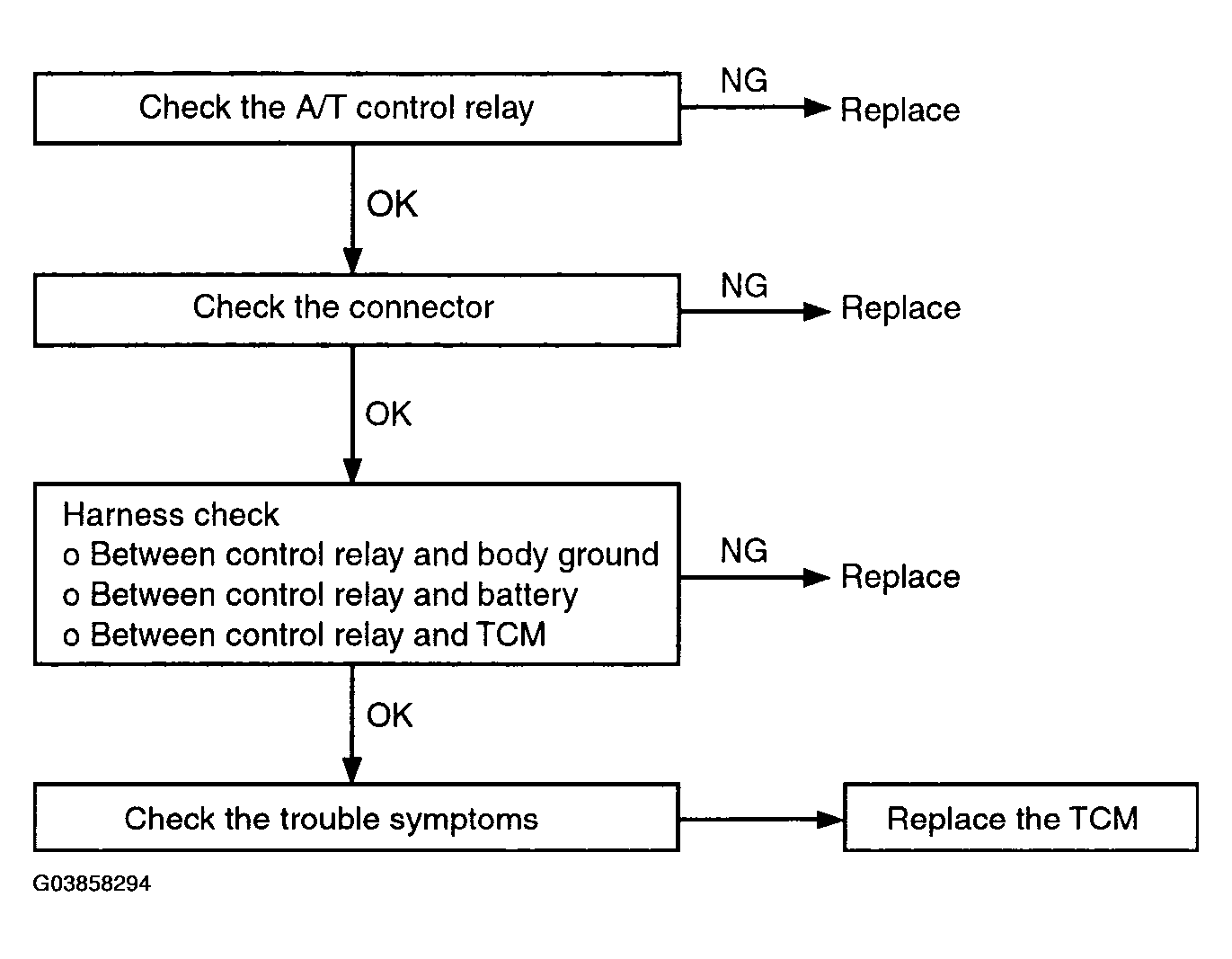

Fig 1: Code No. P0885 A/T Control Relay System - Troubleshooting Flow Chart

Courtesy of HYUNDAI MOTOR CO.
