Troubleshooting Procedures (MAF)

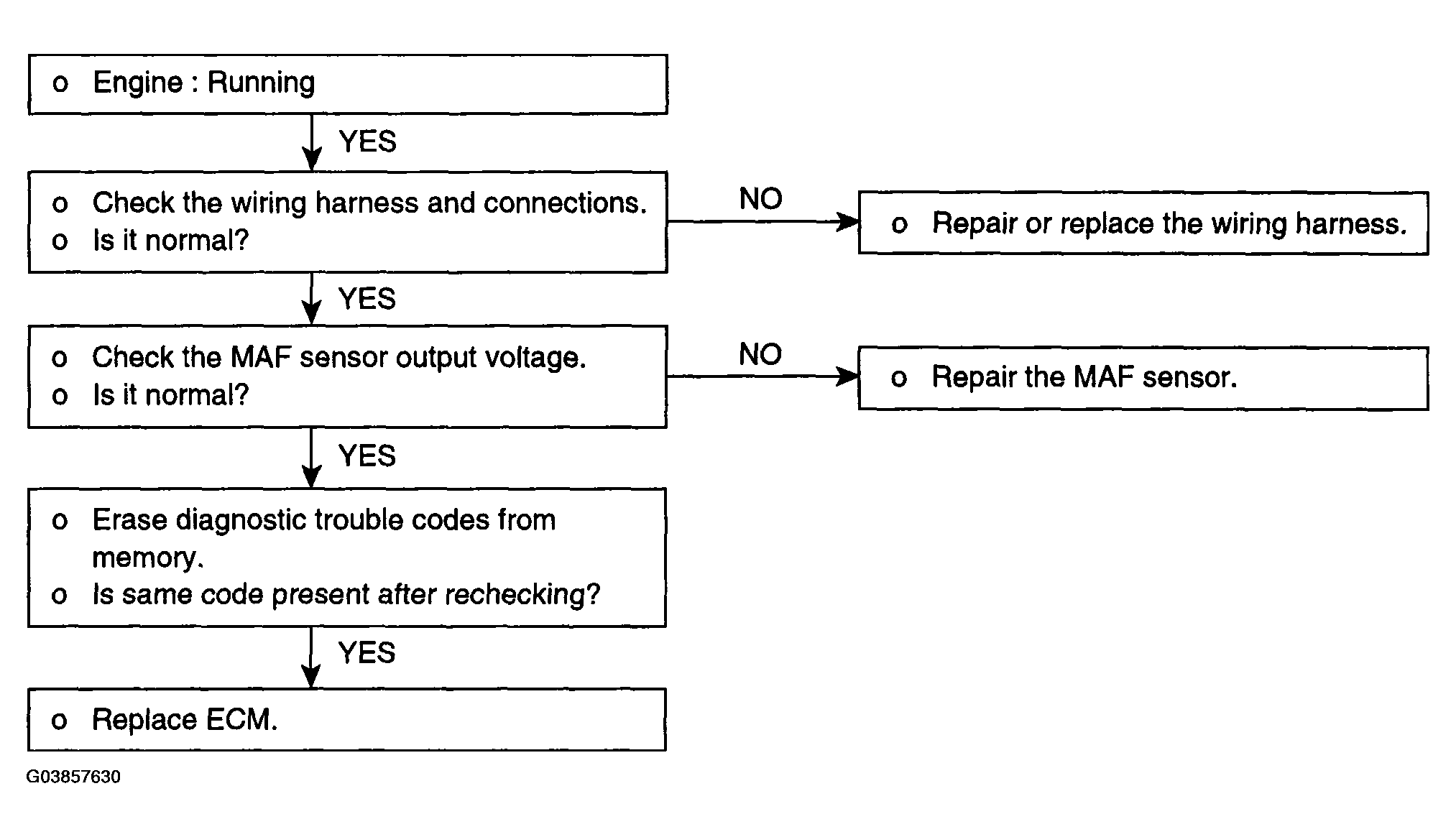

Fig 1: MAF Troubleshooting Procedures Chart
Courtesy of HYUNDAI MOTOR CO.
