System Block Diagram: Notes

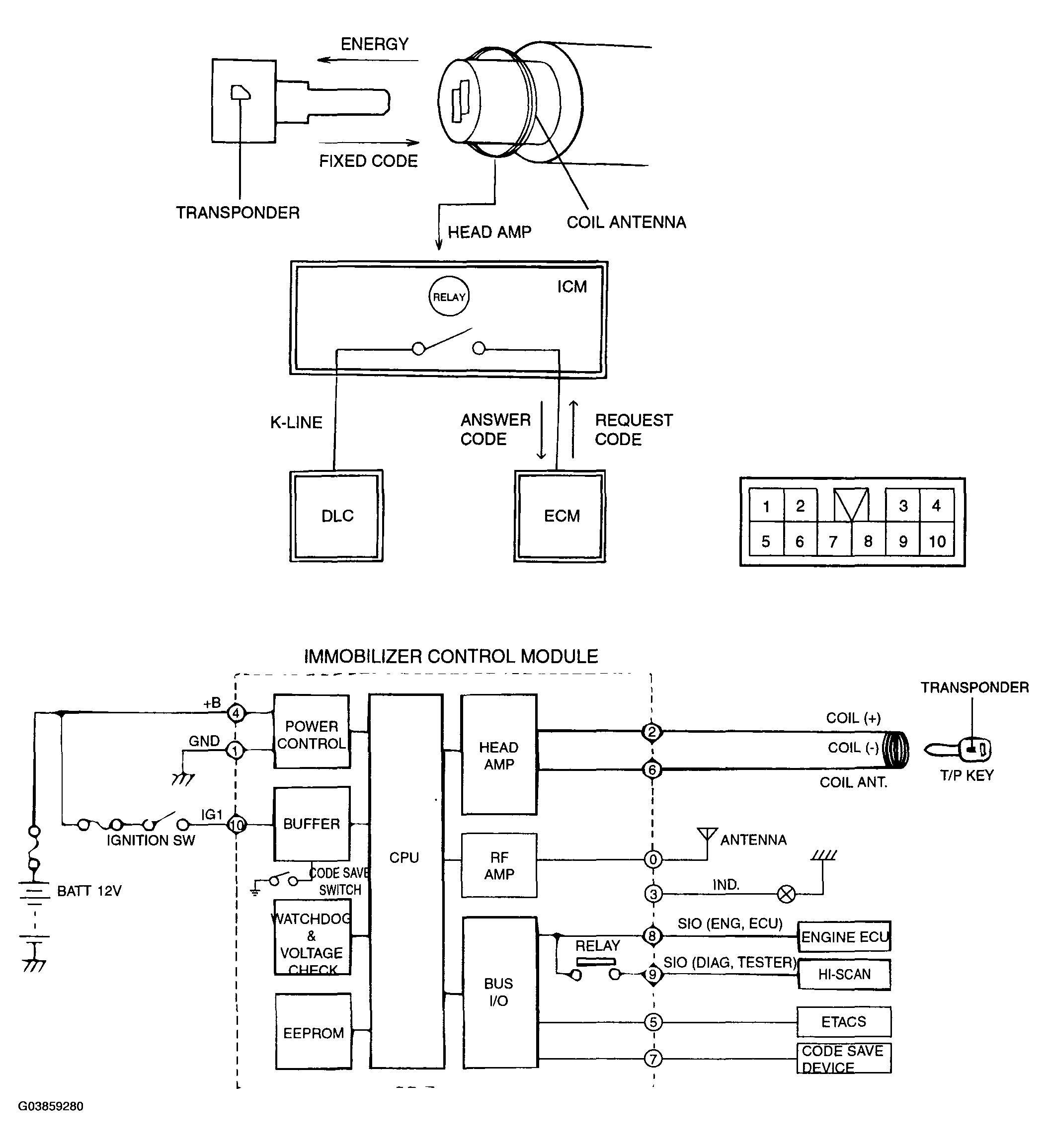

Fig 1: Immobilizer Control System Block Diagram
G03859280Courtesy of HYUNDAI MOTOR CO.
