Immobilizer Control Module: Removal

  1. Remove the center facia panel using a screwdriver and disconnect the switch connectors.

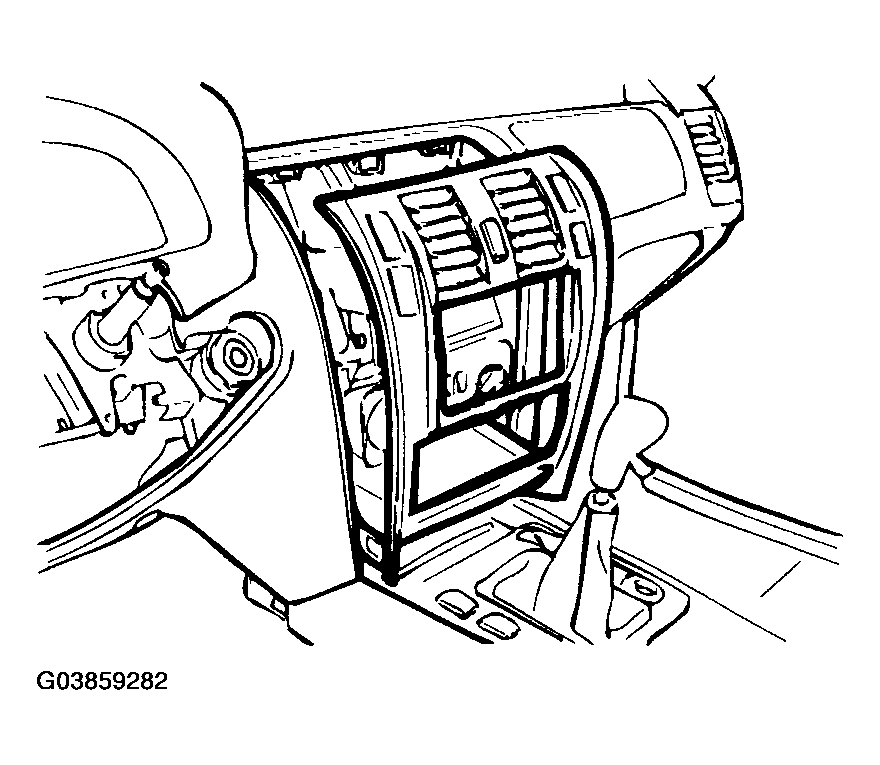

    Fig 1: Removing Center Facia Panel
    G03859282Courtesy of HYUNDAI MOTOR CO.
  2. Remove the audio unit.

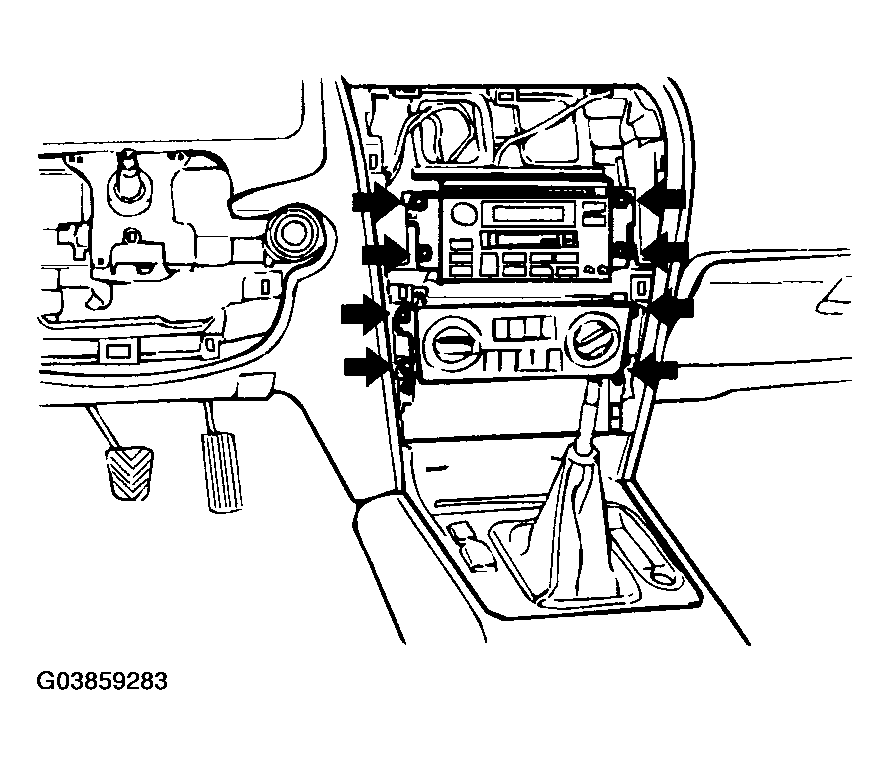

    Fig 2: Removing Audio Unit
    G03859283Courtesy of HYUNDAI MOTOR CO.
  3. Remove the flange nuts holding the ICM (Immobilizer Control Module) from left hand center facia support bracket.

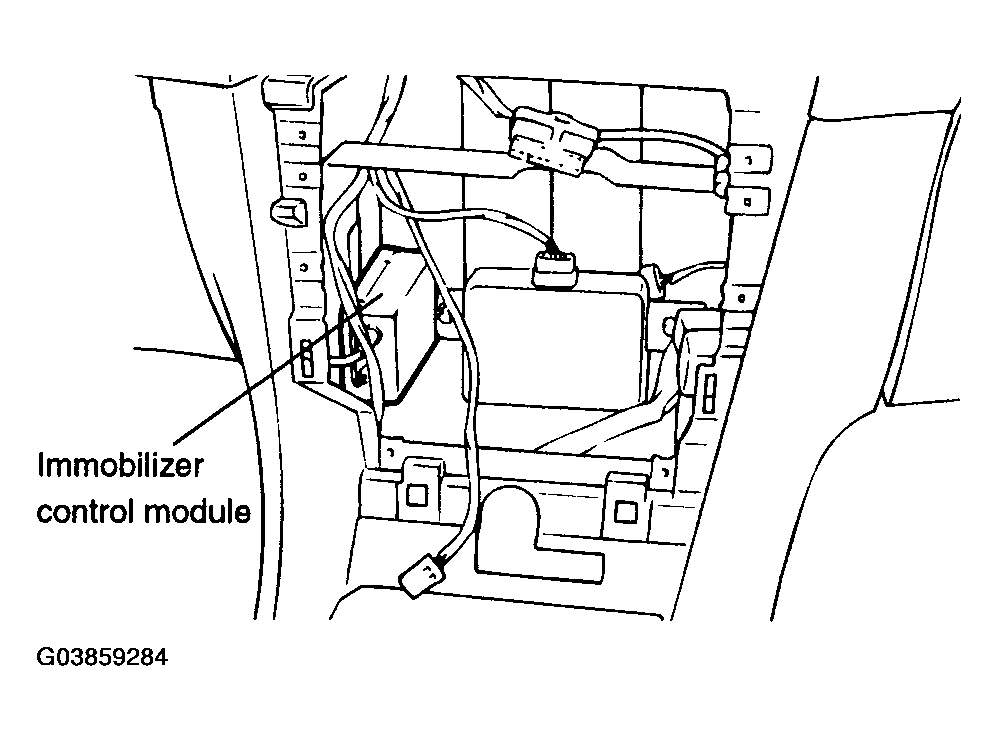

    Fig 3: Identifying Immobilizer Control Module Location
    G03859284Courtesy of HYUNDAI MOTOR CO.
