Engine Coolant Temperature Sensor (ECTS)
>>
Troubleshooting Procedures
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Troubleshooting Procedures

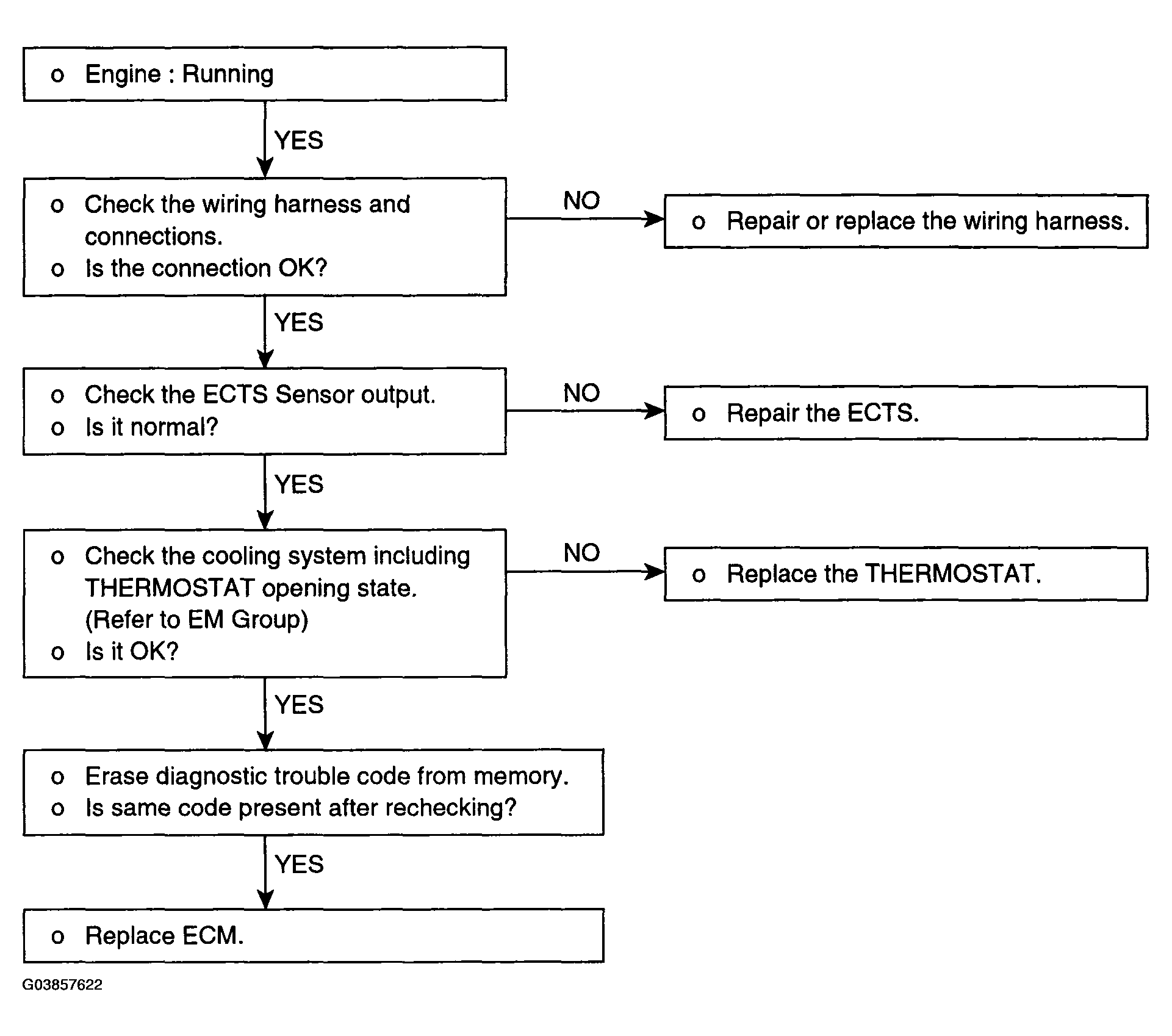

Fig 1: Troubleshooting Procedures Chart
Courtesy of HYUNDAI MOTOR CO.
