Charging System: Generator: Replacement

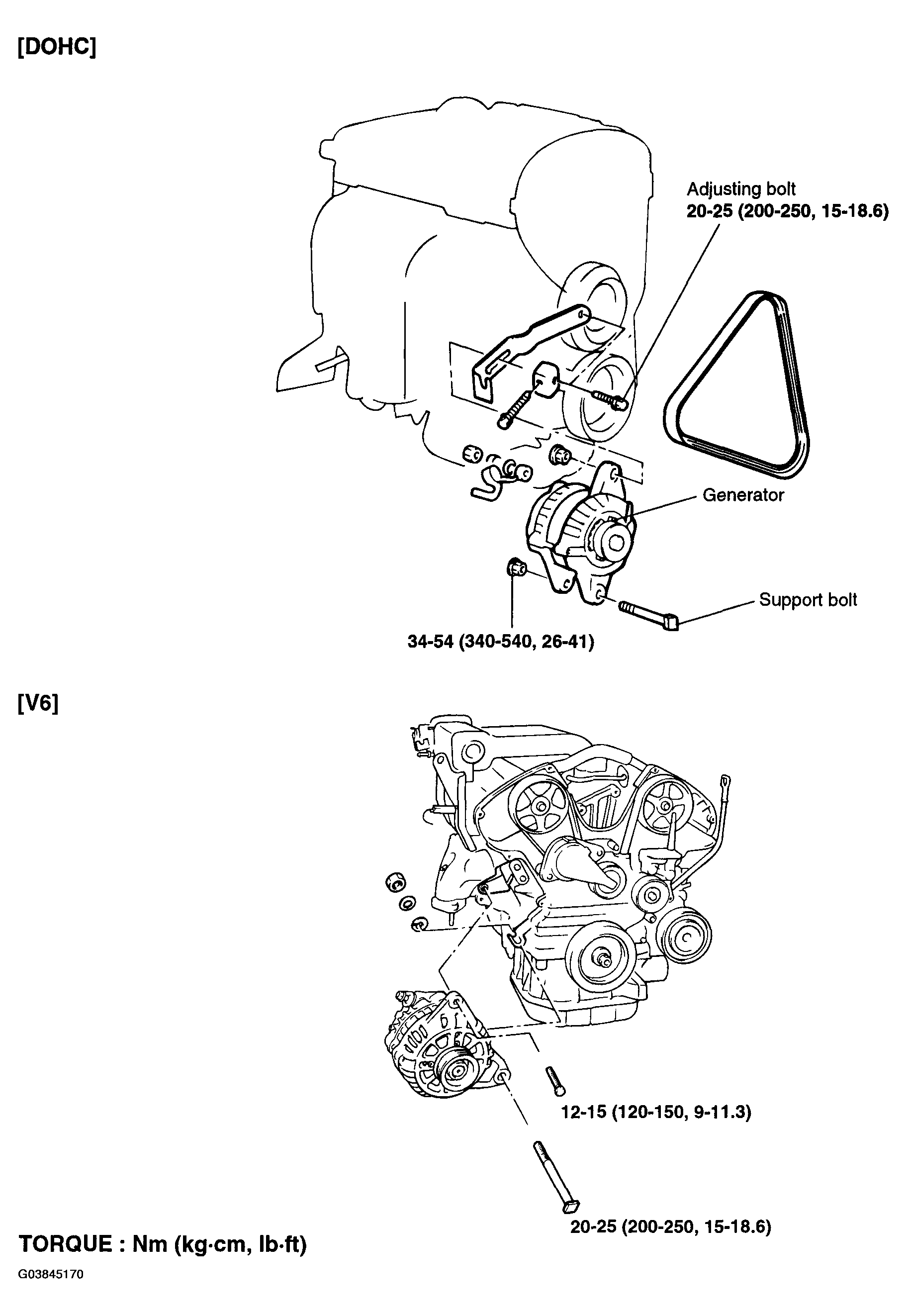

Fig 1: Removing/Installing Generator With Torque Specifications
G03845170Courtesy of HYUNDAI MOTOR CO.
