Sunroof / Moonroof Module: Testing and Inspection
SUNROOF CONTROLLERINSPECTION
1. Disconnect the 8P connector (A) and (B) from the sunroof controller(C).

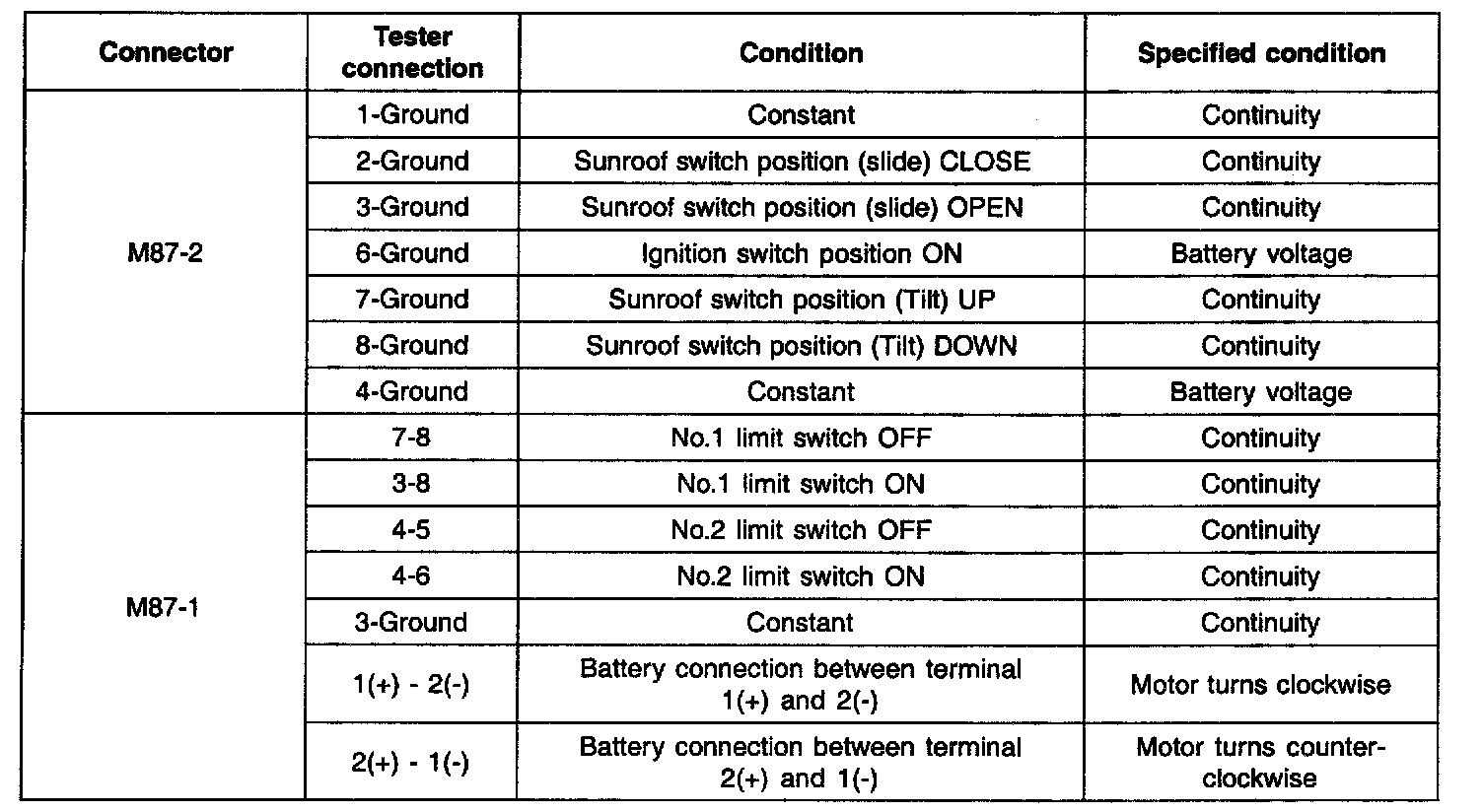

2. Inspect the connectors on the wire harness side, as shown in the chart.
INSPECTION
1. Disconnect the 8P connector (A) and (B) from the sunroof controller(C).
2. Inspect the connectors on the wire harness side, as shown in the chart.
