Hyundai
>>
2005
>>
Santa Fe GLS, 2.7 D, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System (G6BA-GSL 2.7)
>>
Gasoline Engine Control System
>>
Knock Sensor (KS)
>>
Knock Sensor
>>
Troubleshooting Procedures
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Troubleshooting Procedures

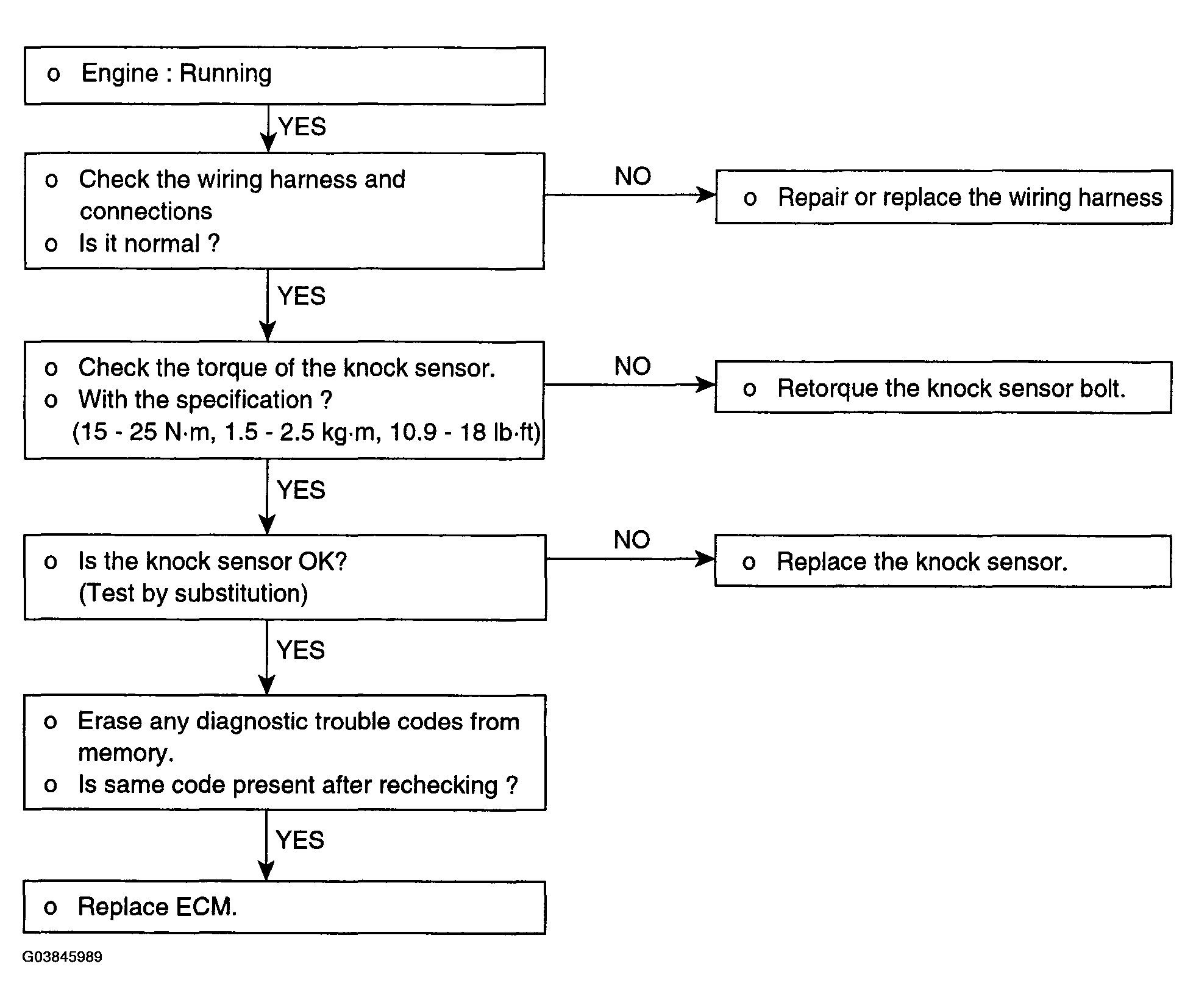

Fig 1: Troubleshooting Flow Chart
Courtesy of HYUNDAI MOTOR CO.
