Hyundai
>>
2005
>>
Elantra GT, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System
>>
DTC Troubleshooting Procedures
>>
DTC P0036: Ho2S Heater Control Circuit (Bank 1 / Sensor 2)
>>
Signal Waveform
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform

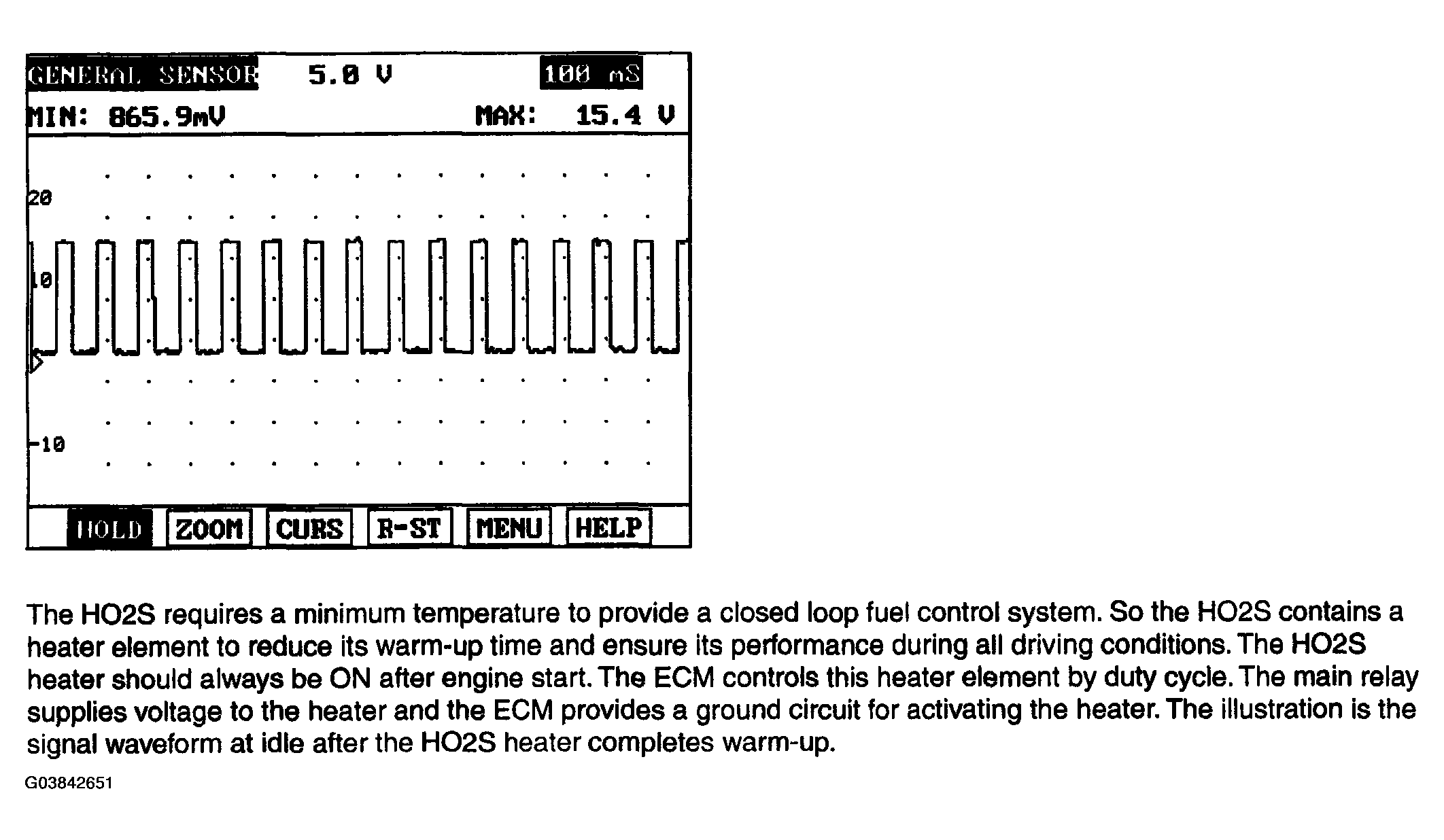

Fig 1: Heated Oxygen Sensor Oscilloscope Waveform Signal Graph
Courtesy of HYUNDAI MOTOR CO.
