ATM Control Cable Replacement: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the control cable to transaxle range switch mounting nut. (see the TRANSAXLE RANGE SWITCH REPLACEMENT ).
  2. Remove the clip of the control cable.
  3. Remove the console (Screw : 6EA)
  4. Remove the control cable pin.
  5. Remove the clip of the control cable by pressing it with the driver.
  6. Remove the control cable mounting nuts(A).

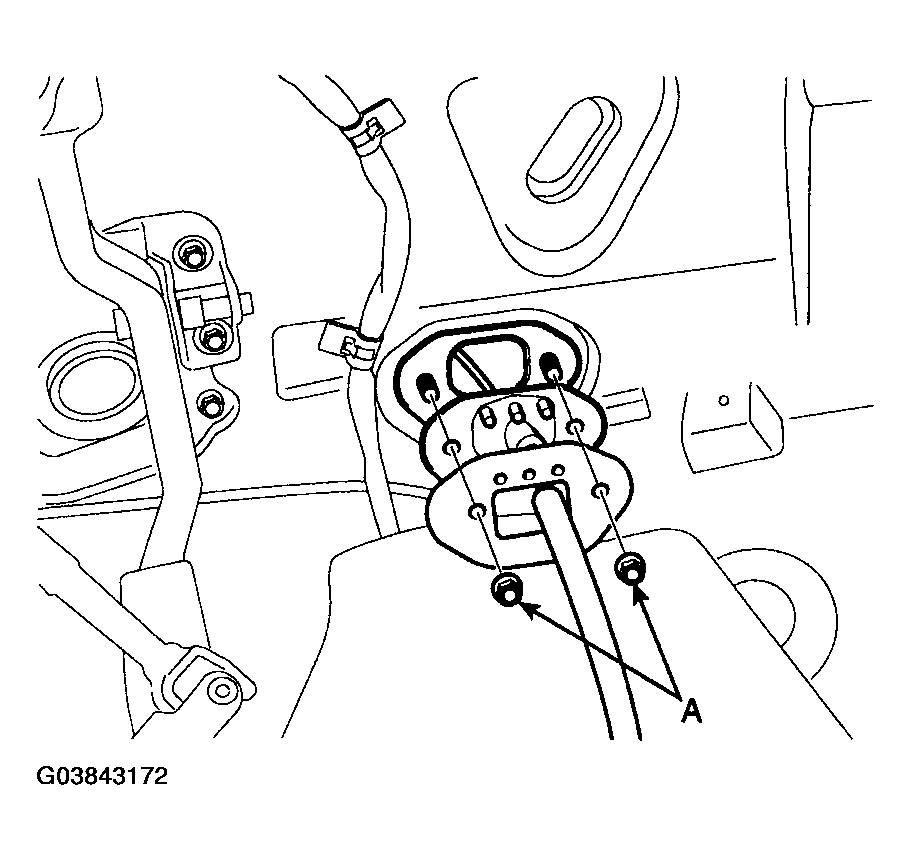

    Fig 1: Removing Control Cable Mounting Nuts
    G03843172Courtesy of HYUNDAI MOTOR CO.
  7. Remove the mounting bolts of the cable of the lower dashboard side to remove the cable.
