Automatic Transaxle System: Components

WARNING: This page is about a different variant/trim than selected.

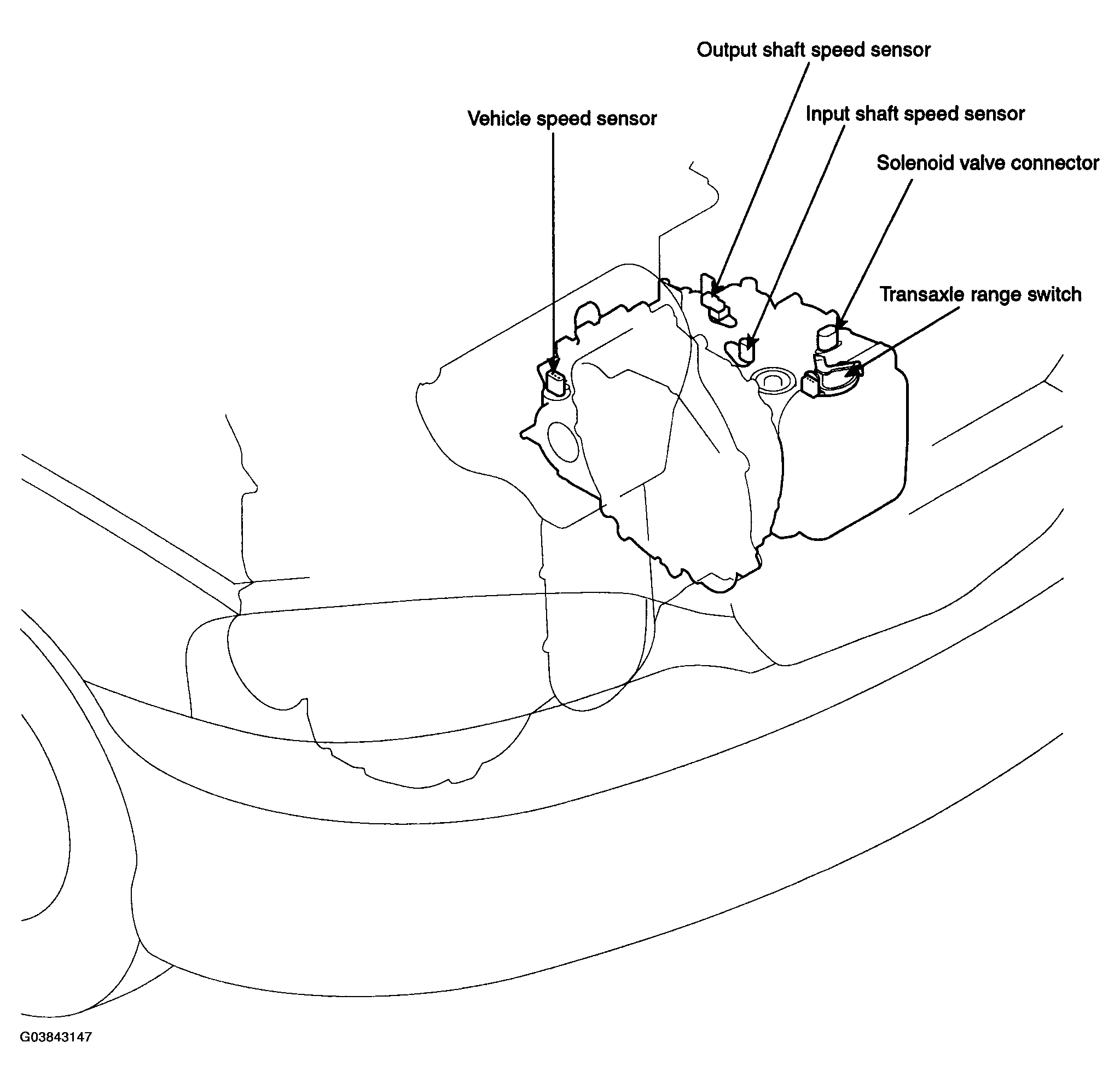

Fig 1: Identifying Components

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Identifying Transaxle Range Switch

Courtesy of HYUNDAI MOTOR CO.

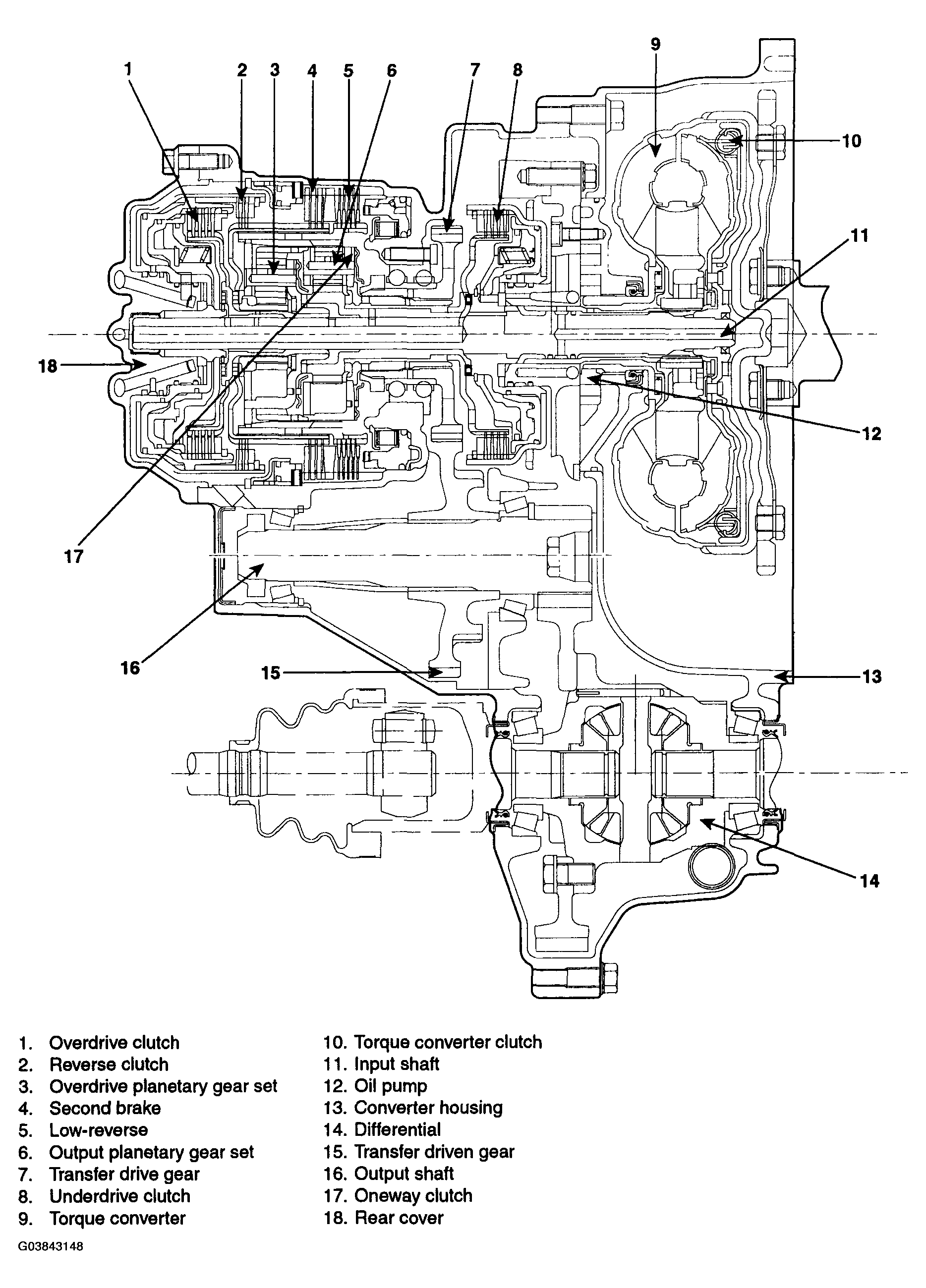

Fig 3: Identifying Overdrive Clutch And Torque Convertor

Courtesy of HYUNDAI MOTOR CO.
