Elantra GLS, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System
>>
DTC Troubleshooting Procedures
>>
DTC P2414: Ho2S Exhaust Sample Error-Bank 1 Sensor 1
>>
Schematic Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Schematic Diagram

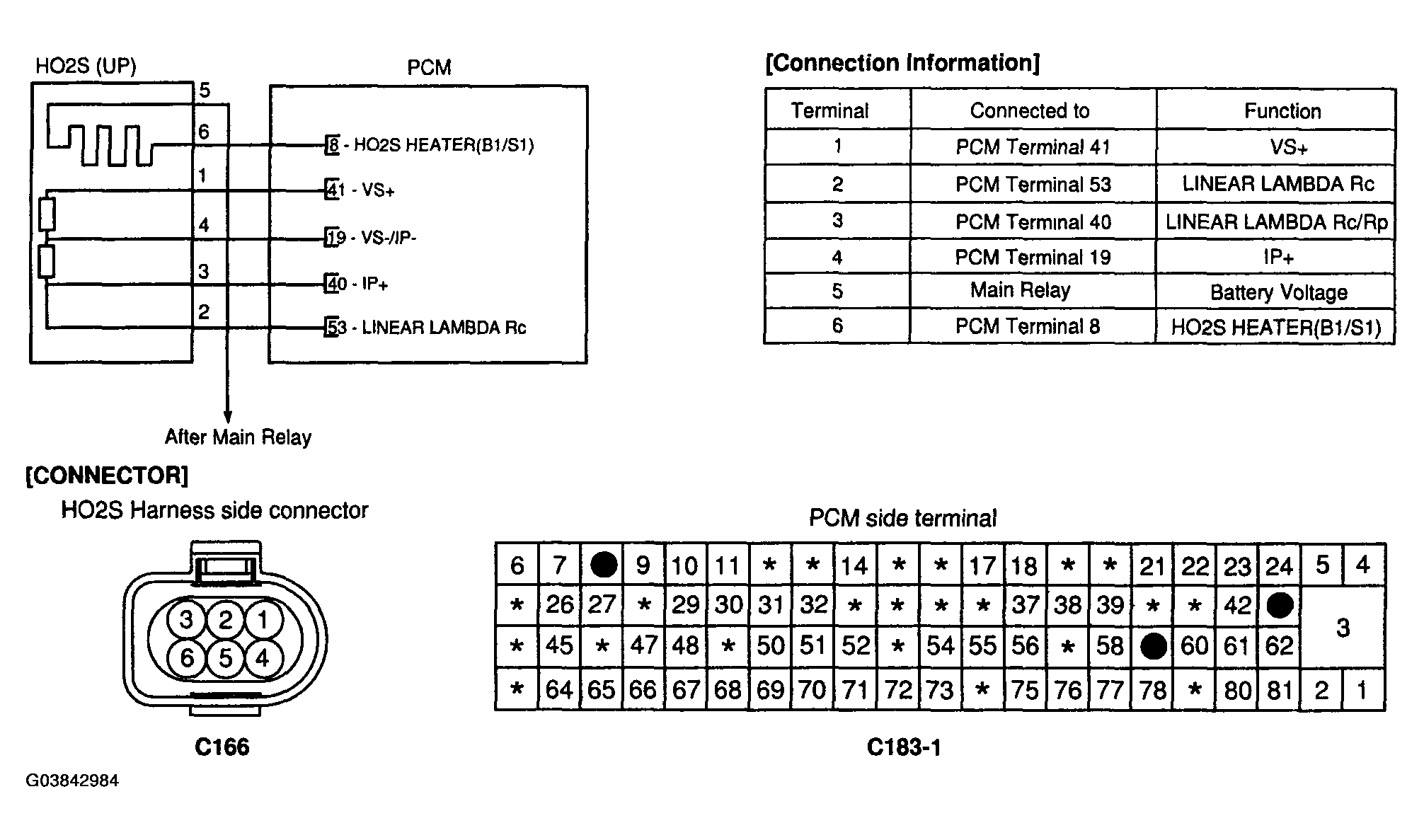

Fig 1: Linear O2 Sensor Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
