Hyundai
>>
2005
>>
Elantra GLS, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System
>>
DTC Troubleshooting Procedures
>>
DTC P2270: O2 Sensor Signal Stuck Lean (Bank 1 / Sensor 2)
>>
Schematic Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Schematic Diagram

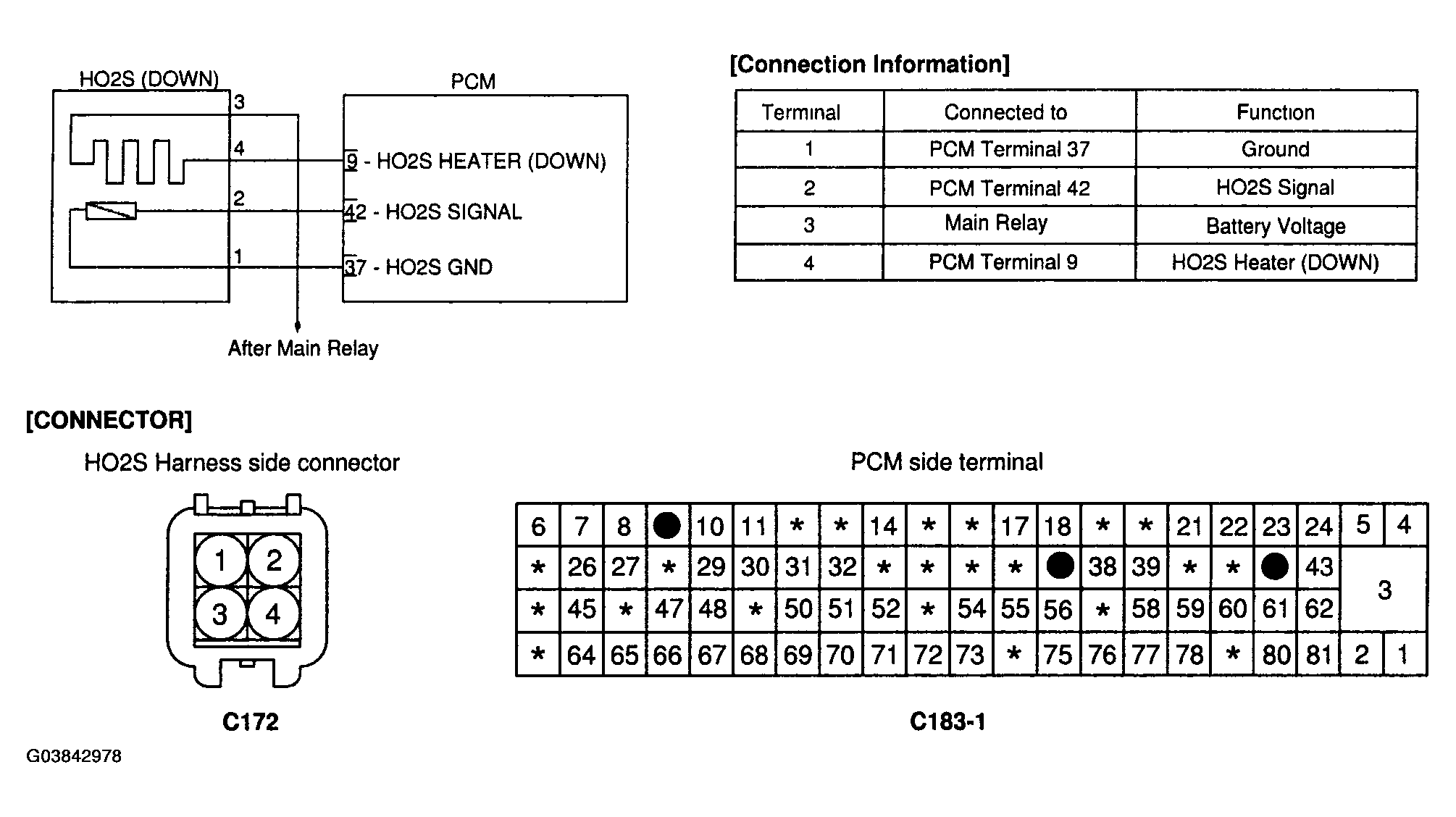

Fig 1: HO2S Signal Circuit Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
