Power Supply Circuit Inspection

Ignition "ON" & Engine "OFF".
Measure voltage between terminal 1 of the CCV harness connector and chassis ground.
Specification : Approx. B+

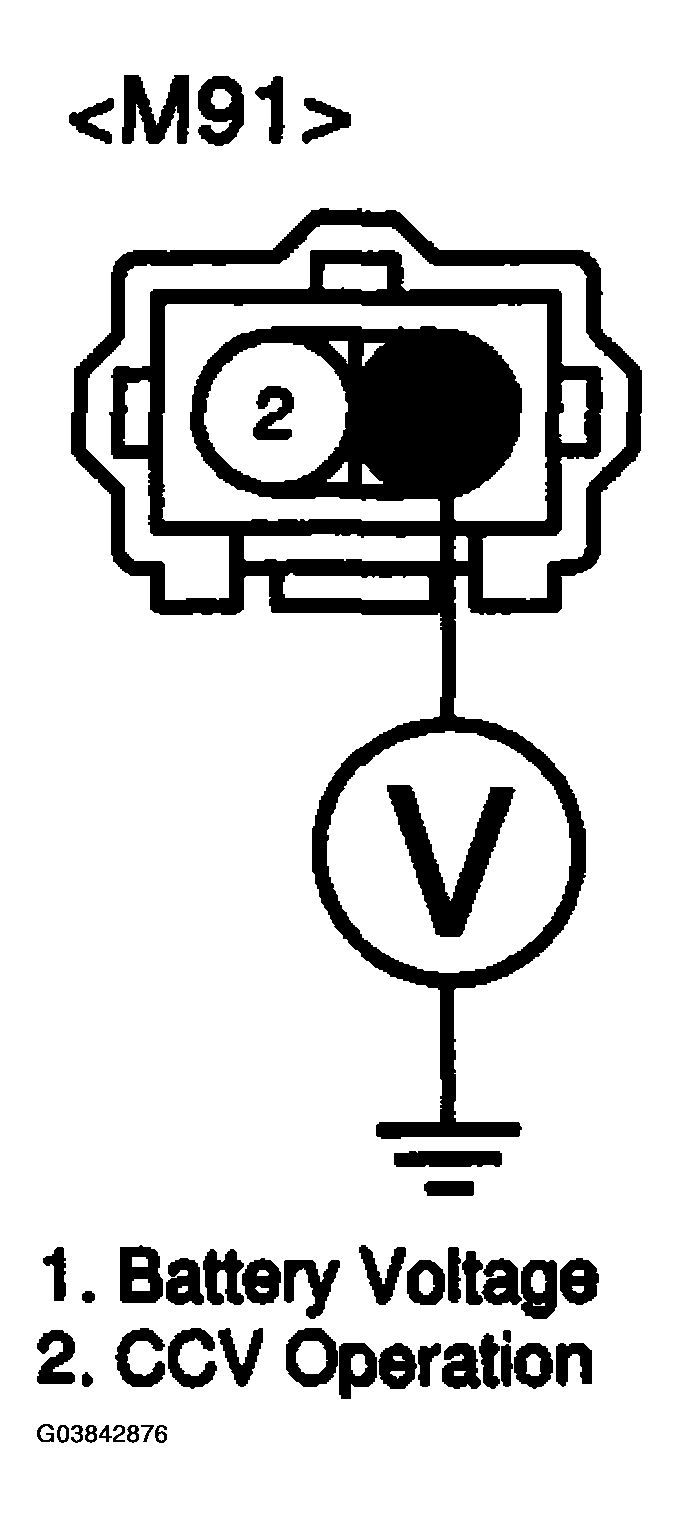

Fig 1: Measuring Voltage Between Terminal 1 Of CCV Harness Connector And Chassis Ground (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

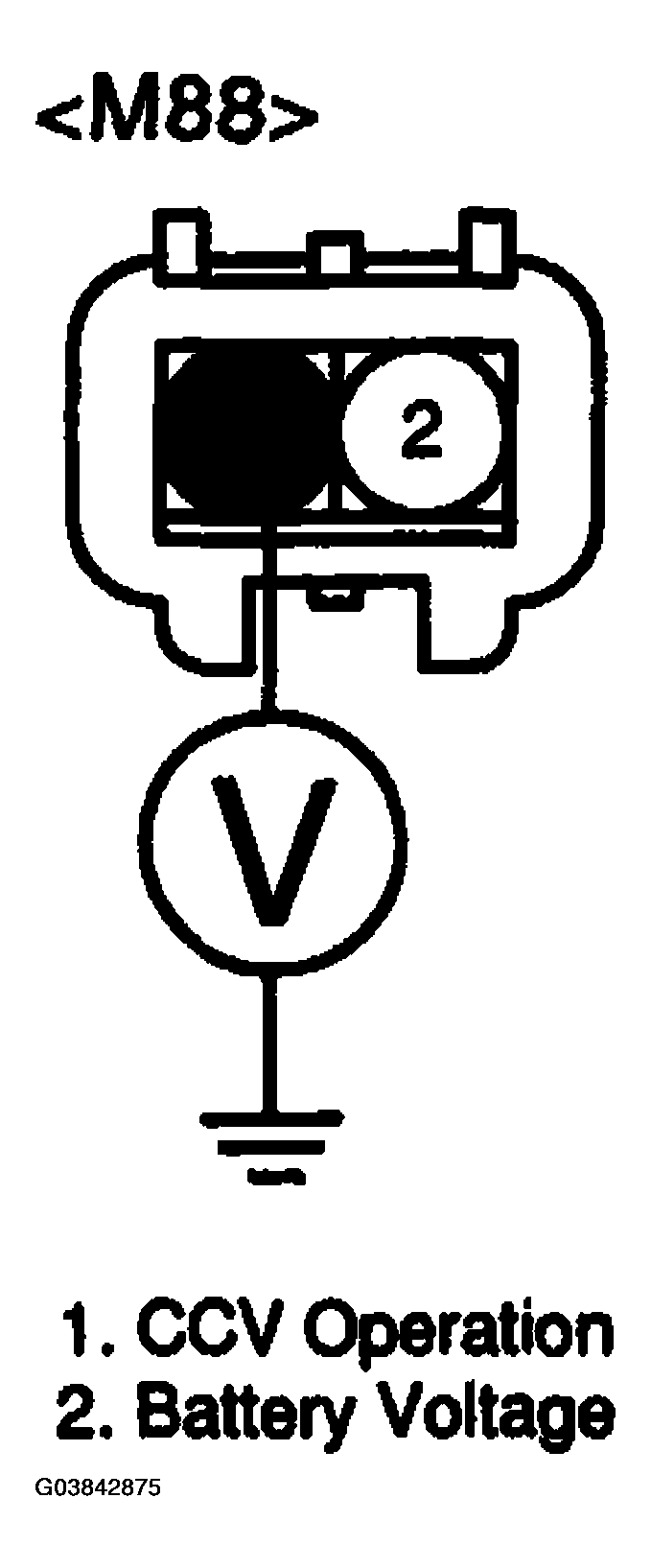

Fig 2: Measuring Voltage Between Terminal 1 Of CCV Harness Connector And Chassis Ground (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Is voltage within the specification?
YES
- Go to CONTROL CIRCUIT INSPECTION procedure.
NO
- Check for a open in the power supply circuit. Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR procedure.
