DTC P0136: Ho2S Circuit (Bank 1/ Sensor 2)
>>
Schematic Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Schematic Diagram

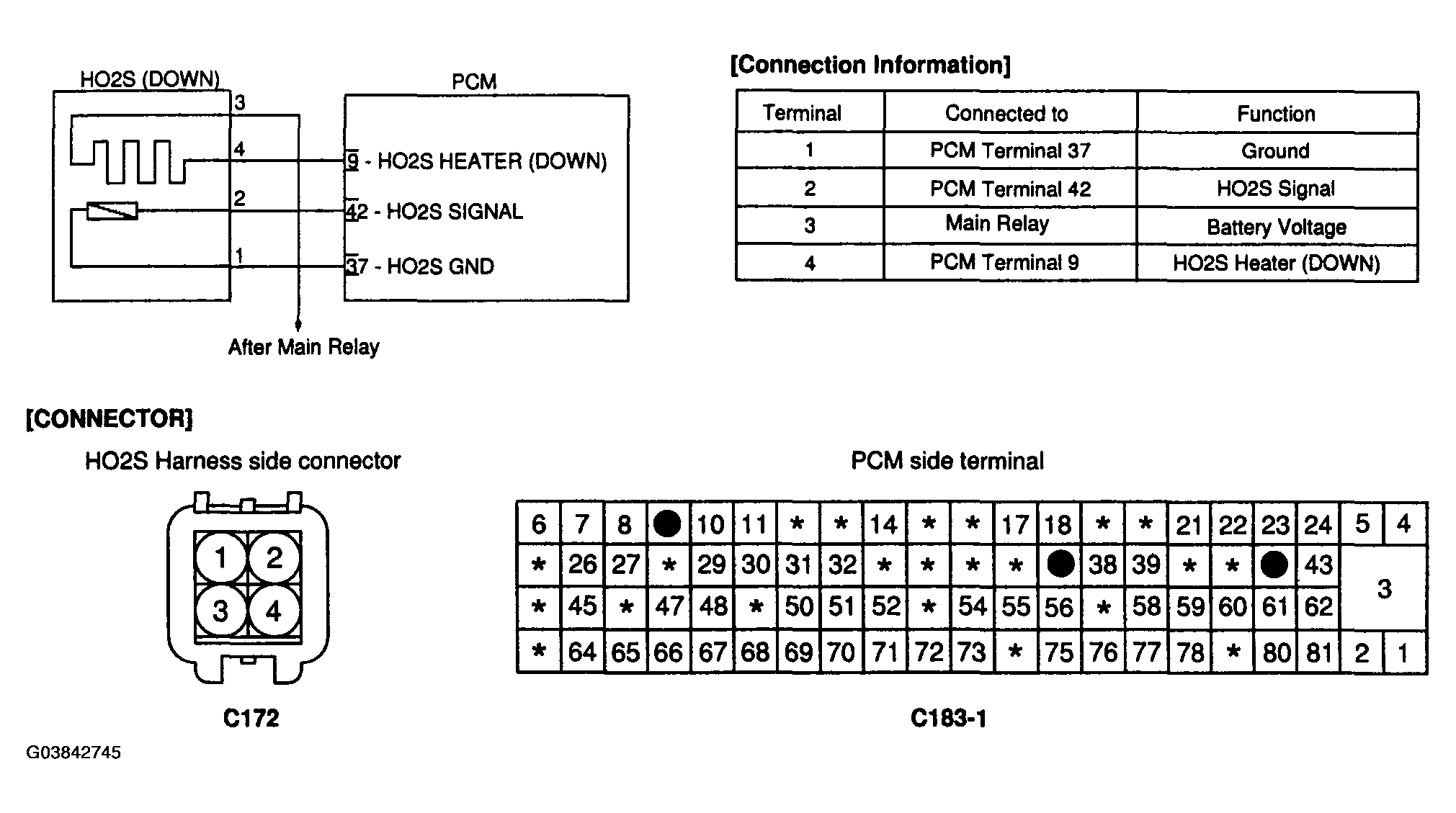

Fig 1: Rear Heated Oxygen Sensor Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
