Monitor SCANTOOL Data

  1. Ignition "ON" & Engine "OFF".
  2. Disconnect ECTS connector.
  3. Connect Scantool and monitor the "COOLANT TEMP. SNSR(V)" parameter on the Scantool data list.

    Specification : Approx. 5V

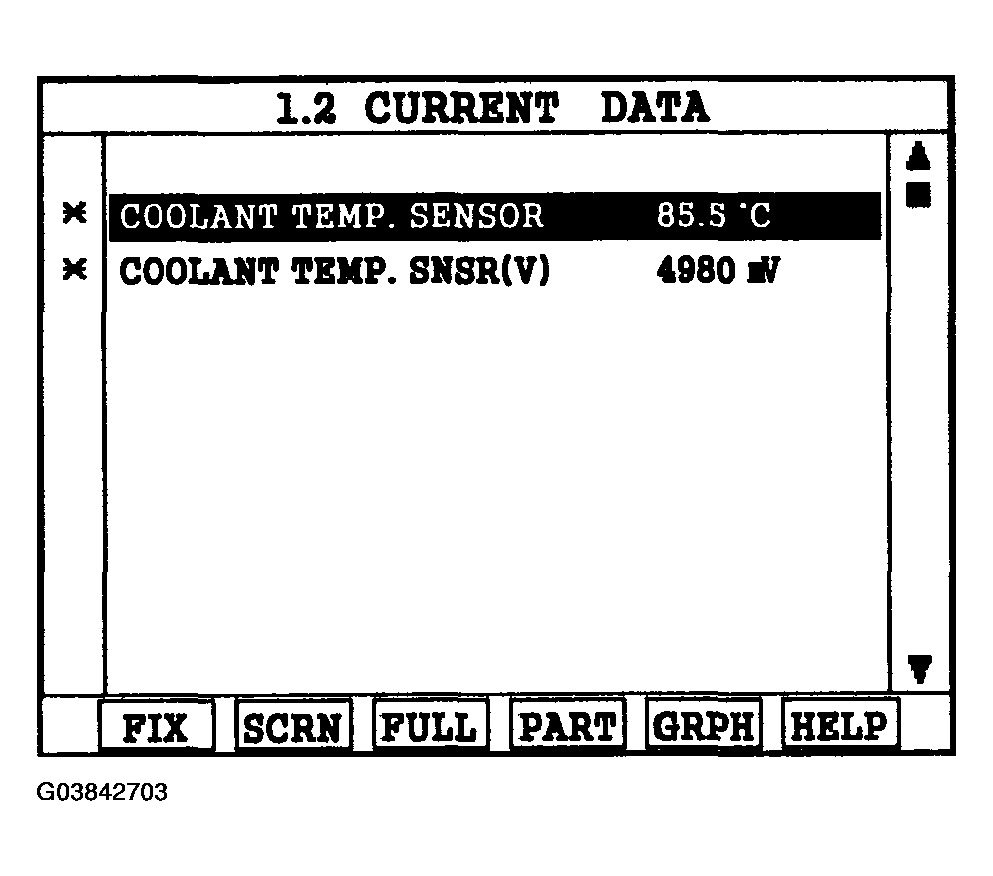

    Fig 1: Scantool Data Monitor List
    G03842703Courtesy of HYUNDAI MOTOR CO.
  4. Is ECTS parameter near the specified value?

    YES

    NO

    • Possibility of signal circuit short to ground. Go to next step as below.
