DTC P1723: A/T Control Relay: Notes

DTC SPECIFICATIONS

DTC Diagnostic item
P1723 A/T control relay Short to ground, open

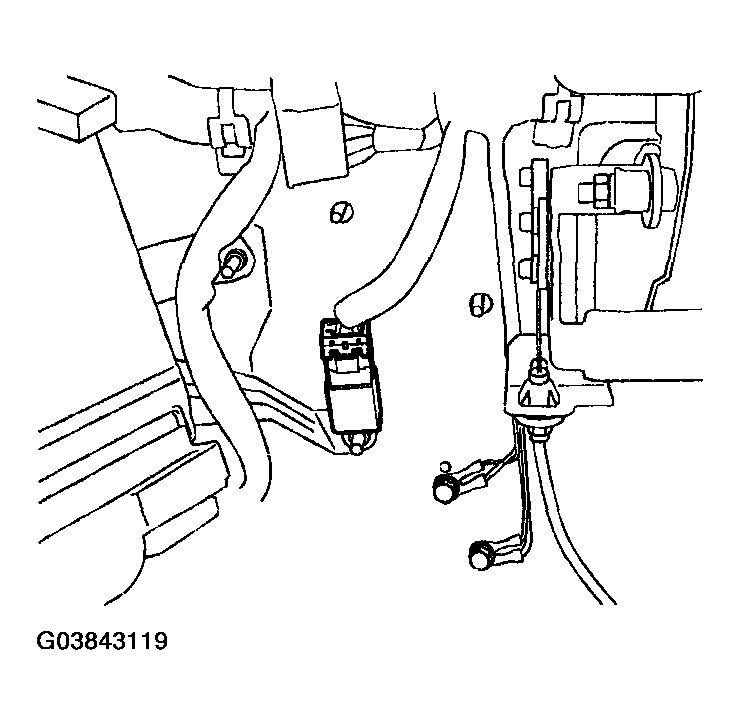

Fig 1: Identifying Connector
G03843119Courtesy of HYUNDAI MOTOR CO.
Fig 2: DTC Voltage And Time Graph
G03843120Courtesy of HYUNDAI MOTOR CO.
