Vehicle Speed Sensor: Testing and Inspection





VEHICLE SPEED SENSOR
The vehicle speed sensor is a hall effect sensor that is attached on the output shaft of transaxle. The sensor converts the transaxle gear revolutions into a pulse signal which is sent to the ECM.

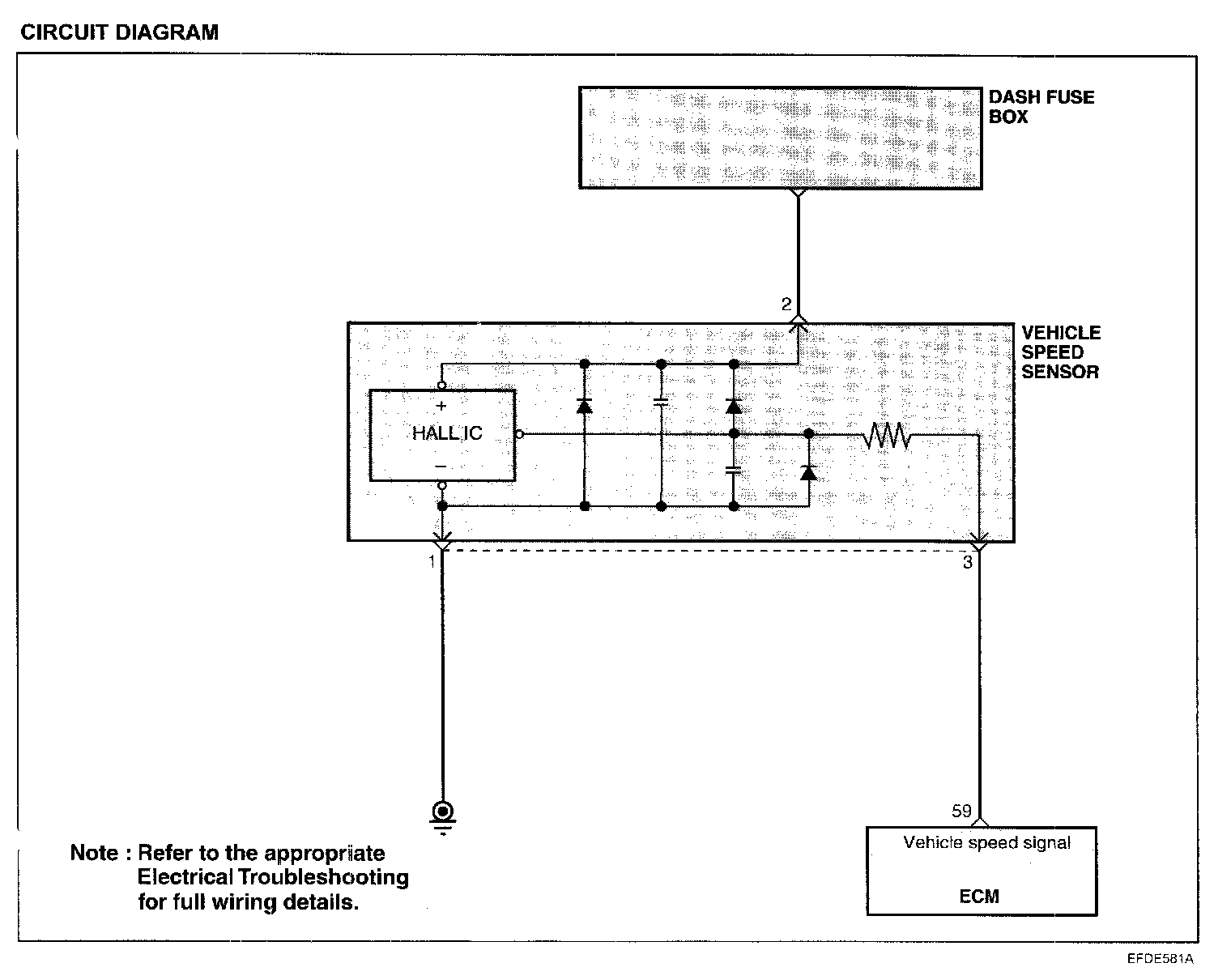

Circuit Diagram:

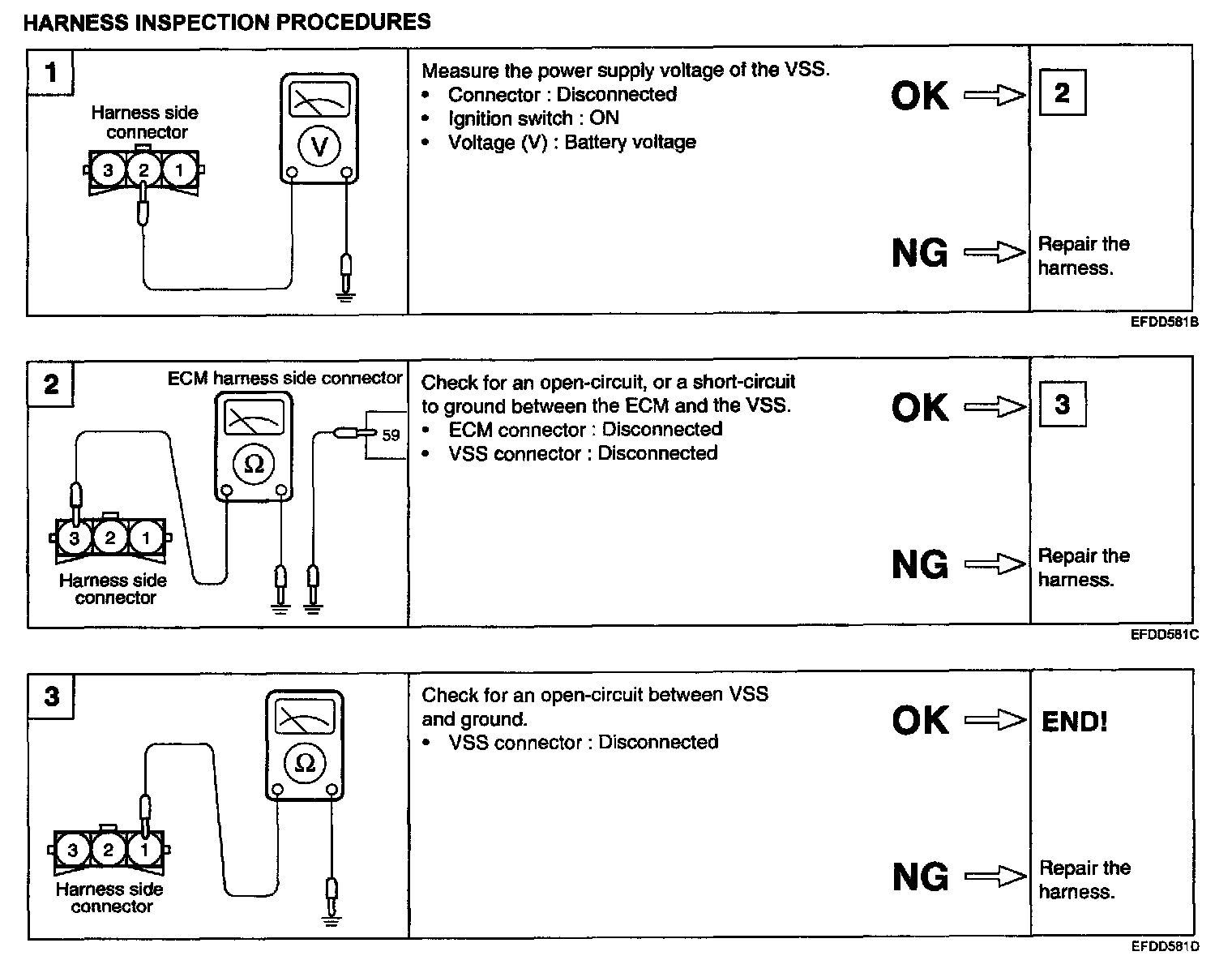

Harness Inspection Procedures:






TROUBLESHOOTING HINTS
If there is an open or short circuit in the vehicle speed sensor signal circuit,the engine may stall when the vehicle decelerates to a stop.
