Rough Road Sensor: Testing and Inspection





ACCELERATION SENSOR
The acceleration sensor is used to sense rough road conditions. The sensors signal is used by the Engine Control Module (ECM) to prevent wrongful misfire detection.

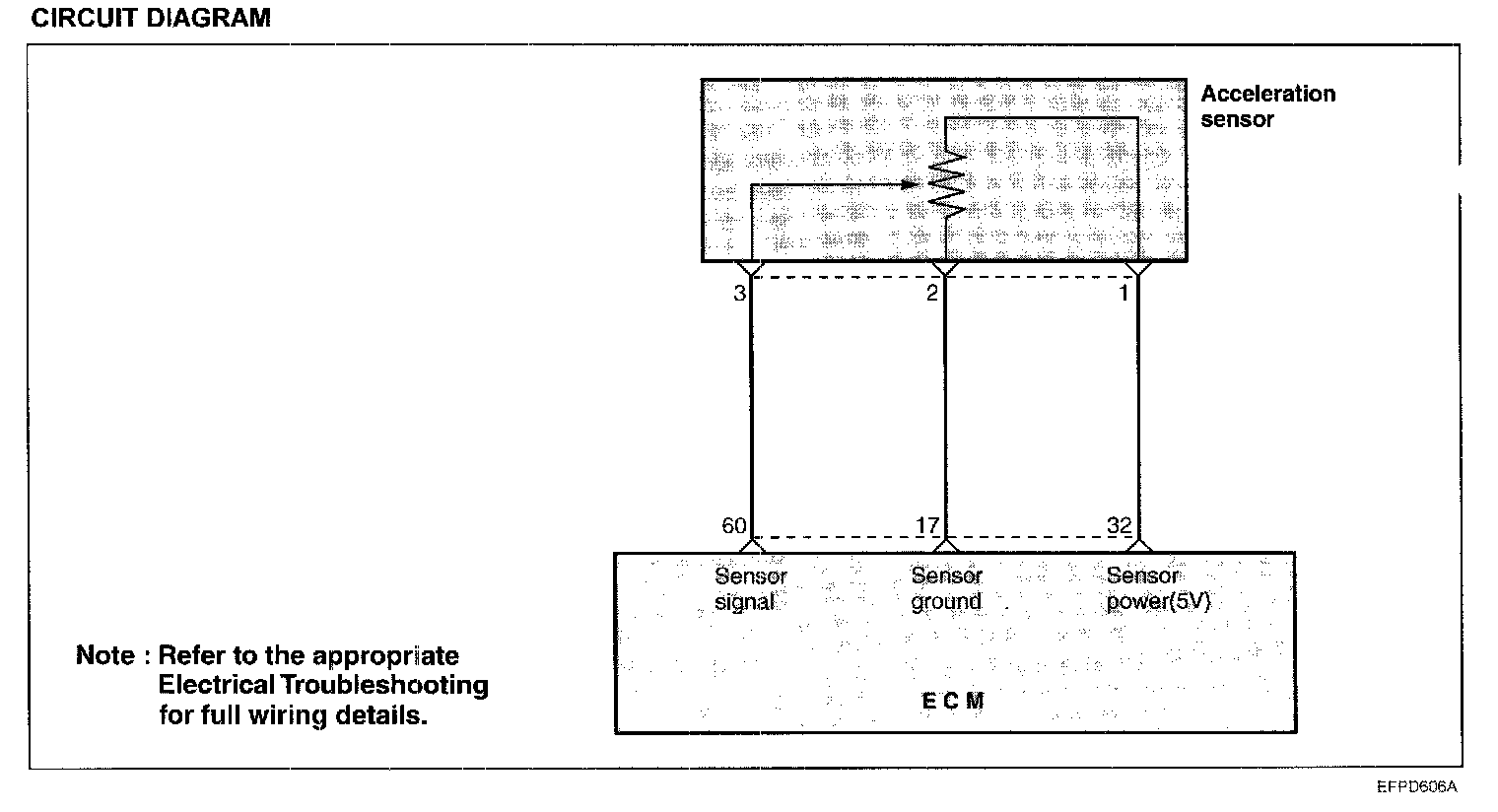

Circuit Diagram:






Using Voltameter:

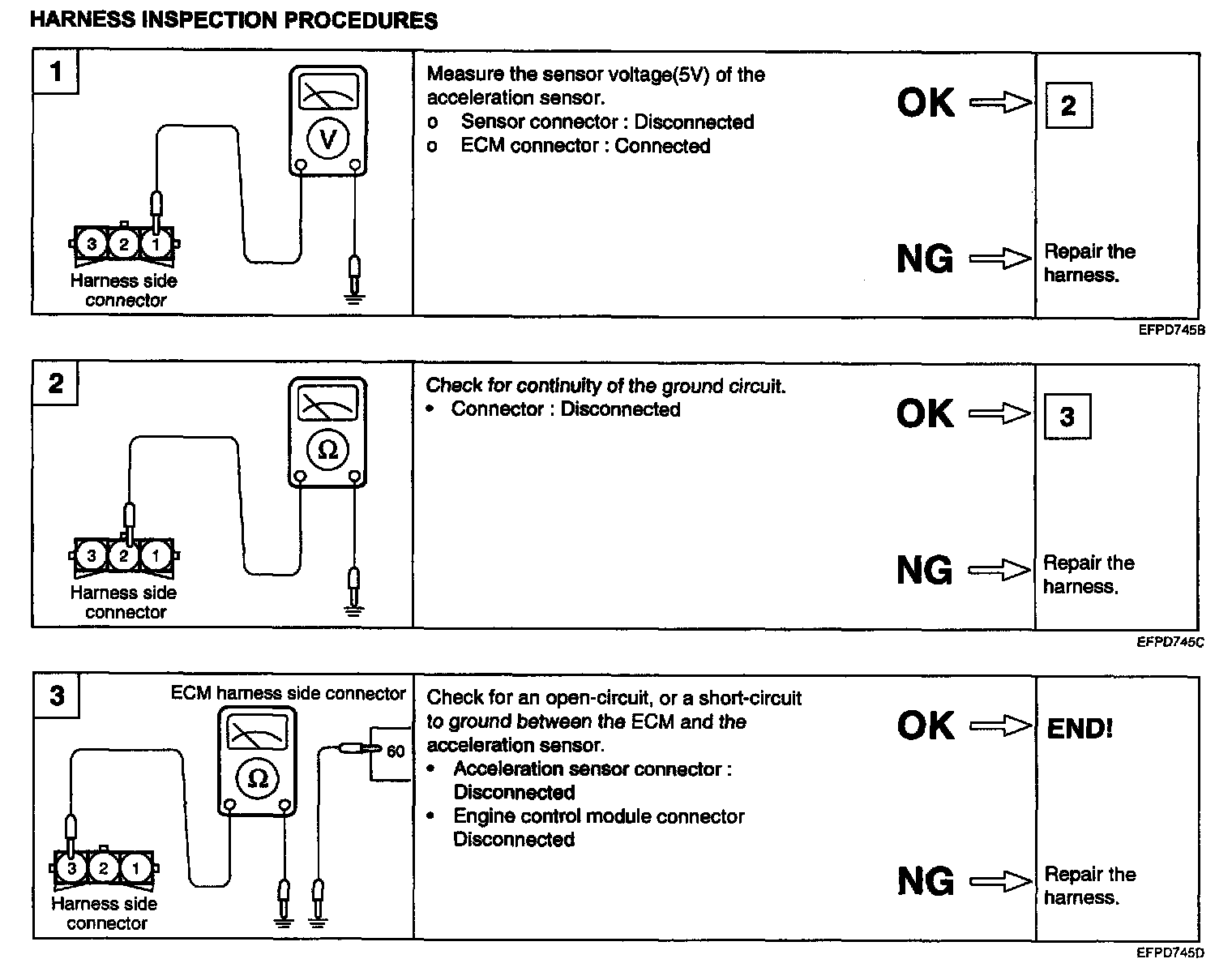

Harness Inspection Procedures:
